Product details

RDK S600

Components

D-Robotics

RDK S600

About this product

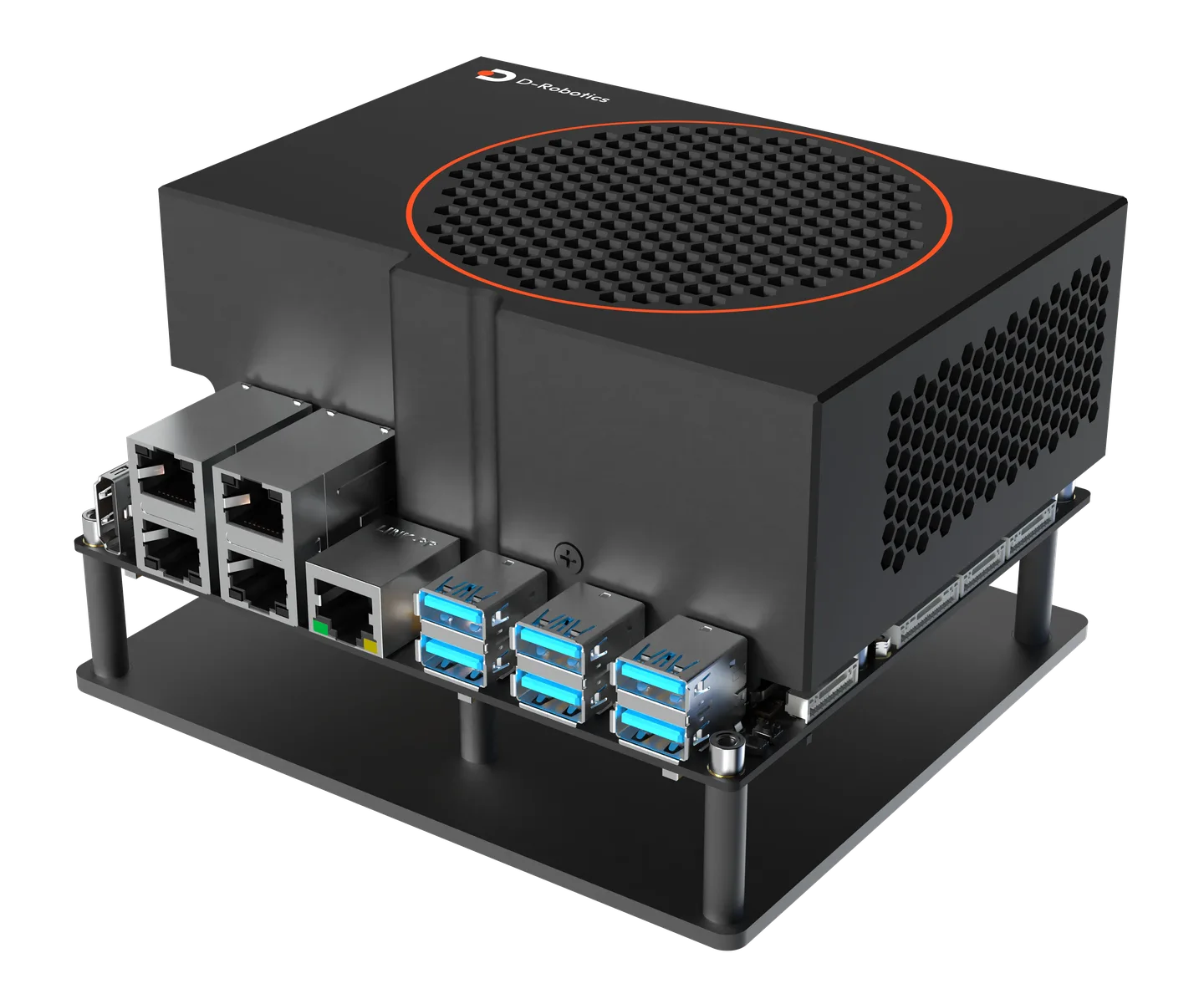

RDK S600 is a development kit for embodied AI and advanced robot computing. It combines an 18-core Cortex-A78AE CPU, a 560 TOPS BPU and six Cortex-R52+ real-time MCU cores. Multi-camera inputs, high-speed networking, USB, CAN and MCU expansion support perception, edge large-model inference and control integration. The kit is distinct from the bare RDK S600 Module, whose external ports depend on a carrier design.

Model
RDK S600
Category
Components, Robot Control Boards and Computing Components

Specifications & evidence

Source-backed claims. Configuration, workload and evidence type matter when comparing products.

Ai performance

560 TOPS

Manufacturer specification

Qualifier: Manufacturer stated BPU capability; no unstated benchmark, precision or runtime assumed.

drobotics-official-portfolio-dates
Shared capabilities: 18×Cortex-A78AE, 560 TOPS, 6×Cortex-R52+ MCU, 32/64GB LPDDR5, 4×ISP, and aggregate H.264/H.265 throughput of 4K@240.

Can interfaces

4 × main-domain CAN plus 5 × MCU CAN

Manufacturer specification

Qualifier: RDK S600 development kit column.

drobotics-official-portfolio-dates
CAN and MCU 4×main-domain CAN + 5×MCU CAN, plus MCU expansion 4×main CAN; MCU domain provides CAN FD, LIN, PWM, ADC, and more

Cpu

18 Arm Cortex-A78AE cores

Manufacturer specification

drobotics-official-portfolio-dates
Shared capabilities: 18×Cortex-A78AE, 560 TOPS, 6×Cortex-R52+ MCU, 32/64GB LPDDR5, 4×ISP, and aggregate H.264/H.265 throughput of 4K@240.

Dimensions

140 × 123 × 78 mm

Manufacturer specification

Qualifier: Development kit dimensions.

drobotics-official-portfolio-dates
RDK S600 Embodied AI development kit 140×123×78 mm Released for sale in Jun 2026

Ethernet

2 × 1 GbE plus 2 × 10 GbE

Manufacturer specification

Qualifier: Development kit physical ports.

drobotics-official-portfolio-dates
USB and network 6×USB3 Host; 2×1GbE + 2×10GbE Public native item: 1×USB2; network resources and ports depend on carrier

Image signal processors

4 ISP

Manufacturer specification

Qualifier: Development kit resources; external camera connector count not inferred.

drobotics-official-portfolio-dates
Vision Multi-camera MIPI and 4×ISP 6×4-lane MIPI RX and 4×ISP

Memory

32 GB or 64 GB LPDDR5

Manufacturer specification

drobotics-official-portfolio-dates
Shared capabilities: 18×Cortex-A78AE, 560 TOPS, 6×Cortex-R52+ MCU, 32/64GB LPDDR5, 4×ISP, and aggregate H.264/H.265 throughput of 4K@240.

Real time mcu

6 × Arm Cortex-R52+ cores

Manufacturer specification

Qualifier: S600 platform compute resources.

drobotics-official-portfolio-dates
Shared capabilities: 18×Cortex-A78AE, 560 TOPS, 6×Cortex-R52+ MCU, 32/64GB LPDDR5, 4×ISP, and aggregate H.264/H.265 throughput of 4K@240.

Release date

2026-06

Manufacturer specification

Date precision: month; Event: commercial release; Qualifier: Manufacturer retrospective portfolio explicitly identifies release/sale month; no exact day inferred.

drobotics-official-portfolio-dates
RDK S600 Embodied AI development kit 140×123×78 mm Released for sale in Jun 2026

Usb interfaces

6 × USB 3 Host

Manufacturer specification

Qualifier: Development kit physical ports; not bare Module resources.

drobotics-official-portfolio-dates
USB and network 6×USB3 Host; 2×1GbE + 2×10GbE Public native item: 1×USB2; network resources and ports depend on carrier

Video codec

H.264 / H.265 aggregate throughput of 4K at 240 fps

Manufacturer specification

Qualifier: Aggregate throughput; not a claimed single-camera frame rate.

drobotics-official-portfolio-dates
Shared capabilities: 18×Cortex-A78AE, 560 TOPS, 6×Cortex-R52+ MCU, 32/64GB LPDDR5, 4×ISP, and aggregate H.264/H.265 throughput of 4K@240.
