Product details

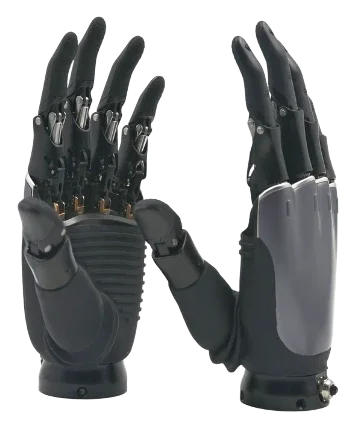

ROH-AP002

ROH-AP002 灵巧手

Dexterous Hand

OYMotion Technologies Co., Ltd.

ROH-AP002

About this product

ROH-AP002 is OYMotion's hybrid tactile and force-controlled dexterous hand for robotic manipulation and contact-data collection. The manufacturer describes normal and tangential force measurement on the fingers, supplemented by a palm pressure array, to provide feedback for compliant grasping. The detailed page lists a 626 ±5 g mass including the wrist, 24 V supply and UART, RS485 and CAN interfaces. ROS/ROS2 integration is supported. Its large lifting and single-finger load figures are structural or specified-posture ratings, and should not be interpreted as active fingertip force.

Model
ROH-AP002
Category
Dexterous Hand

Specifications & evidence

Source-backed claims. Configuration, workload and evidence type matter when comparing products.

Active degrees of freedom

6

Manufacturer specification

Manual version: V1.0.3; Measurement scope: As specified for this exact model in its current official manual

oy-ROH-AP002
ROH-AP002 dexterous hand features 11 movable joints, with 6 built-in motor drivers and motor control circuits, providing 6 active degrees of freedom. Equipped with a built-in PID motor control algorithm, it can simulate various human hand grasping operations. Each finger is fitted with a force sensor, enabling real-time monitoring and control of gripping force. Typical applications include robotic end-effectors, educational and research equipment, and bionic prosthetics, etc. ROH-AP002 dexterous hand with UART, RS485 or CAN physical interface, support SerialCtrl dedicated serial protocol, ModBus-RTU protocol and CAN protocol, can provide ROS / ROS2 platforms for secondary development with SDK.

Closing time

0.7 second

Manufacturer specification

Manual version: V1.0.3; Measurement scope: As specified for this exact model in its current official manual

oy-ROH-AP002
Bending/stretching time for full range at maximum speed 0.7 second

Communication interface

UART, RS485, CAN

Manufacturer specification

Manual version: V1.0.3; Measurement scope: As specified for this exact model in its current official manual

oy-ROH-AP002
ROH-AP002 dexterous hand features 11 movable joints, with 6 built-in motor drivers and motor control circuits, providing 6 active degrees of freedom. Equipped with a built-in PID motor control algorithm, it can simulate various human hand grasping operations. Each finger is fitted with a force sensor, enabling real-time monitoring and control of gripping force. Typical applications include robotic end-effectors, educational and research equipment, and bionic prosthetics, etc. ROH-AP002 dexterous hand with UART, RS485 or CAN physical interface, support SerialCtrl dedicated serial protocol, ModBus-RTU protocol and CAN protocol, can provide ROS / ROS2 platforms for secondary development with SDK.

Control modes

Built-in PID motor control

Manufacturer specification

Manual version: V1.0.3; Measurement scope: As specified for this exact model in its current official manual

oy-ROH-AP002
ROH-AP002 dexterous hand features 11 movable joints, with 6 built-in motor drivers and motor control circuits, providing 6 active degrees of freedom. Equipped with a built-in PID motor control algorithm, it can simulate various human hand grasping operations. Each finger is fitted with a force sensor, enabling real-time monitoring and control of gripping force. Typical applications include robotic end-effectors, educational and research equipment, and bionic prosthetics, etc. ROH-AP002 dexterous hand with UART, RS485 or CAN physical interface, support SerialCtrl dedicated serial protocol, ModBus-RTU protocol and CAN protocol, can provide ROS / ROS2 platforms for secondary development with SDK.

Design service life

3 years

Manufacturer specification

Manual version: V1.0.3; Measurement scope: As specified for this exact model in its current official manual

oy-ROH-AP002
Design service life-span 3 years

Fingertip force bent

≧1.0 Kgf

Manufacturer specification

Manual version: V1.0.3; Measurement scope: As specified for this exact model in its current official manual

oy-ROH-AP002
Active force of each fingertip on bended state ≧1.0 Kgf

Fingertip force straight

≧0.5 Kgf

Manufacturer specification

Manual version: V1.0.3; Measurement scope: As specified for this exact model in its current official manual

oy-ROH-AP002
Active force of each fingertip on stretched state ≧0.5 Kgf

Height

183 mm

Manufacturer specification

Manual version: V1.0.3; Measurement scope: As specified for this exact model in its current official manual

oy-ROH-AP002
Vertical distance from the tip of the middle finger to the wrist 183 mm

Joint count

11

Manufacturer specification

Manual version: V1.0.3; Measurement scope: As specified for this exact model in its current official manual

oy-ROH-AP002
ROH-AP002 dexterous hand features 11 movable joints, with 6 built-in motor drivers and motor control circuits, providing 6 active degrees of freedom. Equipped with a built-in PID motor control algorithm, it can simulate various human hand grasping operations. Each finger is fitted with a force sensor, enabling real-time monitoring and control of gripping force. Typical applications include robotic end-effectors, educational and research equipment, and bionic prosthetics, etc. ROH-AP002 dexterous hand with UART, RS485 or CAN physical interface, support SerialCtrl dedicated serial protocol, ModBus-RTU protocol and CAN protocol, can provide ROS / ROS2 platforms for secondary development with SDK.

Mass

626g ± 5g

Manufacturer specification

Manual version: V1.0.3; Measurement scope: As specified for this exact model in its current official manual

oy-ROH-AP002
Weight (including wrist) 626g ± 5g

Materials

Aluminum alloy, zinc alloy, stainless steel, silicone, plastic.

Manufacturer specification

Manual version: V1.0.3; Measurement scope: As specified for this exact model in its current official manual

oy-ROH-AP002
5.1. Material Aluminum alloy, zinc alloy, stainless steel, silicone, plastic. 5.2.

Operating environment

temperature: -10 degrees Celsius ~ +40 degrees Celsius Humidity: Maximum relative humidity 85%

Manufacturer specification

Manual version: V1.0.3; Measurement scope: As specified for this exact model in its current official manual

oy-ROH-AP002
Working environment temperature: -10 degrees Celsius ~ +40 degrees Celsius Humidity: Maximum relative humidity 85%

Operating voltage

12–48 V DC

Manufacturer specification

Configuration: CAN interface (-C suffix); Manual version: V1.0.3; Measurement scope: As specified for this exact model in its current official manual

oy-ROH-AP002
ROH-AP002 dexterous hand adopts RS485: DC 12-24V, CAN: 12-48V power supply, rated power 48W.

Operating voltage

12–24 V DC

Manufacturer specification

Configuration: RS485 interface; Manual version: V1.0.3; Measurement scope: As specified for this exact model in its current official manual

oy-ROH-AP002
ROH-AP002 dexterous hand adopts RS485: DC 12-24V, CAN: 12-48V power supply, rated power 48W.

Palm width

82 mm

Manufacturer specification

Manual version: V1.0.3; Measurement scope: As specified for this exact model in its current official manual

oy-ROH-AP002
Maximum palm width 82 mm

Passive finger payload bent

10 Kg

Manufacturer specification

Manual version: V1.0.3; Measurement scope: As specified for this exact model in its current official manual

oy-ROH-AP002
Maximum passive load for each finger on bended state 10 Kg

Passive finger payload straight

8 Kg

Manufacturer specification

Manual version: V1.0.3; Measurement scope: As specified for this exact model in its current official manual

oy-ROH-AP002
Maximum passive load for each finger on stretched state 8 Kg

Passive four finger payload bent

30 Kg

Manufacturer specification

Manual version: V1.0.3; Measurement scope: As specified for this exact model in its current official manual

oy-ROH-AP002
Maximum passive load for four fingers on bended state 30 Kg

Rated power

48 W

Manufacturer specification

Manual version: V1.0.3; Measurement scope: As specified for this exact model in its current official manual

oy-ROH-AP002
ROH-AP002 dexterous hand adopts RS485: DC 12-24V, CAN: 12-48V power supply, rated power 48W.

Sdk support

ROS / ROS2 development SDK

Manufacturer specification

Manual version: V1.0.3; Measurement scope: As specified for this exact model in its current official manual

oy-ROH-AP002
ROH-AP002 dexterous hand features 11 movable joints, with 6 built-in motor drivers and motor control circuits, providing 6 active degrees of freedom. Equipped with a built-in PID motor control algorithm, it can simulate various human hand grasping operations. Each finger is fitted with a force sensor, enabling real-time monitoring and control of gripping force. Typical applications include robotic end-effectors, educational and research equipment, and bionic prosthetics, etc. ROH-AP002 dexterous hand with UART, RS485 or CAN physical interface, support SerialCtrl dedicated serial protocol, ModBus-RTU protocol and CAN protocol, can provide ROS / ROS2 platforms for secondary development with SDK.

Thumb fingertip force

≧1.0 Kgf

Manufacturer specification

Manual version: V1.0.3; Measurement scope: As specified for this exact model in its current official manual

oy-ROH-AP002
Maximum active force of thumb tip ≧1.0 Kgf

Thumb flexion angle

0~50 Degrees

Manufacturer specification

Manual version: V1.0.3; Measurement scope: As specified for this exact model in its current official manual

oy-ROH-AP002
Maximum opening and closing angle of thumb to palm 0~50 Degrees

Thumb lateral rotation

0~90 Degrees

Manufacturer specification

Manual version: V1.0.3; Measurement scope: As specified for this exact model in its current official manual

oy-ROH-AP002
Thumb lateral rotation angle 0~90 Degrees

Thumb length

113 mm

Manufacturer specification

Manual version: V1.0.3; Measurement scope: As specified for this exact model in its current official manual

oy-ROH-AP002
Thumb length 113 mm

Thumb rotation time

0.7 second

Manufacturer specification

Manual version: V1.0.3; Measurement scope: As specified for this exact model in its current official manual

oy-ROH-AP002
Rotation time of thumb for full range at maximum speed 0.7 second

Thumb side angle

0~31 Degrees

Manufacturer specification

Manual version: V1.0.3; Measurement scope: As specified for this exact model in its current official manual

oy-ROH-AP002
Maximum opening and closing angle of the thumb side 0~31 Degrees

Thumb tip to wrist

97 mm

Manufacturer specification

Manual version: V1.0.3; Measurement scope: As specified for this exact model in its current official manual

oy-ROH-AP002
Vertical distance from thumb tip to wrist 97 mm

Wrist diameter

49 mm

Manufacturer specification

Manual version: V1.0.3; Measurement scope: As specified for this exact model in its current official manual

oy-ROH-AP002
Wrist diameter 49 mm
