Product details

FM854-E1

Sensors and machine vision

Percipio

FM854-E1

About this product

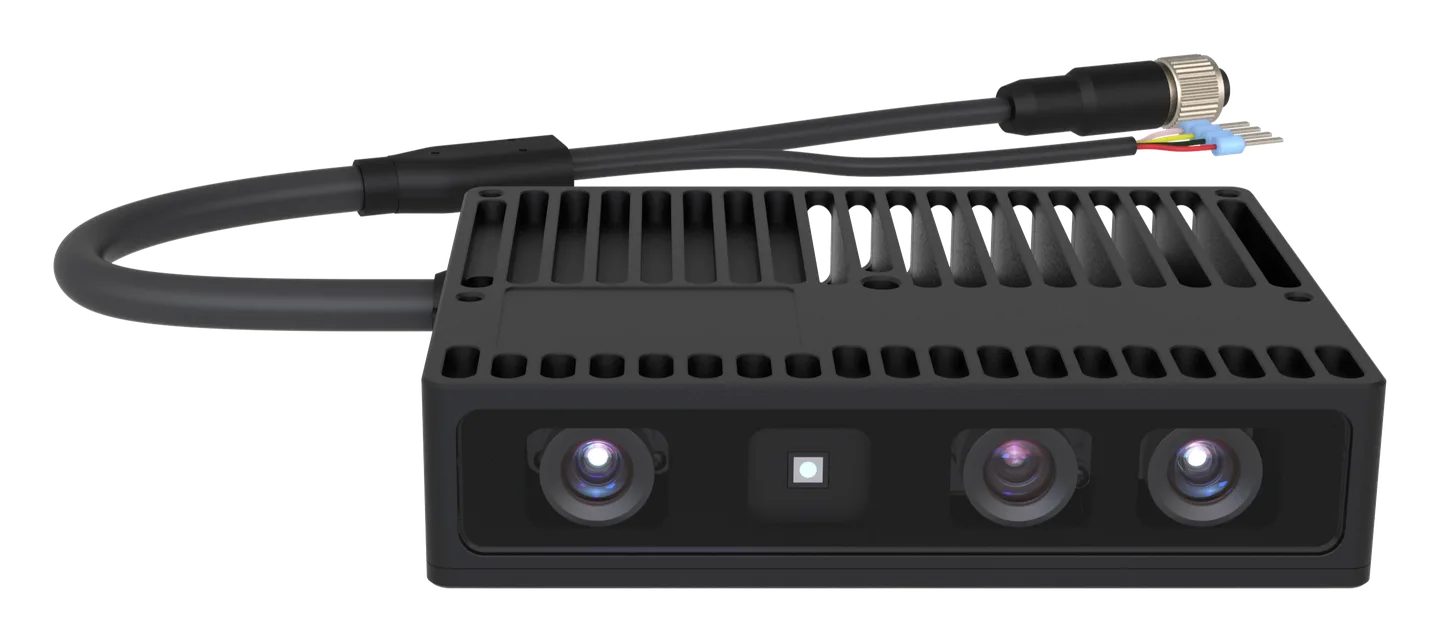

Industrial active-stereo 3D camera with infrared illumination and a global shutter. It provides depth and color sensing for robotics and industrial perception.

Model
FM854-E1
Category
Sensors and machine vision, Components
Product stage
Commercial

Specifications & evidence

Source-backed claims. Configuration, workload and evidence type matter when comparing products.

Baseline

79mm

Manufacturer specification

FM854-E1-Percipio.XYZ
Baseline 79mm

Cooling method

Passive cooling

Manufacturer specification

FM854-E1-Percipio.XYZ
Cooling method Passive cooling

Depth resolution

15 fps @ 1280 x 960 26 fps @ 640 x 480 26 fps @ 320 x 240

Manufacturer specification

FM854-E1-Percipio.XYZ
Depth Resolution 15 fps @ 1280 x 960 26 fps @ 640 x 480 26 fps @ 320 x 240

Depth technology

Stereo Dot-Pattern Structured Light

Manufacturer specification

FM854-E1-Percipio.XYZ
Technical Principles Stereo Dot-Pattern Structured Light

Dimensions

124 mm x 29 mm x 87 mm

Manufacturer specification

FM854-E1-Percipio.XYZ
Size 124 mm x 29 mm x 87 mm

Field of view

60°/47°

Manufacturer specification

FM854-E1-Percipio.XYZ
FOV(H/V) 60°/47°

Housing material

aluminium alloy

Manufacturer specification

FM854-E1-Percipio.XYZ
Housing Material aluminium alloy

Illumination wavelength

940nm

Manufacturer specification

FM854-E1-Percipio.XYZ
Laser wavelength 940nm

Ip rating

IP65

Manufacturer specification

FM854-E1-Percipio.XYZ
Ingress Protection IP65

Light source

1 x infrared laser

Manufacturer specification

FM854-E1-Percipio.XYZ
Light source 1 x infrared laser

Mounting

Mechanical fastening (M4 thread)

Manufacturer specification

FM854-E1-Percipio.XYZ
Installation Method Mechanical fastening (M4 thread)

Operating temperature

0 ℃ ~ 45 ℃

Manufacturer specification

FM854-E1-Percipio.XYZ
Temperature 0 ℃ ~ 45 ℃

Output formats

Depth map, colour image, infrared image, point cloud

Manufacturer specification

FM854-E1-Percipio.XYZ
Output image Depth map, colour image, infrared image, point cloud

Power consumption

<8.2 W

Manufacturer specification

FM854-E1-Percipio.XYZ
Power Consumption <8.2 W

Sdk

Percipio Camport SDK; supports programming languages such as C, C++, C# and Python

Manufacturer specification

FM854-E1-Percipio.XYZ
Software Development Kit Percipio Camport SDK; supports programming languages such as C, C++, C# and Python

Shutter type

Global

Manufacturer specification

FM854-E1-Percipio.XYZ
Shutter Type Global

Storage temperature

-10 ℃ ~ 55 ℃

Manufacturer specification

FM854-E1-Percipio.XYZ
Storage temperature -10 ℃ ~ 55 ℃

Supply voltage

DC 24V ±10%

Manufacturer specification

FM854-E1-Percipio.XYZ
Supply voltage DC 24V ±10%

Supported platforms

Linux/Windows/ROS

Manufacturer specification

FM854-E1-Percipio.XYZ
Host operating system Linux/Windows/ROS

Weight

414 g

Manufacturer specification

FM854-E1-Percipio.XYZ
Weight 414 g
