Product details

VMD03-1230(C)

Sensors and machine vision

Percipio

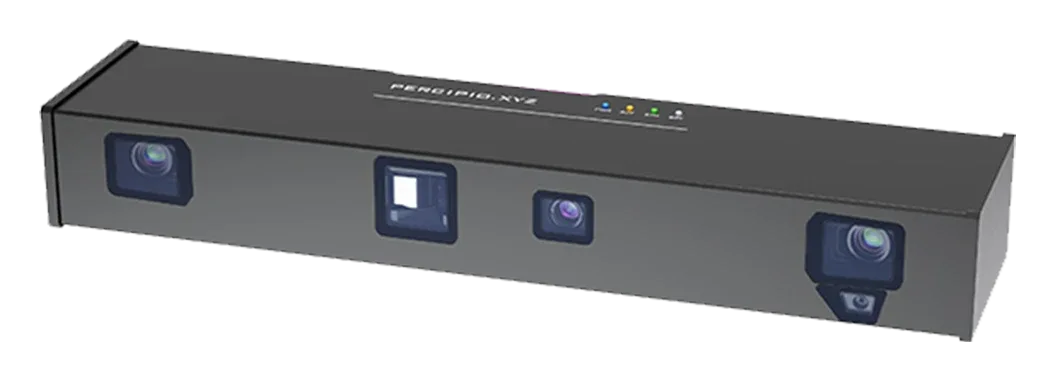

VMD03-1230(C)

About this product

Long-range fringe/phase structured-light 3D camera for industrial perception. Its wide-baseline housing and Ethernet interface support detailed point-cloud acquisition; the catalog denotes an optional C configuration.

Model
VMD03-1230(C)
Category
Sensors and machine vision, Components
Product stage
Commercial

Specifications & evidence

Source-backed claims. Configuration, workload and evidence type matter when comparing products.

Cooling method

Passive cooling

Manufacturer specification

VMD03-1230(C)*-Percipio.XYZ
Cooling method Passive cooling

Depth resolution

up to 1.14FPS @ 2048 x 1536 /1024 x 768 / 512 x 384

Manufacturer specification

VMD03-1230(C)*-Percipio.XYZ
Depth Resolution up to 1.14FPS @ 2048 x 1536 /1024 x 768 / 512 x 384

Depth technology

Stereo Fringe/Phase Structured Light

Manufacturer specification

VMD03-1230(C)*-Percipio.XYZ
Technical Principles Stereo Fringe/Phase Structured Light

Dimensions

449 mm x 104 mm x 64 mm

Manufacturer specification

VMD03-1230(C)*-Percipio.XYZ
Size 449 mm x 104 mm x 64 mm

Field of view

max 51°/41°±3°

Manufacturer specification

VMD03-1230(C)*-Percipio.XYZ
FOV(H/V) max 51°/41°±3°

Housing material

aluminium alloy

Manufacturer specification

VMD03-1230(C)*-Percipio.XYZ
Housing Material aluminium alloy

Illumination wavelength

635 nm (red light)

Manufacturer specification

VMD03-1230(C)*-Percipio.XYZ
Laser wavelength 635 nm (red light)

Ip rating

IP65

Manufacturer specification

VMD03-1230(C)*-Percipio.XYZ
Ingress Protection IP65

Light source

laser

Manufacturer specification

VMD03-1230(C)*-Percipio.XYZ
Light source laser

Mounting

Mechanical fastening

Manufacturer specification

VMD03-1230(C)*-Percipio.XYZ
Installation Method Mechanical fastening

Operating temperature

0 ~ 40℃

Manufacturer specification

VMD03-1230(C)*-Percipio.XYZ
Temperature 0 ~ 40℃

Output formats

Depth map, colour map, greyscale map, point cloud

Manufacturer specification

VMD03-1230(C)*-Percipio.XYZ
Output image Depth map, colour map, greyscale map, point cloud

Power consumption

≤ 24 W

Manufacturer specification

VMD03-1230(C)*-Percipio.XYZ
Power Consumption ≤ 24 W

Sdk

Percipio Camport SDK; supports C, C++, C#, Python and others

Manufacturer specification

VMD03-1230(C)*-Percipio.XYZ
Software Development Kit Percipio Camport SDK; supports C, C++, C#, Python and others

Shutter type

Global

Manufacturer specification

VMD03-1230(C)*-Percipio.XYZ
Shutter Type Global

Storage temperature

-10 ℃ ~ 55℃

Manufacturer specification

VMD03-1230(C)*-Percipio.XYZ
Storage temperature -10 ℃ ~ 55℃

Supply voltage

DC 24 V ~ 48 V

Manufacturer specification

VMD03-1230(C)*-Percipio.XYZ
Supply voltage DC 24 V ~ 48 V

Supported platforms

Linux/Windows/ROS

Manufacturer specification

VMD03-1230(C)*-Percipio.XYZ
Host operating system Linux/Windows/ROS

Weight

2307g

Manufacturer specification

VMD03-1230(C)*-Percipio.XYZ
Weight 2307g
