Product details

Gemini 2

Sensors and machine vision

Orbbec Inc.

Gemini 2

About this product

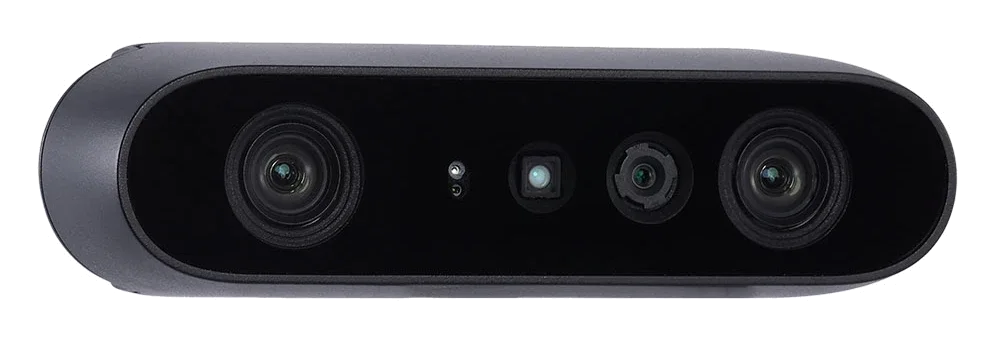

Gemini 2 is a compact active-stereo depth camera for mobile robots, SLAM and other RGB-D applications. It provides onboard depth processing, an IMU, hardware synchronization and USB 3.0 data and power. Wide-angle depth and color sensing support perception across indoor and semi-outdoor lighting conditions.

Model
Gemini 2
Category
Sensors and machine vision, Components
Product stage
Commercial

Specifications & evidence

Source-backed claims. Configuration, workload and evidence type matter when comparing products.

Data connection

USB 3.0 Type-C

Manufacturer specification

Gemini 2: Stereo Vision Camera | Orbbec
Data Connection USB 3.0 Type-C

Data output

Point Cloud, Depth Map, IR & RGB

Manufacturer specification

Gemini 2: Stereo Vision Camera | Orbbec
Data Output Point Cloud, Depth Map, IR & RGB

Depth fov

H91° V66°

Manufacturer specification

Gemini 2: Stereo Vision Camera | Orbbec
Depth FOV H91° V66°

Depth range

*0.15-10m

Manufacturer specification

Gemini 2: Stereo Vision Camera | Orbbec
Depth Range *0.15-10m

Depth resolution fps

Up to 1280X800@30fps

Manufacturer specification

Gemini 2: Stereo Vision Camera | Orbbec
Depth Resolution/FPS Up to 1280X800@30fps

Depth technology

Active Stereo IR

Manufacturer specification

Gemini 2: Stereo Vision Camera | Orbbec
Depth Technology Active Stereo IR

Dimensions w h d

90mm x 25mm x 30mm

Manufacturer specification

Gemini 2: Stereo Vision Camera | Orbbec
Dimensions (W*H*D) 90mm x 25mm x 30mm

Imu

Supported

Manufacturer specification

Gemini 2: Stereo Vision Camera | Orbbec
IMU Supported

Operating environment

0℃ - 40℃; Indoor/Semi-Outdoor; 5%-95%RH

Manufacturer specification

Gemini 2: Stereo Vision Camera | Orbbec
Operating Environment 0℃ - 40℃; Indoor/Semi-Outdoor; 5%-95%RH

Power consumption

Average <2.5W

Manufacturer specification

Gemini 2: Stereo Vision Camera | Orbbec
Power Consumption Average <2.5W

Power input

USB 3.0 Type-C

Manufacturer specification

Gemini 2: Stereo Vision Camera | Orbbec
Power Input USB 3.0 Type-C

Release date

2023-01-05

Manufacturer specification

Configuration: Manufacturer launch announcement

CES 2023: Orbbec Unveils Two New 3D Cameras
Orbbec Unveils Two New 3D Cameras at CES 2023 January 5, 2023 Share Orbbec , a leading global 3D camera provider, today announced it will be introducing two of its most advanced 3D sensor cameras ever at CES 2023. The Gemini 2, with the widest field of view among Orbbec’s product lines and exceptional sensing range, as well as the second generation structured light camera, the Astra 2. Both cameras have been developed with the Orbbec’s new generation ASIC chip MX6600, which enables high quality depth processing and supports depth/color image registration in different resolutions. With an easy-touse software development kit, on board IMU and multicamera sync support, the two cameras introduce exciting new possibilities in 3D for a variety of industries.

Rgb fov

H86° V55°

Manufacturer specification

Gemini 2: Stereo Vision Camera | Orbbec
RGB FOV H86° V55°

Rgb resolution fps

Up to 1920X1080@30fps

Manufacturer specification

Gemini 2: Stereo Vision Camera | Orbbec
RGB Resolution/FPS Up to 1920X1080@30fps

Sdk support

Orbbec SDK

Manufacturer specification

Gemini 2: Stereo Vision Camera | Orbbec
SDK Support Orbbec SDK

Wavelength

850 nm

Manufacturer specification

Gemini 2: Stereo Vision Camera | Orbbec
Wavelength 850nm

Weight

98 g

Manufacturer specification

Gemini 2: Stereo Vision Camera | Orbbec
Weight 98g
