Product details

iGMK

Components

Kinco

iGMK

About this product

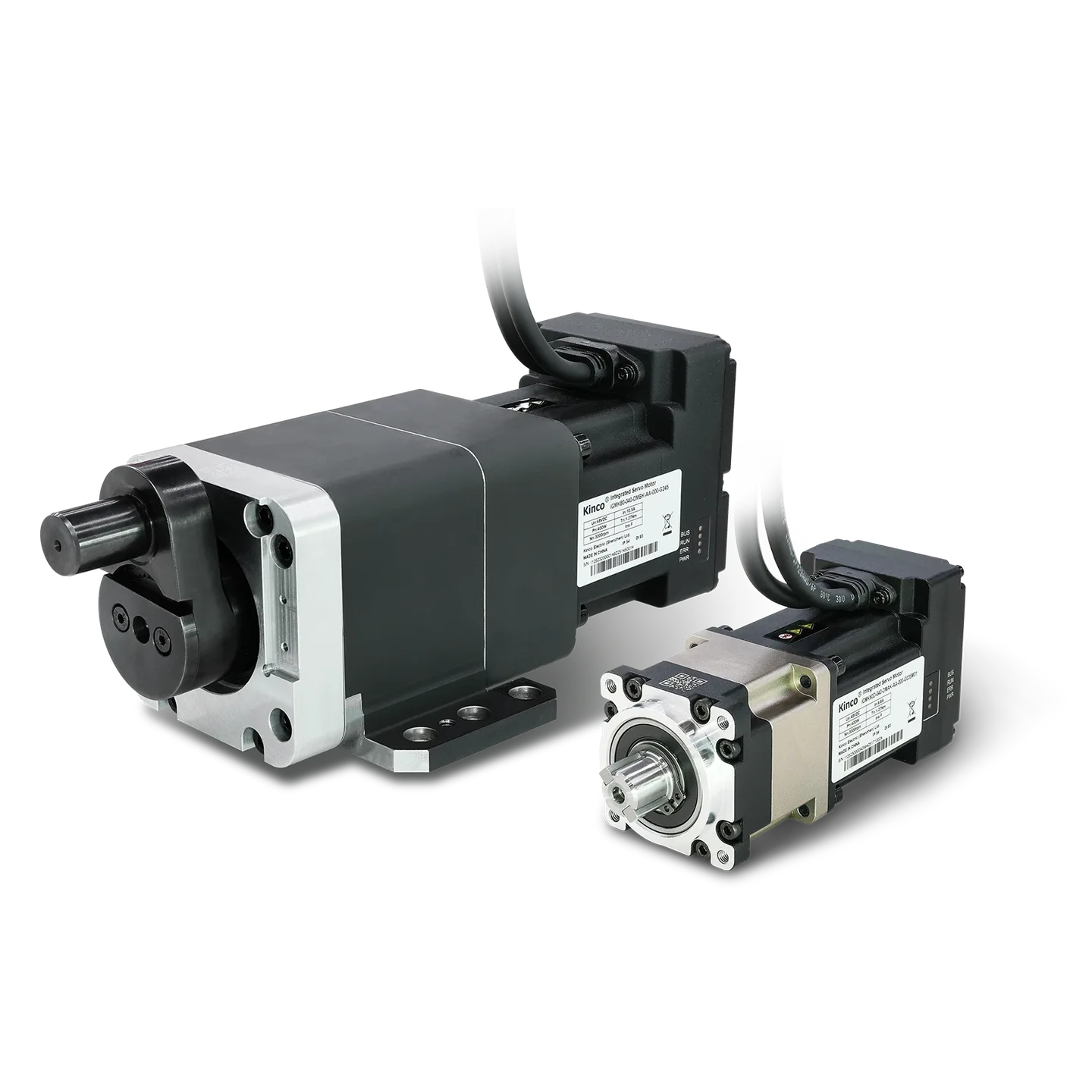

Integrated servo gearmotor family combining the drive, motor, gearbox and bus interface. It is designed for AGVs, AMRs and compact automation equipment.

Model
iGMK
Category
Components, Motion control and actuation

Specifications & evidence

Source-backed claims. Configuration, workload and evidence type matter when comparing products.

Altitude and derating

rated operating altitude 1000m or below, operating altitude 1000m and above: , per rise of 100m, derate 1.5%use, maximum operating altitude 3000m.

Manufacturer specification

Configuration: iGMK60D-040-DM ■ K-AA-000-GXXX, reduction 10:1; iGMK60D-040-DM ■ K-AA-000-GXXX, reduction 35:1; iGMK60D-040-DM ■ K-AA-000-GXXX, reduction 50:1; i GMK80D-040-DM ■ K-AA-000-G035, reduction 35:1; iGMK80D-075-DM ■ K-AA-000-GXXX, reduction 35:1; iGMK80D-075-DM ■ K-AA-000-GXXX, reduction 50:1; iGMK60D-040-DM ■ K-AA-000-G035M01, reduction 35:1; i GMK80D-040-DM ■ K-AA-000-G035M01, reduction 35:1; i GMK80D-040-DM BK-AA-000-G245, reduction 245:1; iGMK80D-075-DM ■ K-AA-000-GXXXM01, reduction 35:1; iGMK80D-075-DM ■ K-AA-000-GXXXM01, reduction 50:1; iGMK80D-075-DM BK-AA-000-G245, reduction 245:1; Per exact family configuration. Model-code options are not interchangeable. Source column reduction ratio retained to distinguish GXXX configurations.

iGMK集成式伺服减速电机
高度 额定工作海拔1000m以下,工作海拔在1000米以上时,每上升100米,需降额1.5%使用,最大工作高度海拔3000米。

Atmospheric pressure

86kpa~106kpa

Manufacturer specification

Configuration: iGMK60D-040-DM ■ K-AA-000-GXXX, reduction 10:1; iGMK60D-040-DM ■ K-AA-000-GXXX, reduction 35:1; iGMK60D-040-DM ■ K-AA-000-GXXX, reduction 50:1; i GMK80D-040-DM ■ K-AA-000-G035, reduction 35:1; iGMK80D-075-DM ■ K-AA-000-GXXX, reduction 35:1; iGMK80D-075-DM ■ K-AA-000-GXXX, reduction 50:1; iGMK60D-040-DM ■ K-AA-000-G035M01, reduction 35:1; i GMK80D-040-DM ■ K-AA-000-G035M01, reduction 35:1; i GMK80D-040-DM BK-AA-000-G245, reduction 245:1; iGMK80D-075-DM ■ K-AA-000-GXXXM01, reduction 35:1; iGMK80D-075-DM ■ K-AA-000-GXXXM01, reduction 50:1; iGMK80D-075-DM BK-AA-000-G245, reduction 245:1; Per exact family configuration. Model-code options are not interchangeable. Source column reduction ratio retained to distinguish GXXX configurations.

iGMK集成式伺服减速电机
大气压力 86kpa~106kpa

Canopen interface

maximum supports 1Mbps, CANopen communication with controller

Manufacturer specification

Configuration: iGMK60D-040-DM ■ K-AA-000-GXXX, reduction 10:1; iGMK60D-040-DM ■ K-AA-000-GXXX, reduction 35:1; iGMK60D-040-DM ■ K-AA-000-GXXX, reduction 50:1; i GMK80D-040-DM ■ K-AA-000-G035, reduction 35:1; iGMK80D-075-DM ■ K-AA-000-GXXX, reduction 35:1; iGMK80D-075-DM ■ K-AA-000-GXXX, reduction 50:1; iGMK60D-040-DM ■ K-AA-000-G035M01, reduction 35:1; i GMK80D-040-DM ■ K-AA-000-G035M01, reduction 35:1; i GMK80D-040-DM BK-AA-000-G245, reduction 245:1; iGMK80D-075-DM ■ K-AA-000-GXXXM01, reduction 35:1; iGMK80D-075-DM ■ K-AA-000-GXXXM01, reduction 50:1; iGMK80D-075-DM BK-AA-000-G245, reduction 245:1; Per exact family configuration. Model-code options are not interchangeable. Only configurations equipped with the corresponding interface or safety option; optional protocol rows do not mean every SKU has every interface. Source column reduction ratio retained to distinguish GXXX configurations.

iGMK集成式伺服减速电机
CANopen 最大支持1Mbps,可使用CANopen协议与控制器通讯

Complete assembly maximum axial force

iGMK60D-040-DM ■ K-AA-000-GXXX, reduction 10:1: 600; iGMK60D-040-DM ■ K-AA-000-GXXX, reduction 35:1: 600; iGMK60D-040-DM ■ K-AA-000-GXXX, reduction 50:1: 600; i GMK80D-040-DM ■ K-AA-000-G035, reduction 35:1: 1000; iGMK80D-075-DM ■ K-AA-000-GXXX, reduction 35:1: 1000; iGMK80D-075-DM ■ K-AA-000-GXXX, reduction 50:1: 1000; iGMK60D-040-DM ■ K-AA-000-G035M01, reduction 35:1: 530; i GMK80D-040-DM ■ K-AA-000-G035M01, reduction 35:1: 500; i GMK80D-040-DM BK-AA-000-G245, reduction 245:1: 1000; iGMK80D-075-DM ■ K-AA-000-GXXXM01, reduction 35:1: 500; iGMK80D-075-DM ■ K-AA-000-GXXXM01, reduction 50:1: 500; iGMK80D-075-DM BK-AA-000-G245, reduction 245:1: 1000

Manufacturer specification

Configuration: Values apply to the exact configurations named in the value.; Per exact family configuration. Model-code options are not interchangeable. Source column reduction ratio retained to distinguish GXXX configurations.

iGMK集成式伺服减速电机
最大轴向力Fa(N) 600 600 600 1000 1000 1000 530 500 1000 500 500 1000

Complete assembly maximum radial force

iGMK60D-040-DM ■ K-AA-000-GXXX, reduction 10:1: 700; iGMK60D-040-DM ■ K-AA-000-GXXX, reduction 35:1: 700; iGMK60D-040-DM ■ K-AA-000-GXXX, reduction 50:1: 700; i GMK80D-040-DM ■ K-AA-000-G035, reduction 35:1: 1300; iGMK80D-075-DM ■ K-AA-000-GXXX, reduction 35:1: 1300; iGMK80D-075-DM ■ K-AA-000-GXXX, reduction 50:1: 1300; iGMK60D-040-DM ■ K-AA-000-G035M01, reduction 35:1: 630; i GMK80D-040-DM ■ K-AA-000-G035M01, reduction 35:1: 1500; i GMK80D-040-DM BK-AA-000-G245, reduction 245:1: 18000; iGMK80D-075-DM ■ K-AA-000-GXXXM01, reduction 35:1: 1500; iGMK80D-075-DM ■ K-AA-000-GXXXM01, reduction 50:1: 1500; iGMK80D-075-DM BK-AA-000-G245, reduction 245:1: 22000

Manufacturer specification

Configuration: Values apply to the exact configurations named in the value.; Per exact family configuration. Model-code options are not interchangeable. Source column reduction ratio retained to distinguish GXXX configurations.

iGMK集成式伺服减速电机
最大径向力Fr(N) 700 700 700 1300 1300 1300 630 1500 18000 1500 1500 22000

Complete assembly maximum speed

iGMK60D-040-DM ■ K-AA-000-GXXX, reduction 10:1: 350; iGMK60D-040-DM ■ K-AA-000-GXXX, reduction 35:1: 100; iGMK60D-040-DM ■ K-AA-000-GXXX, reduction 50:1: 70; i GMK80D-040-DM ■ K-AA-000-G035, reduction 35:1: 100; iGMK80D-075-DM ■ K-AA-000-GXXX, reduction 35:1: 100; iGMK80D-075-DM ■ K-AA-000-GXXX, reduction 50:1: 70; iGMK60D-040-DM ■ K-AA-000-G035M01, reduction 35:1: 100; i GMK80D-040-DM ■ K-AA-000-G035M01, reduction 35:1: 100; i GMK80D-040-DM BK-AA-000-G245, reduction 245:1: 14; iGMK80D-075-DM ■ K-AA-000-GXXXM01, reduction 35:1: 100; iGMK80D-075-DM ■ K-AA-000-GXXXM01, reduction 50:1: 70; iGMK80D-075-DM BK-AA-000-G245, reduction 245:1: 14 rpm

Manufacturer specification

Configuration: Values apply to the exact configurations named in the value.; Per exact family configuration. Model-code options are not interchangeable. Source column reduction ratio retained to distinguish GXXX configurations.

iGMK集成式伺服减速电机
最大转速n M (rpm) 350 100 70 100 100 70 100 100 14 100 70 14

Complete assembly maximum torque

iGMK60D-040-DM ■ K-AA-000-GXXX, reduction 10:1: 30; iGMK60D-040-DM ■ K-AA-000-GXXX, reduction 35:1: 90; iGMK60D-040-DM ■ K-AA-000-GXXX, reduction 50:1: 90; i GMK80D-040-DM ■ K-AA-000-G035, reduction 35:1: 120; iGMK80D-075-DM ■ K-AA-000-GXXX, reduction 35:1: 170; iGMK80D-075-DM ■ K-AA-000-GXXX, reduction 50:1: 170; iGMK60D-040-DM ■ K-AA-000-G035M01, reduction 35:1: 90; i GMK80D-040-DM ■ K-AA-000-G035M01, reduction 35:1: 120; i GMK80D-040-DM BK-AA-000-G245, reduction 245:1: 500; iGMK80D-075-DM ■ K-AA-000-GXXXM01, reduction 35:1: 170; iGMK80D-075-DM ■ K-AA-000-GXXXM01, reduction 50:1: 170; iGMK80D-075-DM BK-AA-000-G245, reduction 245:1: 1000 N·m

Manufacturer specification

Configuration: Values apply to the exact configurations named in the value.; Per exact family configuration. Model-code options are not interchangeable. Source column reduction ratio retained to distinguish GXXX configurations. Peak/maximum value; duration is not stated on this page.

iGMK集成式伺服减速电机
最大转矩Tm(N.m) 30 90 90 120 170 170 90 120 500 170 170 1000

Complete assembly rated speed

iGMK60D-040-DM ■ K-AA-000-GXXX, reduction 10:1: 300; iGMK60D-040-DM ■ K-AA-000-GXXX, reduction 35:1: 85; iGMK60D-040-DM ■ K-AA-000-GXXX, reduction 50:1: 60; i GMK80D-040-DM ■ K-AA-000-G035, reduction 35:1: 85.7; iGMK80D-075-DM ■ K-AA-000-GXXX, reduction 35:1: 85.7; iGMK80D-075-DM ■ K-AA-000-GXXX, reduction 50:1: 60; iGMK60D-040-DM ■ K-AA-000-G035M01, reduction 35:1: 85; i GMK80D-040-DM ■ K-AA-000-G035M01, reduction 35:1: 85; i GMK80D-040-DM BK-AA-000-G245, reduction 245:1: 12.2; iGMK80D-075-DM ■ K-AA-000-GXXXM01, reduction 35:1: 85; iGMK80D-075-DM ■ K-AA-000-GXXXM01, reduction 50:1: 60; iGMK80D-075-DM BK-AA-000-G245, reduction 245:1: 12.2 rpm

Manufacturer specification

Configuration: Values apply to the exact configurations named in the value.; Per exact family configuration. Model-code options are not interchangeable. Source column reduction ratio retained to distinguish GXXX configurations.

iGMK集成式伺服减速电机
额定转速n N (rpm) 300 85 60 85.7 85.7 60 85 85 12.2 85 60 12.2

Complete assembly rated torque

iGMK60D-040-DM ■ K-AA-000-GXXX, reduction 10:1: 11.81; iGMK60D-040-DM ■ K-AA-000-GXXX, reduction 35:1: 40; iGMK60D-040-DM ■ K-AA-000-GXXX, reduction 50:1: 45; i GMK80D-040-DM ■ K-AA-000-G035, reduction 35:1: 40; iGMK80D-075-DM ■ K-AA-000-GXXX, reduction 35:1: 75.3; iGMK80D-075-DM ■ K-AA-000-GXXX, reduction 50:1: 85; iGMK60D-040-DM ■ K-AA-000-G035M01, reduction 35:1: 40; i GMK80D-040-DM ■ K-AA-000-G035M01, reduction 35:1: 40; i GMK80D-040-DM BK-AA-000-G245, reduction 245:1: 248.9; iGMK80D-075-DM ■ K-AA-000-GXXXM01, reduction 35:1: 75.3; iGMK80D-075-DM ■ K-AA-000-GXXXM01, reduction 50:1: 85; iGMK80D-075-DM BK-AA-000-G245, reduction 245:1: 468 N·m

Manufacturer specification

Configuration: Values apply to the exact configurations named in the value.; Per exact family configuration. Model-code options are not interchangeable. Source column reduction ratio retained to distinguish GXXX configurations.

iGMK集成式伺服减速电机
额定转矩Ts(N.m) 11.81 40 45 40 75.3 85 40 40 248.9 75.3 85 468

Complete assembly reduction ratio

iGMK60D-040-DM ■ K-AA-000-GXXX, reduction 10:1: 10; iGMK60D-040-DM ■ K-AA-000-GXXX, reduction 35:1: 35; iGMK60D-040-DM ■ K-AA-000-GXXX, reduction 50:1: 50; i GMK80D-040-DM ■ K-AA-000-G035, reduction 35:1: 35; iGMK80D-075-DM ■ K-AA-000-GXXX, reduction 35:1: 35; iGMK80D-075-DM ■ K-AA-000-GXXX, reduction 50:1: 50; iGMK60D-040-DM ■ K-AA-000-G035M01, reduction 35:1: 35; i GMK80D-040-DM ■ K-AA-000-G035M01, reduction 35:1: 35; i GMK80D-040-DM BK-AA-000-G245, reduction 245:1: 245; iGMK80D-075-DM ■ K-AA-000-GXXXM01, reduction 35:1: 35; iGMK80D-075-DM ■ K-AA-000-GXXXM01, reduction 50:1: 50; iGMK80D-075-DM BK-AA-000-G245, reduction 245:1: 245

Manufacturer specification

Configuration: Values apply to the exact configurations named in the value.; Per exact family configuration. Model-code options are not interchangeable. Source column reduction ratio retained to distinguish GXXX configurations.

iGMK集成式伺服减速电机
整机 速比 10 35 50 35 35 50 35 35 245 35 50 245

Cooling method

Natural cooling

Manufacturer specification

Configuration: iGMK60D-040-DM ■ K-AA-000-GXXX, reduction 10:1; iGMK60D-040-DM ■ K-AA-000-GXXX, reduction 35:1; iGMK60D-040-DM ■ K-AA-000-GXXX, reduction 50:1; i GMK80D-040-DM ■ K-AA-000-G035, reduction 35:1; iGMK80D-075-DM ■ K-AA-000-GXXX, reduction 35:1; iGMK80D-075-DM ■ K-AA-000-GXXX, reduction 50:1; iGMK60D-040-DM ■ K-AA-000-G035M01, reduction 35:1; i GMK80D-040-DM ■ K-AA-000-G035M01, reduction 35:1; i GMK80D-040-DM BK-AA-000-G245, reduction 245:1; iGMK80D-075-DM ■ K-AA-000-GXXXM01, reduction 35:1; iGMK80D-075-DM ■ K-AA-000-GXXXM01, reduction 50:1; iGMK80D-075-DM BK-AA-000-G245, reduction 245:1; Per exact family configuration. Model-code options are not interchangeable. Source column reduction ratio retained to distinguish GXXX configurations.

iGMK集成式伺服减速电机
冷却方式 自然冷却

Digital input specification

4 digital inputs, common COMI; high level : 12.5~30VDC low level : 0~5VDC input impedance : 5KΩ maximum frequency : 1KHz

Manufacturer specification

Configuration: iGMK60D-040-DM ■ K-AA-000-GXXX, reduction 10:1; iGMK60D-040-DM ■ K-AA-000-GXXX, reduction 35:1; iGMK60D-040-DM ■ K-AA-000-GXXX, reduction 50:1; i GMK80D-040-DM ■ K-AA-000-G035, reduction 35:1; iGMK80D-075-DM ■ K-AA-000-GXXX, reduction 35:1; iGMK80D-075-DM ■ K-AA-000-GXXX, reduction 50:1; iGMK60D-040-DM ■ K-AA-000-G035M01, reduction 35:1; i GMK80D-040-DM ■ K-AA-000-G035M01, reduction 35:1; i GMK80D-040-DM BK-AA-000-G245, reduction 245:1; iGMK80D-075-DM ■ K-AA-000-GXXXM01, reduction 35:1; iGMK80D-075-DM ■ K-AA-000-GXXXM01, reduction 50:1; iGMK80D-075-DM BK-AA-000-G245, reduction 245:1; Per exact family configuration. Model-code options are not interchangeable. Source column reduction ratio retained to distinguish GXXX configurations.

iGMK集成式伺服减速电机
通用功能 输入规格 4路数字量输入,共COMI端;高电平:12.5~30VDC 低电平:0~5VDC 输入阻抗:5KΩ 最大频率:1KHz

Duty cycle

S3-10min-60%(intermittent periodic duty, cycle 10min, 60%operating time) S1(continuous duty)torque must be derated to 70%

Manufacturer specification

Configuration: iGMK60D-040-DM ■ K-AA-000-GXXX, reduction 10:1; iGMK60D-040-DM ■ K-AA-000-GXXX, reduction 35:1; iGMK60D-040-DM ■ K-AA-000-GXXX, reduction 50:1; i GMK80D-040-DM ■ K-AA-000-G035, reduction 35:1; iGMK80D-075-DM ■ K-AA-000-GXXX, reduction 35:1; iGMK80D-075-DM ■ K-AA-000-GXXX, reduction 50:1; iGMK60D-040-DM ■ K-AA-000-G035M01, reduction 35:1; i GMK80D-040-DM ■ K-AA-000-G035M01, reduction 35:1; i GMK80D-040-DM BK-AA-000-G245, reduction 245:1; iGMK80D-075-DM ■ K-AA-000-GXXXM01, reduction 35:1; iGMK80D-075-DM ■ K-AA-000-GXXXM01, reduction 50:1; iGMK80D-075-DM BK-AA-000-G245, reduction 245:1; Per exact family configuration. Model-code options are not interchangeable. Source column reduction ratio retained to distinguish GXXX configurations.

iGMK集成式伺服减速电机
工作制 S3-10min-60%(断续周期工作制,周期10min, 60%工作时间) S1(连续工作制)扭矩需降额至70%

Ingress protection

IP54

Manufacturer specification

Configuration: iGMK60D-040-DM ■ K-AA-000-GXXX, reduction 10:1; iGMK60D-040-DM ■ K-AA-000-GXXX, reduction 35:1; iGMK60D-040-DM ■ K-AA-000-GXXX, reduction 50:1; i GMK80D-040-DM ■ K-AA-000-G035, reduction 35:1; iGMK80D-075-DM ■ K-AA-000-GXXX, reduction 35:1; iGMK80D-075-DM ■ K-AA-000-GXXX, reduction 50:1; iGMK60D-040-DM ■ K-AA-000-G035M01, reduction 35:1; i GMK80D-040-DM ■ K-AA-000-G035M01, reduction 35:1; i GMK80D-040-DM BK-AA-000-G245, reduction 245:1; iGMK80D-075-DM ■ K-AA-000-GXXXM01, reduction 35:1; iGMK80D-075-DM ■ K-AA-000-GXXXM01, reduction 50:1; iGMK80D-075-DM BK-AA-000-G245, reduction 245:1; Per exact family configuration. Model-code options are not interchangeable. Source column reduction ratio retained to distinguish GXXX configurations.

iGMK集成式伺服减速电机
防护等级 IP54

Logic power loss

900 mW

Manufacturer specification

Configuration: iGMK60D-040-DM ■ K-AA-000-GXXX, reduction 10:1; iGMK60D-040-DM ■ K-AA-000-GXXX, reduction 35:1; iGMK60D-040-DM ■ K-AA-000-GXXX, reduction 50:1; i GMK80D-040-DM ■ K-AA-000-G035, reduction 35:1; iGMK80D-075-DM ■ K-AA-000-GXXX, reduction 35:1; iGMK80D-075-DM ■ K-AA-000-GXXX, reduction 50:1; iGMK60D-040-DM ■ K-AA-000-G035M01, reduction 35:1; i GMK80D-040-DM ■ K-AA-000-G035M01, reduction 35:1; i GMK80D-040-DM BK-AA-000-G245, reduction 245:1; iGMK80D-075-DM ■ K-AA-000-GXXXM01, reduction 35:1; iGMK80D-075-DM ■ K-AA-000-GXXXM01, reduction 50:1; iGMK80D-075-DM BK-AA-000-G245, reduction 245:1; Per exact family configuration. Model-code options are not interchangeable. Source column reduction ratio retained to distinguish GXXX configurations.

iGMK集成式伺服减速电机
逻辑损耗功率(mW) 900

Logic power supply

24VDC

Manufacturer specification

Configuration: iGMK60D-040-DM ■ K-AA-000-GXXX, reduction 10:1; iGMK60D-040-DM ■ K-AA-000-GXXX, reduction 35:1; iGMK60D-040-DM ■ K-AA-000-GXXX, reduction 50:1; i GMK80D-040-DM ■ K-AA-000-G035, reduction 35:1; iGMK80D-075-DM ■ K-AA-000-GXXX, reduction 35:1; iGMK80D-075-DM ■ K-AA-000-GXXX, reduction 50:1; iGMK60D-040-DM ■ K-AA-000-G035M01, reduction 35:1; i GMK80D-040-DM ■ K-AA-000-G035M01, reduction 35:1; i GMK80D-040-DM BK-AA-000-G245, reduction 245:1; iGMK80D-075-DM ■ K-AA-000-GXXXM01, reduction 35:1; iGMK80D-075-DM ■ K-AA-000-GXXXM01, reduction 50:1; iGMK80D-075-DM BK-AA-000-G245, reduction 245:1; Per exact family configuration. Model-code options are not interchangeable. Source column reduction ratio retained to distinguish GXXX configurations.

iGMK集成式伺服减速电机
逻辑电源输入 24VDC 24VDC

Main power supply

rated 48VDC(24VDC~60VDC)

Manufacturer specification

Configuration: iGMK60D-040-DM ■ K-AA-000-GXXX, reduction 10:1; iGMK60D-040-DM ■ K-AA-000-GXXX, reduction 35:1; iGMK60D-040-DM ■ K-AA-000-GXXX, reduction 50:1; i GMK80D-040-DM ■ K-AA-000-G035, reduction 35:1; iGMK80D-075-DM ■ K-AA-000-GXXX, reduction 35:1; iGMK80D-075-DM ■ K-AA-000-GXXX, reduction 50:1; iGMK60D-040-DM ■ K-AA-000-G035M01, reduction 35:1; i GMK80D-040-DM ■ K-AA-000-G035M01, reduction 35:1; i GMK80D-040-DM BK-AA-000-G245, reduction 245:1; iGMK80D-075-DM ■ K-AA-000-GXXXM01, reduction 35:1; iGMK80D-075-DM ■ K-AA-000-GXXXM01, reduction 50:1; iGMK80D-075-DM BK-AA-000-G245, reduction 245:1; Per exact family configuration. Model-code options are not interchangeable. Source column reduction ratio retained to distinguish GXXX configurations.

iGMK集成式伺服减速电机
动力电源输入 额定48VDC(24VDC~60VDC) 额定48VDC(24VDC~60VDC)

Modbus rs485 interface

maximum supports 115.2Kbps, Modbus RTU communication with controller

Manufacturer specification

Configuration: iGMK60D-040-DM ■ K-AA-000-GXXX, reduction 10:1; iGMK60D-040-DM ■ K-AA-000-GXXX, reduction 35:1; iGMK60D-040-DM ■ K-AA-000-GXXX, reduction 50:1; i GMK80D-040-DM ■ K-AA-000-G035, reduction 35:1; iGMK80D-075-DM ■ K-AA-000-GXXX, reduction 35:1; iGMK80D-075-DM ■ K-AA-000-GXXX, reduction 50:1; iGMK60D-040-DM ■ K-AA-000-G035M01, reduction 35:1; i GMK80D-040-DM ■ K-AA-000-G035M01, reduction 35:1; i GMK80D-040-DM BK-AA-000-G245, reduction 245:1; iGMK80D-075-DM ■ K-AA-000-GXXXM01, reduction 35:1; iGMK80D-075-DM ■ K-AA-000-GXXXM01, reduction 50:1; iGMK80D-075-DM BK-AA-000-G245, reduction 245:1; Per exact family configuration. Model-code options are not interchangeable. Only configurations equipped with the corresponding interface or safety option; optional protocol rows do not mean every SKU has every interface. Source column reduction ratio retained to distinguish GXXX configurations.

iGMK集成式伺服减速电机
总线功能 Modbus/RS485 最大支持115.2Kbps,可使用Modbus RTU协议与控制器通讯

Motor brake holding torque

iGMK60D-040-DM ■ K-AA-000-GXXX, reduction 10:1: 2; iGMK60D-040-DM ■ K-AA-000-GXXX, reduction 35:1: 2; iGMK60D-040-DM ■ K-AA-000-GXXX, reduction 50:1: 2; i GMK80D-040-DM ■ K-AA-000-G035, reduction 35:1: 1.5; iGMK80D-075-DM ■ K-AA-000-GXXX, reduction 35:1: 4; iGMK80D-075-DM ■ K-AA-000-GXXX, reduction 50:1: 4; iGMK60D-040-DM ■ K-AA-000-G035M01, reduction 35:1: 2; i GMK80D-040-DM ■ K-AA-000-G035M01, reduction 35:1: 1.5; i GMK80D-040-DM BK-AA-000-G245, reduction 245:1: 1.5; iGMK80D-075-DM ■ K-AA-000-GXXXM01, reduction 35:1: 4; iGMK80D-075-DM ■ K-AA-000-GXXXM01, reduction 50:1: 4; iGMK80D-075-DM BK-AA-000-G245, reduction 245:1: 4 N·m

Manufacturer specification

Configuration: Values apply to the exact configurations named in the value.; Per exact family configuration. Model-code options are not interchangeable. Source column reduction ratio retained to distinguish GXXX configurations. Applies to the brake-equipped option only.

iGMK集成式伺服减速电机
抱闸保持扭矩(N.m) 2 1.5 4 2 1.5 4

Motor maximum current

iGMK60D-040-DM ■ K-AA-000-GXXX, reduction 10:1: 32.1; iGMK60D-040-DM ■ K-AA-000-GXXX, reduction 35:1: 32.1; iGMK60D-040-DM ■ K-AA-000-GXXX, reduction 50:1: 32.1; i GMK80D-040-DM ■ K-AA-000-G035, reduction 35:1: 33; iGMK80D-075-DM ■ K-AA-000-GXXX, reduction 35:1: 62; iGMK80D-075-DM ■ K-AA-000-GXXX, reduction 50:1: 62; iGMK60D-040-DM ■ K-AA-000-G035M01, reduction 35:1: 32.1; i GMK80D-040-DM ■ K-AA-000-G035M01, reduction 35:1: 33; i GMK80D-040-DM BK-AA-000-G245, reduction 245:1: 33; iGMK80D-075-DM ■ K-AA-000-GXXXM01, reduction 35:1: 62; iGMK80D-075-DM ■ K-AA-000-GXXXM01, reduction 50:1: 62; iGMK80D-075-DM BK-AA-000-G245, reduction 245:1: 62

Manufacturer specification

Configuration: Values apply to the exact configurations named in the value.; Per exact family configuration. Model-code options are not interchangeable. Source column reduction ratio retained to distinguish GXXX configurations.

iGMK集成式伺服减速电机
最大电流Im(A) 32.1 33 62 32.1 33 62

Motor rated current

iGMK60D-040-DM ■ K-AA-000-GXXX, reduction 10:1: 10; iGMK60D-040-DM ■ K-AA-000-GXXX, reduction 35:1: 10; iGMK60D-040-DM ■ K-AA-000-GXXX, reduction 50:1: 10; i GMK80D-040-DM ■ K-AA-000-G035, reduction 35:1: 10.3; iGMK80D-075-DM ■ K-AA-000-GXXX, reduction 35:1: 18.1; iGMK80D-075-DM ■ K-AA-000-GXXX, reduction 50:1: 18.1; iGMK60D-040-DM ■ K-AA-000-G035M01, reduction 35:1: 10; i GMK80D-040-DM ■ K-AA-000-G035M01, reduction 35:1: 10.3; i GMK80D-040-DM BK-AA-000-G245, reduction 245:1: 10.3; iGMK80D-075-DM ■ K-AA-000-GXXXM01, reduction 35:1: 18.1; iGMK80D-075-DM ■ K-AA-000-GXXXM01, reduction 50:1: 18.1; iGMK80D-075-DM BK-AA-000-G245, reduction 245:1: 18.1

Manufacturer specification

Configuration: Values apply to the exact configurations named in the value.; Per exact family configuration. Model-code options are not interchangeable. Source column reduction ratio retained to distinguish GXXX configurations.

iGMK集成式伺服减速电机
额定电流In(A) 10 10.3 18.1 10 10.3 18.1

Motor rated power

iGMK60D-040-DM ■ K-AA-000-GXXX, reduction 10:1: 400; iGMK60D-040-DM ■ K-AA-000-GXXX, reduction 35:1: 400; iGMK60D-040-DM ■ K-AA-000-GXXX, reduction 50:1: 400; i GMK80D-040-DM ■ K-AA-000-G035, reduction 35:1: 400; iGMK80D-075-DM ■ K-AA-000-GXXX, reduction 35:1: 750; iGMK80D-075-DM ■ K-AA-000-GXXX, reduction 50:1: 750; iGMK60D-040-DM ■ K-AA-000-G035M01, reduction 35:1: 400; i GMK80D-040-DM ■ K-AA-000-G035M01, reduction 35:1: 400; i GMK80D-040-DM BK-AA-000-G245, reduction 245:1: 400; iGMK80D-075-DM ■ K-AA-000-GXXXM01, reduction 35:1: 750; iGMK80D-075-DM ■ K-AA-000-GXXXM01, reduction 50:1: 750; iGMK80D-075-DM BK-AA-000-G245, reduction 245:1: 750 W

Manufacturer specification

Configuration: Values apply to the exact configurations named in the value.; Per exact family configuration. Model-code options are not interchangeable. Source column reduction ratio retained to distinguish GXXX configurations.

iGMK集成式伺服减速电机
额定功率Pn(W) 400 400 750 400 400 750

Motor rated speed

3,000 rpm

Manufacturer specification

Configuration: iGMK60D-040-DM ■ K-AA-000-GXXX, reduction 10:1; iGMK60D-040-DM ■ K-AA-000-GXXX, reduction 35:1; iGMK60D-040-DM ■ K-AA-000-GXXX, reduction 50:1; i GMK80D-040-DM ■ K-AA-000-G035, reduction 35:1; iGMK80D-075-DM ■ K-AA-000-GXXX, reduction 35:1; iGMK80D-075-DM ■ K-AA-000-GXXX, reduction 50:1; iGMK60D-040-DM ■ K-AA-000-G035M01, reduction 35:1; i GMK80D-040-DM ■ K-AA-000-G035M01, reduction 35:1; i GMK80D-040-DM BK-AA-000-G245, reduction 245:1; iGMK80D-075-DM ■ K-AA-000-GXXXM01, reduction 35:1; iGMK80D-075-DM ■ K-AA-000-GXXXM01, reduction 50:1; iGMK80D-075-DM BK-AA-000-G245, reduction 245:1; Per exact family configuration. Model-code options are not interchangeable. Source column reduction ratio retained to distinguish GXXX configurations.

iGMK集成式伺服减速电机
额定转速n N (rpm) 3000 3000 3000 3000 3000 3000

Motor rated torque

iGMK60D-040-DM ■ K-AA-000-GXXX, reduction 10:1: 1.27; iGMK60D-040-DM ■ K-AA-000-GXXX, reduction 35:1: 1.27; iGMK60D-040-DM ■ K-AA-000-GXXX, reduction 50:1: 1.27; i GMK80D-040-DM ■ K-AA-000-G035, reduction 35:1: 1.27; iGMK80D-075-DM ■ K-AA-000-GXXX, reduction 35:1: 2.39; iGMK80D-075-DM ■ K-AA-000-GXXX, reduction 50:1: 2.39; iGMK60D-040-DM ■ K-AA-000-G035M01, reduction 35:1: 1.27; i GMK80D-040-DM ■ K-AA-000-G035M01, reduction 35:1: 1.27; i GMK80D-040-DM BK-AA-000-G245, reduction 245:1: 1.27; iGMK80D-075-DM ■ K-AA-000-GXXXM01, reduction 35:1: 2.39; iGMK80D-075-DM ■ K-AA-000-GXXXM01, reduction 50:1: 2.39; iGMK80D-075-DM BK-AA-000-G245, reduction 245:1: 2.39 N·m

Manufacturer specification

Configuration: Values apply to the exact configurations named in the value.; Per exact family configuration. Model-code options are not interchangeable. Source column reduction ratio retained to distinguish GXXX configurations.

iGMK集成式伺服减速电机
额定转矩Ts(N.m) 1.27 1.27 2.39 1.27 1.27 2.39

Mounting orientation

Motor flange mounting(10, 35,50ratio ) side-lug mounting(245ratio )

Manufacturer specification

Configuration: iGMK60D-040-DM ■ K-AA-000-GXXX, reduction 10:1; iGMK60D-040-DM ■ K-AA-000-GXXX, reduction 35:1; iGMK60D-040-DM ■ K-AA-000-GXXX, reduction 50:1; i GMK80D-040-DM ■ K-AA-000-G035, reduction 35:1; iGMK80D-075-DM ■ K-AA-000-GXXX, reduction 35:1; iGMK80D-075-DM ■ K-AA-000-GXXX, reduction 50:1; iGMK60D-040-DM ■ K-AA-000-G035M01, reduction 35:1; i GMK80D-040-DM ■ K-AA-000-G035M01, reduction 35:1; i GMK80D-040-DM BK-AA-000-G245, reduction 245:1; iGMK80D-075-DM ■ K-AA-000-GXXXM01, reduction 35:1; iGMK80D-075-DM ■ K-AA-000-GXXXM01, reduction 50:1; iGMK80D-075-DM BK-AA-000-G245, reduction 245:1; Per exact family configuration. Model-code options are not interchangeable. Source column reduction ratio retained to distinguish GXXX configurations.

iGMK集成式伺服减速电机
安装方式 电机法兰安装(10,35,50速比) 侧耳安装(245速比)

Operating humidity

20%~80%RH(noncondensing)

Manufacturer specification

Configuration: iGMK60D-040-DM ■ K-AA-000-GXXX, reduction 10:1; iGMK60D-040-DM ■ K-AA-000-GXXX, reduction 35:1; iGMK60D-040-DM ■ K-AA-000-GXXX, reduction 50:1; i GMK80D-040-DM ■ K-AA-000-G035, reduction 35:1; iGMK80D-075-DM ■ K-AA-000-GXXX, reduction 35:1; iGMK80D-075-DM ■ K-AA-000-GXXX, reduction 50:1; iGMK60D-040-DM ■ K-AA-000-G035M01, reduction 35:1; i GMK80D-040-DM ■ K-AA-000-G035M01, reduction 35:1; i GMK80D-040-DM BK-AA-000-G245, reduction 245:1; iGMK80D-075-DM ■ K-AA-000-GXXXM01, reduction 35:1; iGMK80D-075-DM ■ K-AA-000-GXXXM01, reduction 50:1; iGMK80D-075-DM BK-AA-000-G245, reduction 245:1; Per exact family configuration. Model-code options are not interchangeable. Source column reduction ratio retained to distinguish GXXX configurations.

iGMK集成式伺服减速电机
工作湿度 20%~80%RH(不结露)

Operating temperature

-20°C~40°C(no freezing),operating temperature over 40°C, drive must be derated(derate per 1 degree by 2%)

Manufacturer specification

Configuration: iGMK60D-040-DM ■ K-AA-000-GXXX, reduction 10:1; iGMK60D-040-DM ■ K-AA-000-GXXX, reduction 35:1; iGMK60D-040-DM ■ K-AA-000-GXXX, reduction 50:1; i GMK80D-040-DM ■ K-AA-000-G035, reduction 35:1; iGMK80D-075-DM ■ K-AA-000-GXXX, reduction 35:1; iGMK80D-075-DM ■ K-AA-000-GXXX, reduction 50:1; iGMK60D-040-DM ■ K-AA-000-G035M01, reduction 35:1; i GMK80D-040-DM ■ K-AA-000-G035M01, reduction 35:1; i GMK80D-040-DM BK-AA-000-G245, reduction 245:1; iGMK80D-075-DM ■ K-AA-000-GXXXM01, reduction 35:1; iGMK80D-075-DM ■ K-AA-000-GXXXM01, reduction 50:1; iGMK80D-075-DM BK-AA-000-G245, reduction 245:1; Per exact family configuration. Model-code options are not interchangeable. Source column reduction ratio retained to distinguish GXXX configurations.

iGMK集成式伺服减速电机
工作温度 -20℃~40℃(不结冰),工作温度超过 40°C,驱动器需降额使用(每1度降额2%)

Overvoltage alarm threshold

default 68±2V VDC

Manufacturer specification

Configuration: iGMK60D-040-DM ■ K-AA-000-GXXX, reduction 10:1; iGMK60D-040-DM ■ K-AA-000-GXXX, reduction 35:1; iGMK60D-040-DM ■ K-AA-000-GXXX, reduction 50:1; i GMK80D-040-DM ■ K-AA-000-G035, reduction 35:1; iGMK80D-075-DM ■ K-AA-000-GXXX, reduction 35:1; iGMK80D-075-DM ■ K-AA-000-GXXX, reduction 50:1; iGMK60D-040-DM ■ K-AA-000-G035M01, reduction 35:1; i GMK80D-040-DM ■ K-AA-000-G035M01, reduction 35:1; i GMK80D-040-DM BK-AA-000-G245, reduction 245:1; iGMK80D-075-DM ■ K-AA-000-GXXXM01, reduction 35:1; iGMK80D-075-DM ■ K-AA-000-GXXXM01, reduction 50:1; iGMK80D-075-DM BK-AA-000-G245, reduction 245:1; Per exact family configuration. Model-code options are not interchangeable. Source column reduction ratio retained to distinguish GXXX configurations.

iGMK集成式伺服减速电机
过压报警电压 默认68±2V

Undervoltage alarm threshold

default 18±2V VDC

Manufacturer specification

Configuration: iGMK60D-040-DM ■ K-AA-000-GXXX, reduction 10:1; iGMK60D-040-DM ■ K-AA-000-GXXX, reduction 35:1; iGMK60D-040-DM ■ K-AA-000-GXXX, reduction 50:1; i GMK80D-040-DM ■ K-AA-000-G035, reduction 35:1; iGMK80D-075-DM ■ K-AA-000-GXXX, reduction 35:1; iGMK80D-075-DM ■ K-AA-000-GXXX, reduction 50:1; iGMK60D-040-DM ■ K-AA-000-G035M01, reduction 35:1; i GMK80D-040-DM ■ K-AA-000-G035M01, reduction 35:1; i GMK80D-040-DM BK-AA-000-G245, reduction 245:1; iGMK80D-075-DM ■ K-AA-000-GXXXM01, reduction 35:1; iGMK80D-075-DM ■ K-AA-000-GXXXM01, reduction 50:1; iGMK80D-075-DM BK-AA-000-G245, reduction 245:1; Per exact family configuration. Model-code options are not interchangeable. Source column reduction ratio retained to distinguish GXXX configurations.

iGMK集成式伺服减速电机
欠压报警电压 默认18±2V
