Product details

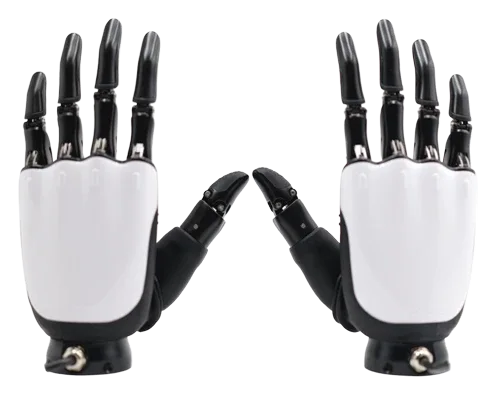

ROH-A002

ROH-A002 灵巧手

Dexterous Hand

OYMotion Technologies Co., Ltd.

ROH-A002

About this product

ROH-A002 is OYMotion's anthropomorphic robotic end effector with five independently moving fingers, six active degrees of freedom and 11 moving joints. Integrated motor drivers and PID control support programmable pinching, grasping and gestures. The official page lists a 580 ±5 g mass, ±1 mm repeatability and UART, RS485 and CAN interfaces, alongside SDK, ROS, ROS2 and URDF support. Intended uses include humanoids, inspection robots and research equipment. The manufacturer's static finger-load and bent-finger lifting figures describe specific test conditions rather than unrestricted active gripping capability.

Model
ROH-A002
Category
Dexterous Hand

Specifications & evidence

Source-backed claims. Configuration, workload and evidence type matter when comparing products.

Active degrees of freedom

6

Manufacturer specification

Manual version: V1.1.5; Measurement scope: As specified for this exact model in its current official manual

oy-ROH-A002
The ROHAND dexterous hand has a total of 11 motion joints, with 6 built-in motor drivers and the motor control circuit. With 6 active degrees of freedom, and a built-in PID motor control algorithm, the hand can mimic the human hand to achieve a variety of grasping grips. Typical applications include robot end effectors, educational and scientific research equipment, bionic prosthetics, etc. ROH-A002 dexterous hand with UART, RS485 or CAN physical interface, support SerialCtrl dedicated serial protocol, ModBus-RTU protocol and CAN protocol, can provide ROS / ROS2 platforms for secondary development with SDK.

Closing time

0.7 second

Manufacturer specification

Manual version: V1.1.5; Measurement scope: As specified for this exact model in its current official manual

oy-ROH-A002
Bending/stretching time for full range at maximum speed 0.7 second

Communication interface

UART, RS485, CAN

Manufacturer specification

Manual version: V1.1.5; Measurement scope: As specified for this exact model in its current official manual

oy-ROH-A002
The ROHAND dexterous hand has a total of 11 motion joints, with 6 built-in motor drivers and the motor control circuit. With 6 active degrees of freedom, and a built-in PID motor control algorithm, the hand can mimic the human hand to achieve a variety of grasping grips. Typical applications include robot end effectors, educational and scientific research equipment, bionic prosthetics, etc. ROH-A002 dexterous hand with UART, RS485 or CAN physical interface, support SerialCtrl dedicated serial protocol, ModBus-RTU protocol and CAN protocol, can provide ROS / ROS2 platforms for secondary development with SDK.

Control modes

Built-in PID motor control

Manufacturer specification

Manual version: V1.1.5; Measurement scope: As specified for this exact model in its current official manual

oy-ROH-A002
The ROHAND dexterous hand has a total of 11 motion joints, with 6 built-in motor drivers and the motor control circuit. With 6 active degrees of freedom, and a built-in PID motor control algorithm, the hand can mimic the human hand to achieve a variety of grasping grips. Typical applications include robot end effectors, educational and scientific research equipment, bionic prosthetics, etc. ROH-A002 dexterous hand with UART, RS485 or CAN physical interface, support SerialCtrl dedicated serial protocol, ModBus-RTU protocol and CAN protocol, can provide ROS / ROS2 platforms for secondary development with SDK.

Design service life

3 years

Manufacturer specification

Manual version: V1.1.5; Measurement scope: As specified for this exact model in its current official manual

oy-ROH-A002
Design service life-span 3 years

Fingertip force bent

≧1.0 Kgf

Manufacturer specification

Manual version: V1.1.5; Measurement scope: As specified for this exact model in its current official manual

oy-ROH-A002
Active force of each fingertip on bended state ≧1.0 Kgf

Fingertip force straight

≧0.5 Kgf

Manufacturer specification

Manual version: V1.1.5; Measurement scope: As specified for this exact model in its current official manual

oy-ROH-A002
Active force of each fingertip on stretched state ≧0.5 Kgf

Height

183 mm

Manufacturer specification

Manual version: V1.1.5; Measurement scope: As specified for this exact model in its current official manual

oy-ROH-A002
Vertical distance from the tip of the middle finger to the wrist 183mm

Joint count

11

Manufacturer specification

Manual version: V1.1.5; Measurement scope: As specified for this exact model in its current official manual

oy-ROH-A002
The ROHAND dexterous hand has a total of 11 motion joints, with 6 built-in motor drivers and the motor control circuit. With 6 active degrees of freedom, and a built-in PID motor control algorithm, the hand can mimic the human hand to achieve a variety of grasping grips. Typical applications include robot end effectors, educational and scientific research equipment, bionic prosthetics, etc. ROH-A002 dexterous hand with UART, RS485 or CAN physical interface, support SerialCtrl dedicated serial protocol, ModBus-RTU protocol and CAN protocol, can provide ROS / ROS2 platforms for secondary development with SDK.

Mass

580g±5g

Manufacturer specification

Manual version: V1.1.5; Measurement scope: As specified for this exact model in its current official manual

oy-ROH-A002
Weight (including wrist) 580g±5g

Materials

Aluminum alloy, zinc alloy, stainless steel, silicone, plastic.

Manufacturer specification

Manual version: V1.1.5; Measurement scope: As specified for this exact model in its current official manual

oy-ROH-A002
5.1. Material Aluminum alloy, zinc alloy, stainless steel, silicone, plastic. 5.2.

Operating environment

temperature: -10 degrees Celsius ~ +40 degrees Celsius Humidity: Maximum relative humidity 85%

Manufacturer specification

Manual version: V1.1.5; Measurement scope: As specified for this exact model in its current official manual

oy-ROH-A002
Working environment temperature: -10 degrees Celsius ~ +40 degrees Celsius Humidity: Maximum relative humidity 85%

Operating voltage

12–48 V DC

Manufacturer specification

Configuration: CAN interface (-C suffix); Manual version: V1.1.5; Measurement scope: As specified for this exact model in its current official manual

oy-ROH-A002
ROH-A002 dexterous hand adopts RS485: DC 12-24V, CAN: DC 12-48V power supply, rated power 48W.

Operating voltage

12–24 V DC

Manufacturer specification

Configuration: RS485 interface; Manual version: V1.1.5; Measurement scope: As specified for this exact model in its current official manual

oy-ROH-A002
ROH-A002 dexterous hand adopts RS485: DC 12-24V, CAN: DC 12-48V power supply, rated power 48W.

Palm width

83 mm

Manufacturer specification

Manual version: V1.1.5; Measurement scope: As specified for this exact model in its current official manual

oy-ROH-A002
Maximum palm width 83 mm

Passive finger payload bent

10 Kg

Manufacturer specification

Manual version: V1.1.5; Measurement scope: As specified for this exact model in its current official manual

oy-ROH-A002
Maximum passive load for each finger on bended state 10 Kg

Passive finger payload straight

8 Kg

Manufacturer specification

Manual version: V1.1.5; Measurement scope: As specified for this exact model in its current official manual

oy-ROH-A002
Maximum passive load for each finger on stretched state 8 Kg

Passive four finger payload bent

30 Kg

Manufacturer specification

Manual version: V1.1.5; Measurement scope: As specified for this exact model in its current official manual

oy-ROH-A002
Maximum passive load for four fingers on bended state 30 Kg

Rated power

48 W

Manufacturer specification

Manual version: V1.1.5; Measurement scope: As specified for this exact model in its current official manual

oy-ROH-A002
ROH-A002 dexterous hand adopts RS485: DC 12-24V, CAN: DC 12-48V power supply, rated power 48W.

Sdk support

ROS / ROS2 development SDK

Manufacturer specification

Manual version: V1.1.5; Measurement scope: As specified for this exact model in its current official manual

oy-ROH-A002
The ROHAND dexterous hand has a total of 11 motion joints, with 6 built-in motor drivers and the motor control circuit. With 6 active degrees of freedom, and a built-in PID motor control algorithm, the hand can mimic the human hand to achieve a variety of grasping grips. Typical applications include robot end effectors, educational and scientific research equipment, bionic prosthetics, etc. ROH-A002 dexterous hand with UART, RS485 or CAN physical interface, support SerialCtrl dedicated serial protocol, ModBus-RTU protocol and CAN protocol, can provide ROS / ROS2 platforms for secondary development with SDK.

Thumb fingertip force

≧1.0 Kgf

Manufacturer specification

Manual version: V1.1.5; Measurement scope: As specified for this exact model in its current official manual

oy-ROH-A002
Maximum active force of thumb tip ≧1.0 Kgf

Thumb flexion angle

0~50 Degrees

Manufacturer specification

Manual version: V1.1.5; Measurement scope: As specified for this exact model in its current official manual

oy-ROH-A002
Maximum opening and closing angle of thumb to palm 0~50 Degrees

Thumb lateral rotation

0~90 Degrees

Manufacturer specification

Manual version: V1.1.5; Measurement scope: As specified for this exact model in its current official manual

oy-ROH-A002
Thumb lateral rotation angle 0~90 Degrees

Thumb length

113 mm

Manufacturer specification

Manual version: V1.1.5; Measurement scope: As specified for this exact model in its current official manual

oy-ROH-A002
Thumb length 113 mm

Thumb rotation time

0.7 second

Manufacturer specification

Manual version: V1.1.5; Measurement scope: As specified for this exact model in its current official manual

oy-ROH-A002
Rotation time of thumb for full range at maximum speed 0.7 second

Thumb side angle

0~31 Degrees

Manufacturer specification

Manual version: V1.1.5; Measurement scope: As specified for this exact model in its current official manual

oy-ROH-A002
Maximum opening and closing angle of the thumb side 0~31 Degrees

Thumb tip to wrist

95 mm

Manufacturer specification

Manual version: V1.1.5; Measurement scope: As specified for this exact model in its current official manual

oy-ROH-A002
Vertical distance from thumb tip to wrist 95 mm

Wrist diameter

49 mm

Manufacturer specification

Manual version: V1.1.5; Measurement scope: As specified for this exact model in its current official manual

oy-ROH-A002
Wrist diameter 49 mm
