AKE60-8 KV80

Motion control and actuation

Nanchang Kude Intelligent Technology Co., Ltd.

AKE60-8 KV80

About this product

AKE60-8 KV80 is a quasi-direct-drive actuator in the CubeMars AKE portfolio. The manufacturer lists rated voltage 24 V, no load speed 240 rpm, rated torque 5 Nm, mass 260 g.

Model
AKE60-8 KV80
Category
Motion control and actuation, Actuators & Joint Modules, Components

Product family: CubeMars AKE

Specifications & evidence

Source-backed claims. Configuration, workload and evidence type matter when comparing products.

Application

Exoskeleton

Manufacturer specification

Manufacturer core-data table for AKE60-8 KV80; slash-separated values preserve the listed voltage/configuration order.

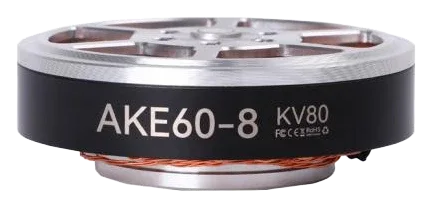

AKE60-8 KV80 Quasi Direct Drive Actuator - 260g, 8:1 Ratio
Application Exoskeleton Peak torque (Nm) 12.5

Backlash

9 arcmin

Manufacturer specification

Manufacturer core-data table for AKE60-8 KV80; slash-separated values preserve the listed voltage/configuration order.

AKE60-8 KV80 Quasi Direct Drive Actuator - 260g, 8:1 Ratio
Backlash (arcmin) 9 Km (Nm/√W) 0.15

Driving way

FOC

Manufacturer specification

Manufacturer core-data table for AKE60-8 KV80; slash-separated values preserve the listed voltage/configuration order.

AKE60-8 KV80 Quasi Direct Drive Actuator - 260g, 8:1 Ratio
Driving way FOC Peak current (ADC) 12

Electrical time constant

1.7 ms

Manufacturer specification

Manufacturer core-data table for AKE60-8 KV80; slash-separated values preserve the listed voltage/configuration order.

AKE60-8 KV80 Quasi Direct Drive Actuator - 260g, 8:1 Ratio
No-load speed (rpm) 240 Electrical time constant (ms) 1.7

Inertia

647.39 gcm²

Manufacturer specification

Manufacturer core-data table for AKE60-8 KV80; slash-separated values preserve the listed voltage/configuration order.

AKE60-8 KV80 Quasi Direct Drive Actuator - 260g, 8:1 Ratio
Pole pairs 14 Inertia (gcm²) 647.39

Insulation class

F

Manufacturer specification

Manufacturer core-data table for AKE60-8 KV80; slash-separated values preserve the listed voltage/configuration order.

AKE60-8 KV80 Quasi Direct Drive Actuator - 260g, 8:1 Ratio
Insulation class F Ke (V/krpm) 12.5

Insulation high voltage

500 V

Manufacturer specification

Manufacturer core-data table for AKE60-8 KV80; slash-separated values preserve the listed voltage/configuration order.

AKE60-8 KV80 Quasi Direct Drive Actuator - 260g, 8:1 Ratio
Insulation High-voltage (V) 500 Phase to Phase resistance (mΩ) 577

Insulation resistance

10 MΩ

Manufacturer specification

Manufacturer core-data table for AKE60-8 KV80; slash-separated values preserve the listed voltage/configuration order.

AKE60-8 KV80 Quasi Direct Drive Actuator - 260g, 8:1 Ratio
Insulation resistance (MΩ) 10 Phase to Phase inductance (μH) 704

Ke

12.5 V/krpm

Manufacturer specification

Manufacturer core-data table for AKE60-8 KV80; slash-separated values preserve the listed voltage/configuration order.

AKE60-8 KV80 Quasi Direct Drive Actuator - 260g, 8:1 Ratio
Insulation class F Ke (V/krpm) 12.5

Km

0.15 Nm/√W

Manufacturer specification

Manufacturer core-data table for AKE60-8 KV80; slash-separated values preserve the listed voltage/configuration order.

AKE60-8 KV80 Quasi Direct Drive Actuator - 260g, 8:1 Ratio
Backlash (arcmin) 9 Km (Nm/√W) 0.15

Kt

0.13 Nm/A

Manufacturer specification

Manufacturer core-data table for AKE60-8 KV80; slash-separated values preserve the listed voltage/configuration order.

AKE60-8 KV80 Quasi Direct Drive Actuator - 260g, 8:1 Ratio
Winding type star Kt (Nm/A) 0.13

Kv

80 rpm/V

Manufacturer specification

Manufacturer core-data table for AKE60-8 KV80; slash-separated values preserve the listed voltage/configuration order.

AKE60-8 KV80 Quasi Direct Drive Actuator - 260g, 8:1 Ratio
Operation ambient temperature -20℃~50℃ Kv (rpm/V) 80

Mass

260 g

Manufacturer specification

Manufacturer core-data table for AKE60-8 KV80; slash-separated values preserve the listed voltage/configuration order.

AKE60-8 KV80 Quasi Direct Drive Actuator - 260g, 8:1 Ratio
Rated torque (Nm) 5 Weight (g) 260

Maximum torque weight ratio

46 Nm/kg

Manufacturer specification

Manufacturer core-data table for AKE60-8 KV80; slash-separated values preserve the listed voltage/configuration order.

AKE60-8 KV80 Quasi Direct Drive Actuator - 260g, 8:1 Ratio
Rated speed (rpm) 180 Maximum torque weight ratio (Nm/kg) 46

Mechanical time constant

1.2 ms

Manufacturer specification

Manufacturer core-data table for AKE60-8 KV80; slash-separated values preserve the listed voltage/configuration order.

AKE60-8 KV80 Quasi Direct Drive Actuator - 260g, 8:1 Ratio
Rated voltage (V) 24 Mechanical time constant (ms) 1.2

No load speed

240 rpm

Manufacturer specification

Manufacturer core-data table for AKE60-8 KV80; slash-separated values preserve the listed voltage/configuration order.

AKE60-8 KV80 Quasi Direct Drive Actuator - 260g, 8:1 Ratio
No-load speed (rpm) 240 Electrical time constant (ms) 1.7

Operation ambient temperature

-20℃~50℃

Manufacturer specification

Manufacturer core-data table for AKE60-8 KV80; slash-separated values preserve the listed voltage/configuration order.

AKE60-8 KV80 Quasi Direct Drive Actuator - 260g, 8:1 Ratio
Operation ambient temperature -20℃~50℃ Kv (rpm/V) 80

Peak current

12 ADC

Manufacturer specification

Manufacturer core-data table for AKE60-8 KV80; slash-separated values preserve the listed voltage/configuration order.

AKE60-8 KV80 Quasi Direct Drive Actuator - 260g, 8:1 Ratio
Driving way FOC Peak current (ADC) 12

Peak torque

12.5 Nm

Manufacturer specification

Manufacturer core-data table for AKE60-8 KV80; slash-separated values preserve the listed voltage/configuration order.

AKE60-8 KV80 Quasi Direct Drive Actuator - 260g, 8:1 Ratio
Application Exoskeleton Peak torque (Nm) 12.5

Phase to phase inductance

704 μH

Manufacturer specification

Manufacturer core-data table for AKE60-8 KV80; slash-separated values preserve the listed voltage/configuration order.

AKE60-8 KV80 Quasi Direct Drive Actuator - 260g, 8:1 Ratio
Insulation resistance (MΩ) 10 Phase to Phase inductance (μH) 704

Phase to phase resistance

577 mΩ

Manufacturer specification

Manufacturer core-data table for AKE60-8 KV80; slash-separated values preserve the listed voltage/configuration order.

AKE60-8 KV80 Quasi Direct Drive Actuator - 260g, 8:1 Ratio
Insulation High-voltage (V) 500 Phase to Phase resistance (mΩ) 577

Pole pairs

14

Manufacturer specification

Manufacturer core-data table for AKE60-8 KV80; slash-separated values preserve the listed voltage/configuration order.

AKE60-8 KV80 Quasi Direct Drive Actuator - 260g, 8:1 Ratio
Pole pairs 14 Inertia (gcm²) 647.39

Rated current

4.8 ADC

Manufacturer specification

Manufacturer core-data table for AKE60-8 KV80; slash-separated values preserve the listed voltage/configuration order.

AKE60-8 KV80 Quasi Direct Drive Actuator - 260g, 8:1 Ratio
Rated current (ADC) 4.8 Reduction Ratio 8:1

Rated speed

180 rpm

Manufacturer specification

Manufacturer core-data table for AKE60-8 KV80; slash-separated values preserve the listed voltage/configuration order.

AKE60-8 KV80 Quasi Direct Drive Actuator - 260g, 8:1 Ratio
Rated speed (rpm) 180 Maximum torque weight ratio (Nm/kg) 46

Rated torque

5 Nm

Manufacturer specification

Manufacturer core-data table for AKE60-8 KV80; slash-separated values preserve the listed voltage/configuration order.

AKE60-8 KV80 Quasi Direct Drive Actuator - 260g, 8:1 Ratio
Rated torque (Nm) 5 Weight (g) 260

Rated voltage

24 V

Manufacturer specification

Manufacturer core-data table for AKE60-8 KV80; slash-separated values preserve the listed voltage/configuration order.

AKE60-8 KV80 Quasi Direct Drive Actuator - 260g, 8:1 Ratio
Rated voltage (V) 24 Mechanical time constant (ms) 1.2

Reduction ratio

8:1

Manufacturer specification

Manufacturer core-data table for AKE60-8 KV80; slash-separated values preserve the listed voltage/configuration order.

AKE60-8 KV80 Quasi Direct Drive Actuator - 260g, 8:1 Ratio
Rated current (ADC) 4.8 Reduction Ratio 8:1

Winding type

star

Manufacturer specification

Manufacturer core-data table for AKE60-8 KV80; slash-separated values preserve the listed voltage/configuration order.

AKE60-8 KV80 Quasi Direct Drive Actuator - 260g, 8:1 Ratio
Winding type star Kt (Nm/A) 0.13
