Product details

LT-PG2-100A-OFM

Motion control and actuation

LH-TC

LT-PG2-100A-OFM

About this product

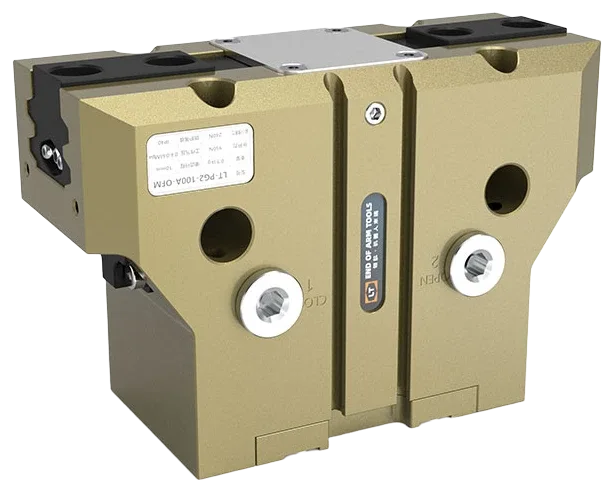

A two-finger pneumatic gripper for robotic workpiece handling.

Model
LT-PG2-100A-OFM
Category
Motion control and actuation, Components, Grippers & End Effectors

Product family: LT-PG2

Specifications & evidence

Source-backed claims. Configuration, workload and evidence type matter when comparing products.

Air consumption per double stroke

90 cm³

Manufacturer specification

Configuration: LT-PG2-100A-OFM; Manufacturer specification for this exact model; additional test conditions are not specified.

LT-PG2-100A-OFM 两指平行机械夹爪 - 郑州领航机器人有限公司
耗气量(cm3)(双程) 90.0

Ingress protection

IP40

Manufacturer specification

Configuration: LT-PG2-100A-OFM; Manufacturer specification for this exact model; additional test conditions are not specified.

LT-PG2-100A-OFM 两指平行机械夹爪 - 郑州领航机器人有限公司
防护等级(IP) IP40

Mass

0.93 kg

Manufacturer specification

Configuration: LT-PG2-100A-OFM; Manufacturer specification for this exact model; additional test conditions are not specified.

LT-PG2-100A-OFM 两指平行机械夹爪 - 郑州领航机器人有限公司
自重(kg) 0.93

Maximum air pressure

0.65 MPa

Manufacturer specification

Configuration: LT-PG2-100A-OFM; Manufacturer specification for this exact model; additional test conditions are not specified.

LT-PG2-100A-OFM 两指平行机械夹爪 - 郑州领航机器人有限公司
最大气压(Mpa) 0.65

Maximum axial force fz

2,000 N

Manufacturer specification

Configuration: LT-PG2-100A-OFM; Manufacturer specification for this exact model; additional test conditions are not specified.

LT-PG2-100A-OFM 两指平行机械夹爪 - 郑州领航机器人有限公司
最大轴向力Fz(N) 2000

Maximum finger length

135 mm

Manufacturer specification

Configuration: LT-PG2-100A-OFM; Manufacturer specification for this exact model; additional test conditions are not specified.

LT-PG2-100A-OFM 两指平行机械夹爪 - 郑州领航机器人有限公司
手指最大长度(mm) 135

Maximum finger mass

1.1 kg

Manufacturer specification

Configuration: LT-PG2-100A-OFM; Manufacturer specification for this exact model; additional test conditions are not specified.

LT-PG2-100A-OFM 两指平行机械夹爪 - 郑州领航机器人有限公司
手指最大重量(kg) 1.1

Minimum air pressure

0.4 MPa

Manufacturer specification

Configuration: LT-PG2-100A-OFM; Manufacturer specification for this exact model; additional test conditions are not specified.

LT-PG2-100A-OFM 两指平行机械夹爪 - 郑州领航机器人有限公司
最小气压(Mpa) 0.4

Minimum holding force

240 N

Manufacturer specification

Configuration: LT-PG2-100A-OFM; Manufacturer warns the force-enhanced gripper alone does not establish a force-retention system; retaining pressure with additional equipment such as a pressure-holding valve is required where force holding is needed.

LT-PG2-100A-OFM 两指平行机械夹爪 - 郑州领航机器人有限公司
最小保持力(N) 240

Moment mx

80 N·m

Manufacturer specification

Configuration: LT-PG2-100A-OFM; Manufacturer specification for this exact model; additional test conditions are not specified.

LT-PG2-100A-OFM 两指平行机械夹爪 - 郑州领航机器人有限公司
力矩Mx(N·m) 80

Moment my

115 N·m

Manufacturer specification

Configuration: LT-PG2-100A-OFM; Manufacturer specification for this exact model; additional test conditions are not specified.

LT-PG2-100A-OFM 两指平行机械夹爪 - 郑州领航机器人有限公司
力矩My(N·m) 115

Moment mz

70 N·m

Manufacturer specification

Configuration: LT-PG2-100A-OFM; Manufacturer specification for this exact model; additional test conditions are not specified.

LT-PG2-100A-OFM 两指平行机械夹爪 - 郑州领航机器人有限公司
力矩Mz(N·m) 70

Opening / closing time

0.05/0.09 s

Manufacturer specification

Configuration: LT-PG2-100A-OFM; Manufacturer specification for this exact model; additional test conditions are not specified.

LT-PG2-100A-OFM 两指平行机械夹爪 - 郑州领航机器人有限公司
开/合时间(s) 0.05/0.09

Opening force

1,010 N

Manufacturer specification

Configuration: LT-PG2-100A-OFM; Manufacturer specification for this exact model; additional test conditions are not specified.

LT-PG2-100A-OFM 两指平行机械夹爪 - 郑州领航机器人有限公司
张开力(N) 1010

Operating temperature

5℃~90℃ °C

Manufacturer specification

Configuration: LT-PG2-100A-OFM; Manufacturer specification for this exact model; additional test conditions are not specified.

2指抓手 - 郑州领航机器人有限公司
F11050003 LT-PG2-100A-OFM 10.00 / 1010 240 3.50 5℃~90℃ 查看详情>>

Order code

F11050003

Manufacturer specification

Configuration: LT-PG2-100A-OFM; Manufacturer specification for this exact model; additional test conditions are not specified.

2指抓手 - 郑州领航机器人有限公司
F11050003 LT-PG2-100A-OFM 10.00 / 1010 240 3.50 5℃~90℃ 查看详情>>

Rated air pressure

0.6 MPa

Manufacturer specification

Configuration: LT-PG2-100A-OFM; Manufacturer specification for this exact model; additional test conditions are not specified.

LT-PG2-100A-OFM 两指平行机械夹爪 - 郑州领航机器人有限公司
额定气压(Mpa) 0.6

Recommended workpiece mass

3.5 kg

Manufacturer specification

Configuration: LT-PG2-100A-OFM; Calculated with friction coefficient 0.1 and safety factor 2; robot acceleration is not considered. This is not an unrestricted dynamic payload rating.

LT-PG2-100A-OFM 两指平行机械夹爪 - 郑州领航机器人有限公司
建议工件重量(kg)① 3.5

Repeatability

0.01 mm

Manufacturer specification

Configuration: LT-PG2-100A-OFM; Manufacturer specification for this exact model; additional test conditions are not specified.

LT-PG2-100A-OFM 两指平行机械夹爪 - 郑州领航机器人有限公司
重复精度(mm) 0.01

Single-finger stroke

10 mm

Manufacturer specification

Configuration: LT-PG2-100A-OFM; Manufacturer specification for this exact model; additional test conditions are not specified.

LT-PG2-100A-OFM 两指平行机械夹爪 - 郑州领航机器人有限公司
单指行程(mm) 10
