Product details

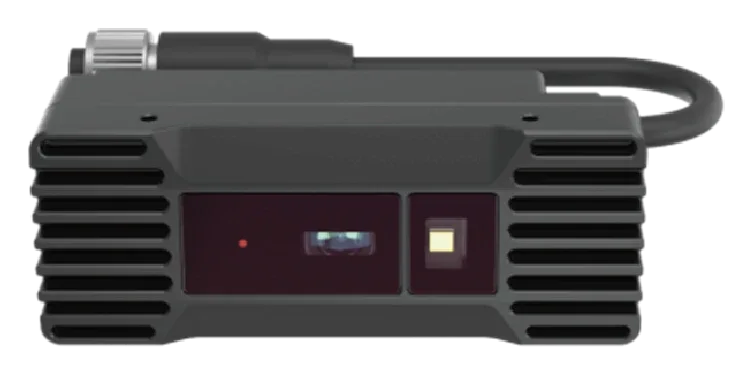

TM262-E1

Sensors and machine vision

Percipio

TM262-E1

About this product

Compact direct time-of-flight depth camera with a wide field of view and sunlight resistance. It is intended for indoor and outdoor depth sensing, including mobile-robot collision avoidance.

Model
TM262-E1
Category
Sensors and machine vision, Components
Product stage
Commercial

Specifications & evidence

Source-backed claims. Configuration, workload and evidence type matter when comparing products.

Cooling method

Passive cooling

Manufacturer specification

TM262-E1-Percipio.XYZ
Cooling method Passive cooling

Depth resolution

25fps@240*96(MAX)

Manufacturer specification

TM262-E1-Percipio.XYZ
Depth Resolution 25fps@240*96(MAX)

Depth technology

dToF

Manufacturer specification

TM262-E1-Percipio.XYZ
Technical Principles dToF

Dimensions

90 mm x 34 mm x 30 mm

Manufacturer specification

TM262-E1-Percipio.XYZ
Size 90 mm x 34 mm x 30 mm

Field of view

120°/50°

Manufacturer specification

TM262-E1-Percipio.XYZ
FOV(H/V) 120°/50°

Housing material

aluminium alloy

Manufacturer specification

TM262-E1-Percipio.XYZ
Housing Material aluminium alloy

Illumination wavelength

940 nm

Manufacturer specification

TM262-E1-Percipio.XYZ
Laser wavelength 940nm

Ip rating

IP65

Manufacturer specification

TM262-E1-Percipio.XYZ
Ingress Protection IP65

Light source

1 x infrared laser

Manufacturer specification

TM262-E1-Percipio.XYZ
Light source 1 x infrared laser

Mounting

Mechanical fastening (M3 thread)

Manufacturer specification

TM262-E1-Percipio.XYZ
Installation Method Mechanical fastening (M3 thread)

Operating temperature

0 ℃ ~ 45 ℃

Manufacturer specification

TM262-E1-Percipio.XYZ
Temperature 0 ℃ ~ 45 ℃

Output formats

Depth map, infrared image, point cloud

Manufacturer specification

TM262-E1-Percipio.XYZ
Output image Depth map, infrared image, point cloud

Power consumption

< 4.0 W

Manufacturer specification

TM262-E1-Percipio.XYZ
Power Consumption < 4.0 W

Sdk

Vcamera SDK: Supports C++, C# and Python. Camport4 SDK: Supports C++.

Manufacturer specification

TM262-E1-Percipio.XYZ
Software Development Kit Vcamera SDK: Supports C++, C# and Python. Camport4 SDK: Supports C++.

Shutter type

ROlling

Manufacturer specification

TM262-E1-Percipio.XYZ
Shutter Type ROlling

Storage temperature

-30 ℃ ~ 60 ℃

Manufacturer specification

TM262-E1-Percipio.XYZ
Storage temperature -30 ℃ ~ 60 ℃

Supply voltage

DC 24V ±20%

Manufacturer specification

TM262-E1-Percipio.XYZ
Supply voltage DC 24V ±20%

Supported platforms

Linux/Windows/ROS

Manufacturer specification

TM262-E1-Percipio.XYZ
Host operating system Linux/Windows/ROS

Weight

130 g

Manufacturer specification

TM262-E1-Percipio.XYZ
Weight 130 g
