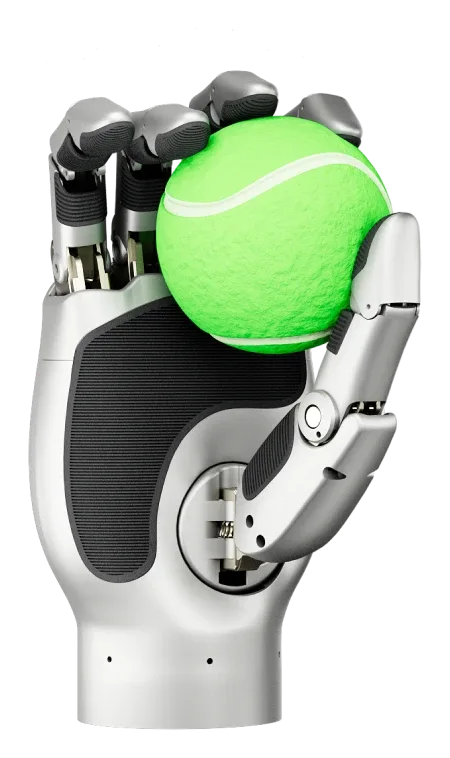

Linker Hand L20 Lite

Linker Hand L20 Lite 灵巧手

Dexterous Hand

LinkerBot

Linker Hand L20 Lite

About this product

Linker Hand L20 Lite is LinkerBot's general-purpose five-finger hand, combining worm gearing and linkage transmission. Ten active and 10 passive degrees of freedom support grasping, pinching, holding and tool manipulation. The manufacturer describes a compact structure intended to balance load capacity with finger mobility, including precision assembly and light industrial tasks. Its published table lists an 800 g mass, CAN and RS485 communication, a 1.2-second opening or closing time and repeatability below ±0.2 mm. These specifications apply to L20 Lite rather than the higher-actuation L20.

Model
Linker Hand L20 Lite
Category
Dexterous Hand

Specifications & evidence

Source-backed claims. Configuration, workload and evidence type matter when comparing products.

Active degrees of freedom

10

Manufacturer specification

灵心巧手
自由度:10个主自由度 + 10个被动自由度

Closing time

1.2 s

Manufacturer specification

Source section: Official product technical parameters

灵心巧手
开合时间:1.2s

Communication interface

CAN/RS485

Manufacturer specification

Source section: Official product technical parameters

灵心巧手
控制接口:CAN/RS485

Degrees of freedom

10 active + 10 passive DOF

Manufacturer specification

Source section: Official product technical parameters

灵心巧手
自由度:10个主自由度 + 10个被动自由度

Finger fingertip force

15 N

Manufacturer specification

Source section: Official product technical parameters

灵心巧手
四指最大指尖力:15N

Finger flexion angle

1.36rad(78°)

Manufacturer specification

Source section: Official product technical parameters

灵心巧手
四指弯曲角度:1.36rad(78°)

Finger flexion speed

1.11rad/s(63.33°/s)

Manufacturer specification

Source section: Official product technical parameters

灵心巧手
四指弯曲速度:1.11rad/s(63.33°/s)

Grasp force

80 N

Manufacturer specification

Source section: Official product technical parameters

灵心巧手
五指最大抓握力:80N

Mass

800 g

Manufacturer specification

Source section: Official product technical parameters

灵心巧手
重量:800g

Maximum current

3 A

Manufacturer specification

Source section: Official product technical parameters

灵心巧手
最大电流:3A

No load average current

0.5 A

Manufacturer specification

Source section: Official product technical parameters

灵心巧手
空载运动平均电流:0.5A

Operating voltage

DC24V±10%

Manufacturer specification

Source section: Official product technical parameters

灵心巧手
工作电压:DC24V±10%

Passive degrees of freedom

10

Manufacturer specification

灵心巧手
自由度:10个主自由度 + 10个被动自由度

Payload

25 kg

Manufacturer specification

Source section: Official product technical parameters

灵心巧手
最大负载:25kg

Quiescent current

0.2 A

Manufacturer specification

Source section: Official product technical parameters

灵心巧手
静态电流:0.2A

Repeatability

<±0.2mm

Manufacturer specification

Source section: Official product technical parameters

灵心巧手
重复定位精度:<±0.2mm

Thumb fingertip force

15 N

Manufacturer specification

Source section: Official product technical parameters

灵心巧手
拇指最大指尖力:15N

Thumb flexion speed

0.78rad/s(44.7°/s)

Manufacturer specification

Source section: Official product technical parameters

灵心巧手
拇指弯曲速度:0.78rad/s(44.7°/s)

Thumb lateral speed

1.1rad/s(63.21°/s)

Manufacturer specification

Source section: Official product technical parameters

灵心巧手
拇指侧摆速度:1.1rad/s(63.21°/s)

Thumb rotation range

0.75rad(43°)

Manufacturer specification

Source section: Official product technical parameters

灵心巧手
拇指横向旋转范围:0.75rad(43°)

Transmission mechanism

Linkage transmission

Manufacturer specification

Source section: Official product technical parameters

灵心巧手
传动方式:连杆传动
