Product details

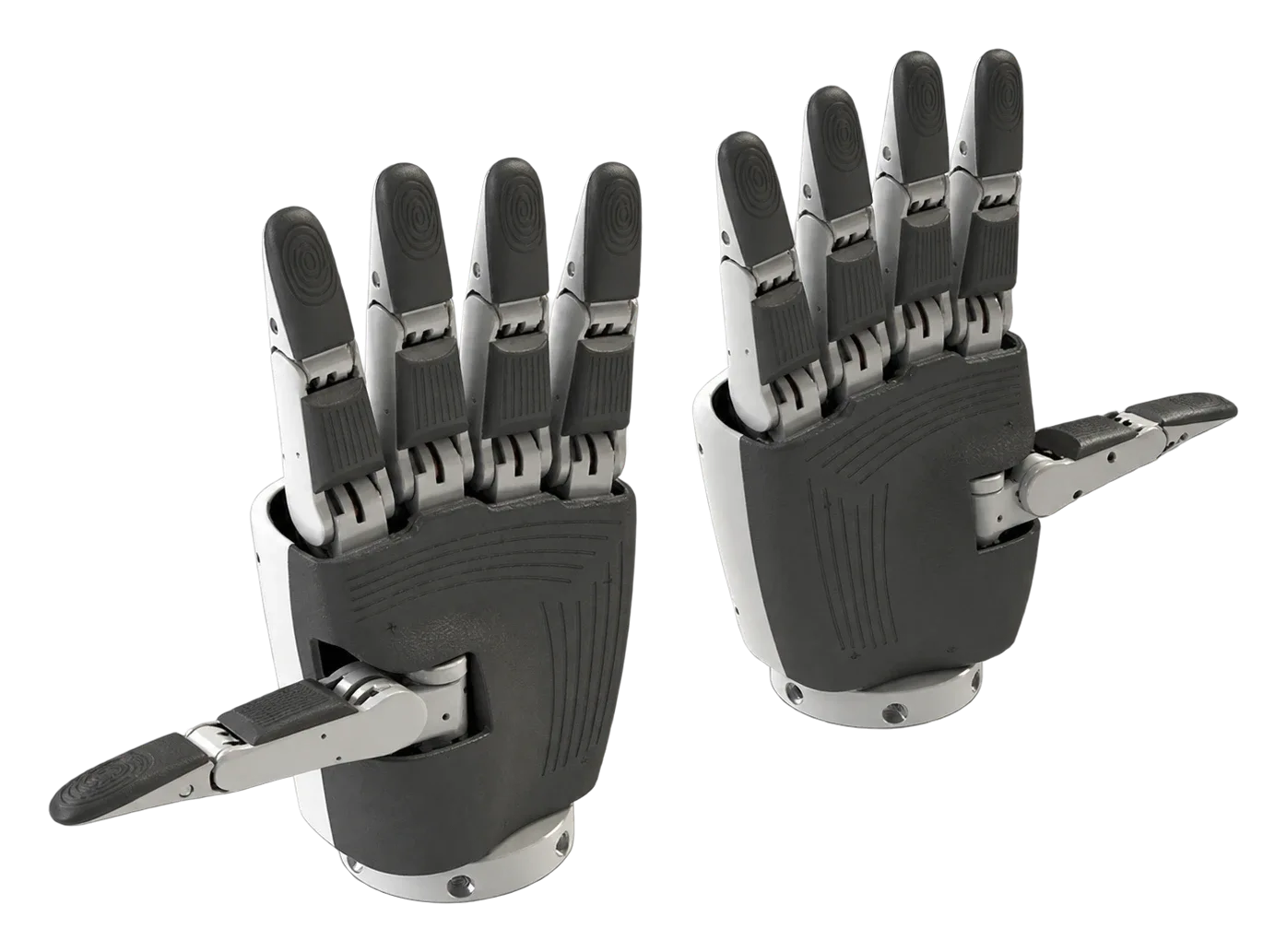

LZ-Pro V2

Dexterous Hand

Lingzhang

LZ-Pro V2

About this product

A tendon-driven industrial five-finger hand with 11 degrees of freedom, comprising six active and five passive degrees. It integrates 13 pressure sensors and supports robotic assembly, grasping and research.

Model
LZ-Pro V2
Category
Dexterous Hand

Specifications & evidence

Source-backed claims. Configuration, workload and evidence type matter when comparing products.

Active degrees of freedom

6

Manufacturer specification

LZ-Pro V2 工业级灵巧手 | 灵掌技术文档
自由度 (DOF) 11 (6 主动 / 5 从动)

Communication interfaces

RS485; EtherCAT; CANOpen

Manufacturer specification

LZ-Pro V2 工业级灵巧手 | 灵掌技术文档
通信协议 RS485 / EtherCAT / CANOpen

Degrees of freedom

11

Manufacturer specification

LZ-Pro V2 工业级灵巧手 | 灵掌技术文档
自由度 (DOF) 11 (6 主动 / 5 从动)

Drive type

Tendon-driven

Manufacturer specification

LZ-Pro V2 工业级灵巧手 | 灵掌技术文档
驱动类型 腱绳驱动

Finger count

5

Manufacturer specification

LZ-Pro V2 工业级灵巧手 | 灵掌技术文档
手指数量 5 指仿生结构

Materials

6061-T6 aluminium alloy; TC4 titanium alloy

Manufacturer specification

LZ-Pro V2 工业级灵巧手 | 灵掌技术文档
材质 6061-T6 铝合金、TC4 钛合金

Maximum pinch force

50 N

Manufacturer specification

LZ-Pro V2 工业级灵巧手 | 灵掌技术文档
最大捏合力量 50N

Maximum voltage

60 V

Manufacturer specification

LZ-Pro V2 工业级灵巧手 | 灵掌技术文档
工作电压 48V (Max 60V)

Operating voltage

48 V

Manufacturer specification

LZ-Pro V2 工业级灵巧手 | 灵掌技术文档
工作电压 48V (Max 60V)

Passive degrees of freedom

5

Manufacturer specification

LZ-Pro V2 工业级灵巧手 | 灵掌技术文档
自由度 (DOF) 11 (6 主动 / 5 从动)

Pressure sensor count

13

Manufacturer specification

LZ-Pro V2 工业级灵巧手 | 灵掌技术文档
传感器类型 13x 压力传感器

Rated payload

5 kg

Manufacturer specification

LZ-Pro V2 工业级灵巧手 | 灵掌技术文档
额定载荷 5 kg

Repeatability

±0.1 mm

Manufacturer specification

LZ-Pro V2 工业级灵巧手 | 灵掌技术文档
重复定位精度 ±0.1 mm
