FD1X5S

Components

Kinco

FD1X5S

About this product

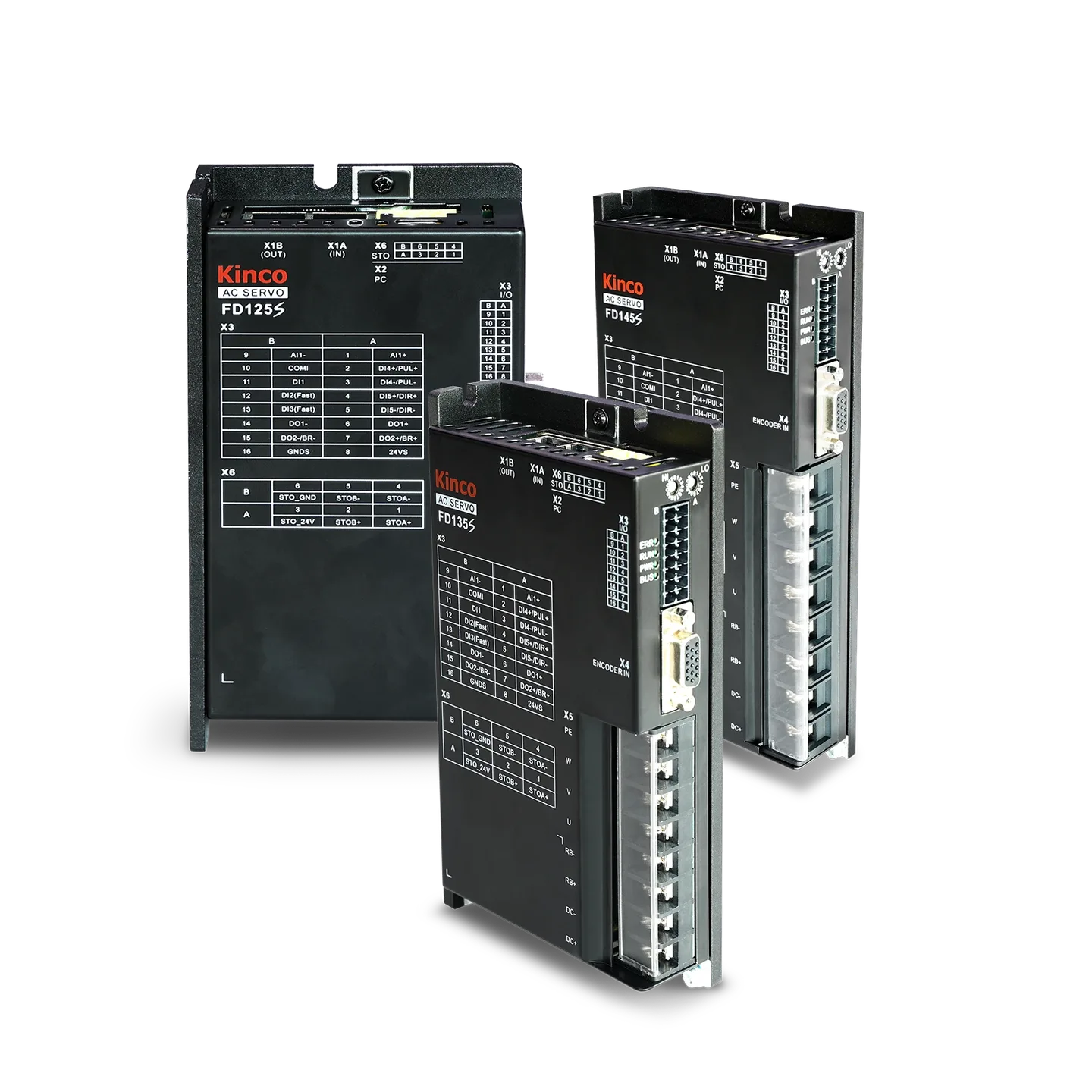

Fifth-generation low-voltage servo-drive family with industrial bus options and safe torque off. Kinco describes an automatic tuning platform with notch filtering and S-curve functions for reducing vibration.

Model
FD1X5S
Category
Components, Motion control and actuation

Specifications & evidence

Source-backed claims. Configuration, workload and evidence type matter when comparing products.

Altitude and derating

below 3000 m, operating altitude 1000 mand above: , per rise of 100 m, derate 1.5% use

Manufacturer specification

Configuration: FD115S-□S-000; FD125S-□S-000; FD135S-□S-000; FD145S-□S-000; FD165S-□S-000; Per exact family configuration. Model-code options are not interchangeable.

FD1X5S伺服驱动器
海拔高度 低于 3000 米,⼯作海拔在 1000 ⽶以上时,每上升 100 ⽶,需降额 1.5% 使⽤

Analog input

1 voltage analog inputs, 12bit , -10V ~ +10V , differential connection

Manufacturer specification

Configuration: FD115S-□S-000; FD125S-□S-000; FD135S-□S-000; FD145S-□S-000; FD165S-□S-000; Per exact family configuration. Model-code options are not interchangeable.

FD1X5S伺服驱动器
模拟量 1 路电压型模拟量输入, 12bit , -10V ~ +10V ,差分接法

Atmospheric pressure

70kpa ~ 106kpa

Manufacturer specification

Configuration: FD115S-□S-000; FD125S-□S-000; FD135S-□S-000; FD145S-□S-000; FD165S-□S-000; Per exact family configuration. Model-code options are not interchangeable.

FD1X5S伺服驱动器
大气压力 70kpa ~ 106kpa

Braking absorption voltage

default 63V±2V VDC

Manufacturer specification

Configuration: FD115S-□S-000; FD125S-□S-000; FD135S-□S-000; FD145S-□S-000; FD165S-□S-000; Per exact family configuration. Model-code options are not interchangeable.

FD1X5S伺服驱动器
制动电压吸收点 默认 63V±2V

Canopen interface

maximum supports 1Mbps , CANopen communication with controller

Manufacturer specification

Configuration: FD115S-□S-000; FD125S-□S-000; FD135S-□S-000; FD145S-□S-000; FD165S-□S-000; Per exact family configuration. Model-code options are not interchangeable. Only configurations equipped with the corresponding interface or safety option; optional protocol rows do not mean every SKU has every interface.

FD1X5S伺服驱动器
CANopen 最大支持 1Mbps ,可使用 CANopen 协议与控制器通讯

Commissioning interface

Commissioning with Kinco PC software

Manufacturer specification

Configuration: FD115S-□S-000; FD125S-□S-000; FD135S-□S-000; FD145S-□S-000; FD165S-□S-000; Per exact family configuration. Model-code options are not interchangeable. Only configurations equipped with the corresponding interface or safety option; optional protocol rows do not mean every SKU has every interface.

FD1X5S伺服驱动器
USB 调试接口,可使用 Kinco 上位机软件连接

Cooling method

Natural cooling

Manufacturer specification

Configuration: FD115S-□S-000; FD125S-□S-000; FD135S-□S-000; FD145S-□S-000; FD165S-□S-000; Per exact family configuration. Model-code options are not interchangeable.

FD1X5S伺服驱动器
冷却方式 自然冷却

Digital input specification

3 digital inputs, common COMI; high level : 12.5~30VDC ; low level : 0~5VDC ; maximum frequency : 1KHz ; input impedance : 5KΩ including DI2 and DI3 are high-speed inputs, response time ≤10uS , input impedance 2.7KΩ.

Manufacturer specification

Configuration: FD115S-□S-000; FD125S-□S-000; FD135S-□S-000; FD145S-□S-000; FD165S-□S-000; Per exact family configuration. Model-code options are not interchangeable.

FD1X5S伺服驱动器
数字输入 3 路数字输入,共 COMI 端; 高电平: 12.5~30VDC ;低电平: 0~5VDC ; 最大频率: 1KHz ;输入阻抗: 5KΩ 其中 DI2 和 DI3 为高速输入,响应时间 ≤10uS ,输⼊阻抗 2.7KΩ.

Digital output specification

1 digital outputs , open-collector output , maximum voltage 30V , drive capability 100mA;

Manufacturer specification

Configuration: FD115S-□S-000; FD125S-□S-000; FD135S-□S-000; FD145S-□S-000; FD165S-□S-000; Per exact family configuration. Model-code options are not interchangeable.

FD1X5S伺服驱动器
数字输出 1 路数字输出 , 开集电极输出,最高电压 30V ,驱动能力为 100mA;

Ethercat interface

CoE (CiA402), CSP/CSV/PP/PV/PT/HM modes; communication speed 100Mbps

Manufacturer specification

Configuration: FD115S-□S-000; FD125S-□S-000; FD135S-□S-000; FD145S-□S-000; FD165S-□S-000; Per exact family configuration. Model-code options are not interchangeable. Only configurations equipped with the corresponding interface or safety option; optional protocol rows do not mean every SKU has every interface.

FD1X5S伺服驱动器
EtherCAT 支持 COE ( CiA402 协议)以及 CSP/CSV/PP/PV/PT/HM 模式,通讯速度 100Mbps

Logic power loss

2,500 mW

Manufacturer specification

Configuration: FD115S-□S-000; FD125S-□S-000; FD135S-□S-000; FD145S-□S-000; FD165S-□S-000; Per exact family configuration. Model-code options are not interchangeable.

FD1X5S伺服驱动器
逻辑损耗功率 (mW) 2500 2500 2500 2500 2500

Main power supply

24VDC ~ 60VDC

Manufacturer specification

Configuration: FD115S-□S-000; FD125S-□S-000; FD135S-□S-000; FD145S-□S-000; FD165S-□S-000; Per exact family configuration. Model-code options are not interchangeable.

FD1X5S伺服驱动器
动力电源输入 24VDC ~ 60VDC

Mass

FD115S-□S-000: 0.405; FD125S-□S-000: 0.405; FD135S-□S-000: 0.695; FD145S-□S-000: 0.867; FD165S-□S-000: 1.69 kg

Manufacturer specification

Configuration: Values apply to the exact configurations named in the value.; Per exact family configuration. Model-code options are not interchangeable.

FD1X5S伺服驱动器
重量(KG) 0.405 0.405 0.695 0.867 1.69

Maximum continuous output current

FD115S-□S-000: 5; FD125S-□S-000: 15 (without auxiliary cooling: up to 12Arms ); FD135S-□S-000: 30 (without auxiliary cooling: up to 22Arms ); FD145S-□S-000: 50 (without auxiliary cooling: up to 35Arms ); FD165S-□S-000: 80 (without auxiliary cooling plate: up to 55Arms )

Manufacturer specification

Configuration: Values apply to the exact configurations named in the value.; Per exact family configuration. Model-code options are not interchangeable.

FD1X5S伺服驱动器
最大连续输出电流 (Arms ) 5 15 (未加辅助散热可达 12Arms ) 30 (未加辅助散热可达 22Arms ) 50 (未加辅助散热可达 35Arms ) 80 (未加辅助板散热可达 55Arms )

Modbus rs485 interface

maximum supports 115200 bps , Modbus RTU communication with controller

Manufacturer specification

Configuration: FD115S-□S-000; FD125S-□S-000; FD135S-□S-000; FD145S-□S-000; FD165S-□S-000; Per exact family configuration. Model-code options are not interchangeable. Only configurations equipped with the corresponding interface or safety option; optional protocol rows do not mean every SKU has every interface.

FD1X5S伺服驱动器
Modbus/RS485 最大支持 115200 bps ,可使用 Modbus RTU 协议与控制器通讯

Mounting orientation

Vertical or horizontal mounting

Manufacturer specification

Configuration: FD115S-□S-000; FD125S-□S-000; FD135S-□S-000; FD145S-□S-000; FD165S-□S-000; Per exact family configuration. Model-code options are not interchangeable.

FD1X5S伺服驱动器
安装方式 垂直安装或水平安装

Operating humidity

90%RH or below(noncondensing)

Manufacturer specification

Configuration: FD115S-□S-000; FD125S-□S-000; FD135S-□S-000; FD145S-□S-000; FD165S-□S-000; Per exact family configuration. Model-code options are not interchangeable.

FD1X5S伺服驱动器
工作湿度 90%RH 以下(无凝露)

Operating temperature

-20°C ~ +40°C (no freezing)operating temperature over 40°C , drive must be derated

Manufacturer specification

Configuration: FD115S-□S-000; FD125S-□S-000; FD135S-□S-000; FD145S-□S-000; FD165S-□S-000; Per exact family configuration. Model-code options are not interchangeable.

FD1X5S伺服驱动器
工作温度 -20℃ ~ +40℃ (不结冰)工作温度超过 40°C ,驱动器需降额使用

Overvoltage alarm threshold

default 70V±2V VDC

Manufacturer specification

Configuration: FD115S-□S-000; FD125S-□S-000; FD135S-□S-000; FD145S-□S-000; FD165S-□S-000; Per exact family configuration. Model-code options are not interchangeable.

FD1X5S伺服驱动器
过压报警点 默认 70V±2V

Peak current

FD115S-□S-000: 18; FD125S-□S-000: 48; FD135S-□S-000: 100; FD145S-□S-000: 160; FD165S-□S-000: 240 A peak

Manufacturer specification

Configuration: Values apply to the exact configurations named in the value.; Per exact family configuration. Model-code options are not interchangeable. Peak/maximum value; duration is not stated on this page.

FD1X5S伺服驱动器
峰值电流( AP ) 18 48 100 160 240

Storage humidity

90%RH (noncondensing)

Manufacturer specification

Configuration: FD115S-□S-000; FD125S-□S-000; FD135S-□S-000; FD145S-□S-000; FD165S-□S-000; Per exact family configuration. Model-code options are not interchangeable.

FD1X5S伺服驱动器
储藏湿度 90%RH (无凝露)

Undervoltage alarm threshold

default 16V±2V VDC

Manufacturer specification

Configuration: FD115S-□S-000; FD125S-□S-000; FD135S-□S-000; FD145S-□S-000; FD165S-□S-000; Per exact family configuration. Model-code options are not interchangeable.

FD1X5S伺服驱动器
欠压报警点 默认 16V±2V
