Product details

iSMC

Components

Kinco

iSMC

About this product

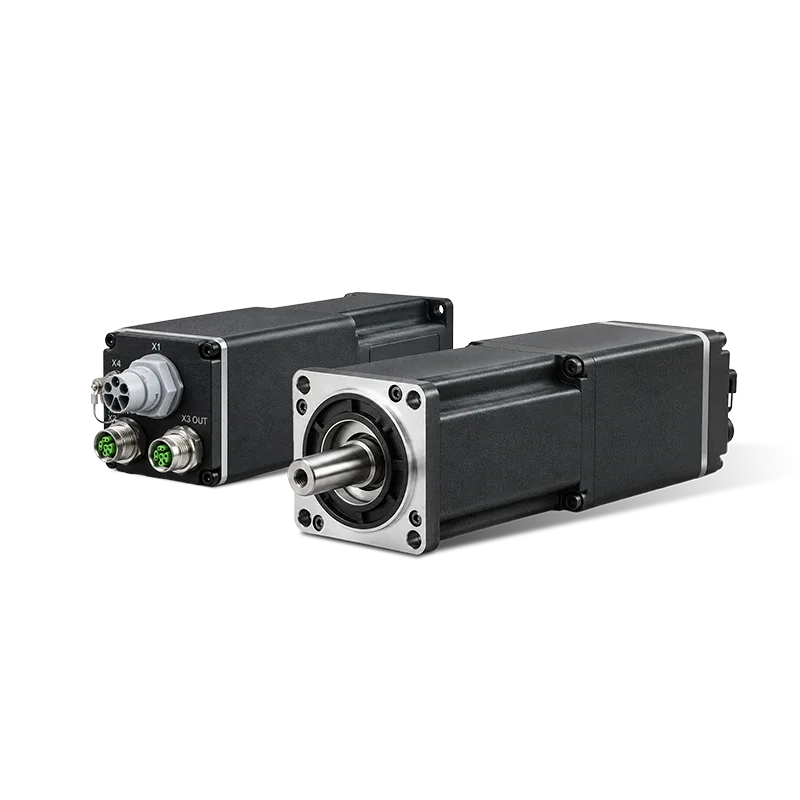

Low-voltage integrated servo motor combining a brushless motor, drive and absolute encoder. It supports EtherCAT CoE and RS232 and is specified for indoor industrial equipment with PELV power.

Model
iSMC
Category
Components, Motion control and actuation

Specifications & evidence

Source-backed claims. Configuration, workload and evidence type matter when comparing products.

Altitude and derating

below 3000m, at 1000m ~ 3000m between power derating 1.5%/100m

Manufacturer specification

Configuration: iSMC60A-036-DP ■ K-EA-000; iSMC60A-038-DP ■ K-EA-000; iSMC60A-042-DP ■ K-EA-000; Per exact family configuration. Model-code options are not interchangeable.

iSMC一体伺服驱动电机
高度 小于3000m,在1000m ~ 3000m 之间功率降额 1.5%/100m

Ethercat interface

CoE (CiA402), CSP/CSV/PP/PV/PT/HM modes; communication speed 100Mbps

Manufacturer specification

Configuration: iSMC60A-036-DP ■ K-EA-000; iSMC60A-038-DP ■ K-EA-000; iSMC60A-042-DP ■ K-EA-000; Per exact family configuration. Model-code options are not interchangeable. Only configurations equipped with the corresponding interface or safety option; optional protocol rows do not mean every SKU has every interface.

iSMC一体伺服驱动电机
EtherCAT 支持COE(CiA402协议)以及CSP/CSV/PP/PV/PT/HM模式,通讯速度100Mbps

Ingress protection

IP65 (optionalwith shaft seal)

Manufacturer specification

Configuration: iSMC60A-036-DP ■ K-EA-000; iSMC60A-038-DP ■ K-EA-000; iSMC60A-042-DP ■ K-EA-000; Per exact family configuration. Model-code options are not interchangeable.

iSMC一体伺服驱动电机
防护等级 IP65 (可选带轴封)

Logic supply current

0.25Adc

Manufacturer specification

Configuration: iSMC60A-036-DP ■ K-EA-000; iSMC60A-038-DP ■ K-EA-000; iSMC60A-042-DP ■ K-EA-000; Per exact family configuration. Model-code options are not interchangeable.

iSMC一体伺服驱动电机
逻辑电源电流 0.25Adc

Logic supply voltage

24VDC (minimum 18, maximum 30), PELV

Manufacturer specification

Configuration: iSMC60A-036-DP ■ K-EA-000; iSMC60A-038-DP ■ K-EA-000; iSMC60A-042-DP ■ K-EA-000; Per exact family configuration. Model-code options are not interchangeable.

iSMC一体伺服驱动电机
逻辑电源电压 24VDC (最小18,最大30),PELV

Mass with brake

iSMC60A-036-DP ■ K-EA-000: 2.78kg (with brake); iSMC60A-038-DP ■ K-EA-000: 2.04kg (with brake); iSMC60A-042-DP ■ K-EA-000: 2.04kg (with brake)

Manufacturer specification

Configuration: Values apply to the exact configurations named in the value.; Per exact family configuration. Model-code options are not interchangeable.

iSMC一体伺服驱动电机
2.78kg (带抱闸) 2.04kg (带抱闸) 2.04kg (带抱闸)

Mass without brake

iSMC60A-036-DP ■ K-EA-000: 2.38kg; iSMC60A-038-DP ■ K-EA-000: 1.64kg; iSMC60A-042-DP ■ K-EA-000: 1.64kg

Manufacturer specification

Configuration: Values apply to the exact configurations named in the value.; Per exact family configuration. Model-code options are not interchangeable.

iSMC一体伺服驱动电机
其他 重量 2.38kg 1.64kg 1.64kg

Maximum service life

20years

Manufacturer specification

Configuration: iSMC60A-036-DP ■ K-EA-000; iSMC60A-038-DP ■ K-EA-000; iSMC60A-042-DP ■ K-EA-000; Per exact family configuration. Model-code options are not interchangeable.

iSMC一体伺服驱动电机
最大使用寿命 20年 20年 20年

Maximum speed

iSMC60A-036-DP ■ K-EA-000: 3100rpm; iSMC60A-038-DP ■ K-EA-000: 4000rpm; iSMC60A-042-DP ■ K-EA-000: 6000rpm

Manufacturer specification

Configuration: Values apply to the exact configurations named in the value.; Per exact family configuration. Model-code options are not interchangeable.

iSMC一体伺服驱动电机
最大转速 3100rpm 4000rpm 6000rpm

Motor inertia with brake

iSMC60A-036-DP ■ K-EA-000: 0.656kg.cm 2 (with brake); iSMC60A-038-DP ■ K-EA-000: 0.386kg.cm 2 (with brake); iSMC60A-042-DP ■ K-EA-000: 0.386kg.cm 2 (with brake) kg·cm²

Manufacturer specification

Configuration: Values apply to the exact configurations named in the value.; Per exact family configuration. Model-code options are not interchangeable.

iSMC一体伺服驱动电机
0.656kg.cm 2 (带抱闸) 0.386kg.cm 2 (带抱闸) 0.386kg.cm 2 (带抱闸)

Motor inertia without brake

iSMC60A-036-DP ■ K-EA-000: 0.65kg.cm 2; iSMC60A-038-DP ■ K-EA-000: 0.38kg.cm 2; iSMC60A-042-DP ■ K-EA-000: 0.38kg.cm 2 kg·cm²

Manufacturer specification

Configuration: Values apply to the exact configurations named in the value.; Per exact family configuration. Model-code options are not interchangeable.

iSMC一体伺服驱动电机
电机转动惯量 0.65kg.cm 2 0.38kg.cm 2 0.38kg.cm 2

Operating temperature

iSMC60A-036-DP ■ K-EA-000: 0 ~ 40°C(noncondensing); iSMC60A-038-DP ■ K-EA-000: 0 ~ 40°C(noncondensing); iSMC60A-042-DP ■ K-EA-000: 0 ~ 45 °C (noncondensing)

Manufacturer specification

Configuration: Values apply to the exact configurations named in the value.; Per exact family configuration. Model-code options are not interchangeable.

iSMC一体伺服驱动电机
环境条件 环境温度(运行) 0 ~ 40℃(无冷凝) 0 ~ 40℃(无冷凝) 0 ~ 45 ℃ (无冷凝)

Peak torque

iSMC60A-036-DP ■ K-EA-000: 5.1Nm; iSMC60A-038-DP ■ K-EA-000: 3.6Nm; iSMC60A-042-DP ■ K-EA-000: 3Nm N·m

Manufacturer specification

Configuration: Values apply to the exact configurations named in the value.; Per exact family configuration. Model-code options are not interchangeable. Peak/maximum value; duration is not stated on this page.

iSMC一体伺服驱动电机
峰值扭矩 5.1Nm 3.6Nm 3Nm

Permissible humidity

at 40°Cmaximum 90% RH(noncondensing) %RH

Manufacturer specification

Configuration: iSMC60A-036-DP ■ K-EA-000; iSMC60A-038-DP ■ K-EA-000; iSMC60A-042-DP ■ K-EA-000; Per exact family configuration. Model-code options are not interchangeable.

iSMC一体伺服驱动电机
允许空气湿度 在40℃时最大 90% RH(无冷凝)

Pole count

10

Manufacturer specification

Configuration: iSMC60A-036-DP ■ K-EA-000; iSMC60A-038-DP ■ K-EA-000; iSMC60A-042-DP ■ K-EA-000; Per exact family configuration. Model-code options are not interchangeable.

iSMC一体伺服驱动电机
极数 10

Power supply current

iSMC60A-036-DP ■ K-EA-000: 9ADC; iSMC60A-038-DP ■ K-EA-000: 10ADC; iSMC60A-042-DP ■ K-EA-000: 11ADC

Manufacturer specification

Configuration: Values apply to the exact configurations named in the value.; Per exact family configuration. Model-code options are not interchangeable.

iSMC一体伺服驱动电机
电源电流 9ADC 10ADC 11ADC

Power supply voltage

48VDC (minimum 46, maximum 57), PELV

Manufacturer specification

Configuration: iSMC60A-036-DP ■ K-EA-000; iSMC60A-038-DP ■ K-EA-000; iSMC60A-042-DP ■ K-EA-000; Per exact family configuration. Model-code options are not interchangeable.

iSMC一体伺服驱动电机
电源 电源电压 48VDC (最小 46,最大 57),PELV

Rated shaft power

iSMC60A-036-DP ■ K-EA-000: 360W; iSMC60A-038-DP ■ K-EA-000: 380W; iSMC60A-042-DP ■ K-EA-000: 420W

Manufacturer specification

Configuration: Values apply to the exact configurations named in the value.; Per exact family configuration. Model-code options are not interchangeable.

iSMC一体伺服驱动电机
电气和机械数据 额定轴功率 360W 380W 420W

Rated speed

iSMC60A-036-DP ■ K-EA-000: 2000rpm; iSMC60A-038-DP ■ K-EA-000: 3000rpm; iSMC60A-042-DP ■ K-EA-000: 4000rpm

Manufacturer specification

Configuration: Values apply to the exact configurations named in the value.; Per exact family configuration. Model-code options are not interchangeable.

iSMC一体伺服驱动电机
额定转速 2000rpm 3000rpm 4000rpm

Rated torque

iSMC60A-036-DP ■ K-EA-000: 1.7Nm; iSMC60A-038-DP ■ K-EA-000: 1.2Nm; iSMC60A-042-DP ■ K-EA-000: 1Nm (S3 60% 1min) N·m

Manufacturer specification

Configuration: Values apply to the exact configurations named in the value.; Per exact family configuration. Model-code options are not interchangeable.

iSMC一体伺服驱动电机
额定扭矩 1.7Nm 1.2Nm 1Nm (S3 60% 1min)

Rs232 interface

X4 interface , 38400bps

Manufacturer specification

Configuration: iSMC60A-036-DP ■ K-EA-000; iSMC60A-038-DP ■ K-EA-000; iSMC60A-042-DP ■ K-EA-000; Per exact family configuration. Model-code options are not interchangeable. Only configurations equipped with the corresponding interface or safety option; optional protocol rows do not mean every SKU has every interface.

iSMC一体伺服驱动电机
通信 RS232 X4 接口,38400bps

Safe torque off

2 channels

Manufacturer specification

Configuration: iSMC60A-036-DP ■ K-EA-000; iSMC60A-038-DP ■ K-EA-000; iSMC60A-042-DP ■ K-EA-000; Per exact family configuration. Model-code options are not interchangeable. Only configurations equipped with the corresponding interface or safety option; optional protocol rows do not mean every SKU has every interface.

iSMC一体伺服驱动电机
安全功能 STO 2 通道

Storage temperature

-10 ~ +55°C(noncondensing)

Manufacturer specification

Configuration: iSMC60A-036-DP ■ K-EA-000; iSMC60A-038-DP ■ K-EA-000; iSMC60A-042-DP ■ K-EA-000; Per exact family configuration. Model-code options are not interchangeable.

iSMC一体伺服驱动电机
环境温度(储存) -10 ~ +55℃(无冷凝)

Vibration tolerance

10Hz ~ 58Hz,amplitude <0.075mm; 58 ~ 150Hz,<10m/s2;

Manufacturer specification

Configuration: iSMC60A-036-DP ■ K-EA-000; iSMC60A-038-DP ■ K-EA-000; iSMC60A-042-DP ■ K-EA-000; Per exact family configuration. Model-code options are not interchangeable.

iSMC一体伺服驱动电机
振动 10Hz ~ 58Hz,振幅 <0.075mm; 58 ~ 150Hz,<10m/s2;
