Product details

ZWLC012010-01

Components

ZHAOWEI

ZWLC012010-01

About this product

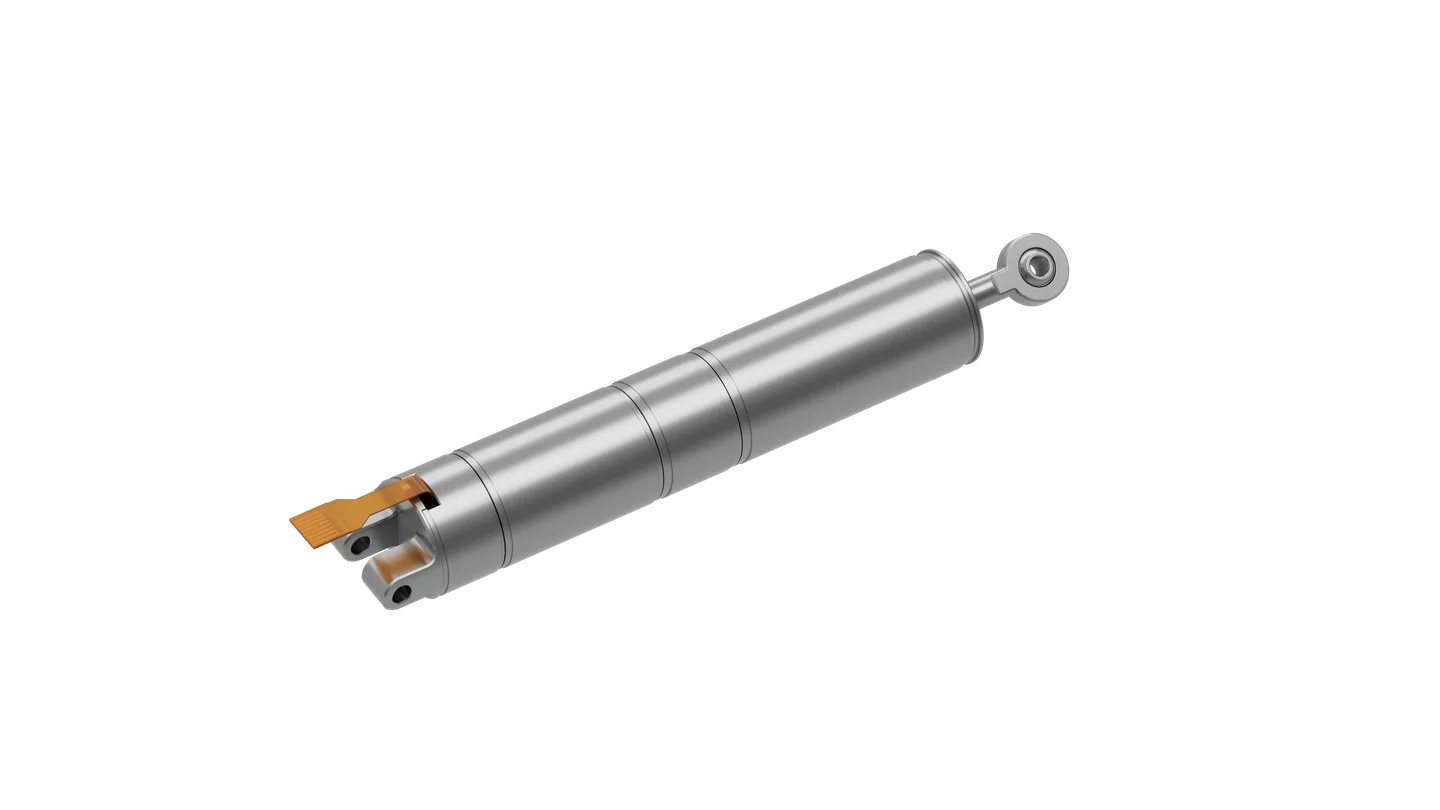

Compact linear actuator identified by ZHAOWEI for palm mechanisms in dexterous hands. This is the -01 configuration of the 12 mm palm actuator.

Model
ZWLC012010-01
Category
Components, Motion control and actuation, Actuators & Joint Modules

Specifications & evidence

Source-backed claims. Configuration, workload and evidence type matter when comparing products.

Actuator length

61.35 mm

Manufacturer specification

Configuration: ZWLC012010-01

Φ12mm掌心直线电机-1
执行器长度 61.35 mm

Actuator mass

42 g

Manufacturer specification

Configuration: ZWLC012010-01

Φ12mm掌心直线电机-1
执行器重量 42 g

Gearbox stages

1

Manufacturer specification

Configuration: ZWLC012010-01

Φ12mm掌心直线电机-1
齿轮箱级数 1 级

Instantaneously permissible push pull force

160 N

Manufacturer specification

Configuration: ZWLC012010-01; Instantaneous force does not imply continuous duty.

Φ12mm掌心直线电机-1
瞬间容许推拉力 160 N

Maximum stroke

10 mm

Manufacturer specification

Configuration: ZWLC012010-01

Φ12mm掌心直线电机-1
行程(MAX) 10 mm

No load current

0.1 A

Manufacturer specification

Configuration: ZWLC012010-01

Φ12mm掌心直线电机-1
空载电流 0.1 A

No load linear speed

46±15% mm/s

Manufacturer specification

Configuration: ZWLC012010-01

Φ12mm掌心直线电机-1
空载移动速度 46±15% mm/s

Outer diameter

12 mm

Manufacturer specification

Configuration: ZWLC012010-01

Φ12mm掌心直线电机-1
外直径 12 mm

Rated current

0.5 A

Manufacturer specification

Configuration: ZWLC012010-01

Φ12mm掌心直线电机-1
额定电流 0.5 A

Rated linear speed

32.8±15% mm/s

Manufacturer specification

Configuration: ZWLC012010-01

Φ12mm掌心直线电机-1
额定移动速度 32.8±15% mm/s

Rated push pull force

54 N

Manufacturer specification

Configuration: ZWLC012010-01

Φ12mm掌心直线电机-1
额定推拉力 54 N

Recommended temperature range

-40~+85 °C

Manufacturer specification

Configuration: ZWLC012010-01

Φ12mm掌心直线电机-1
建议温度范围 -40~+85 ℃

Reduction ratio

6.6

Manufacturer specification

Configuration: ZWLC012010-01

Φ12mm掌心直线电机-1
减速比 6.6 /

Voltage

12 VDC

Manufacturer specification

Configuration: ZWLC012010-01

Φ12mm掌心直线电机-1
电压 12 VDC
