Product details

VMD02-4070

Sensors and machine vision

Percipio

VMD02-4070

About this product

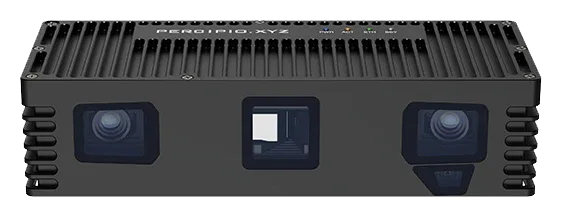

Fringe/phase structured-light 3D camera for close-range industrial and robotic perception. It uses blue illumination to produce detailed point clouds through a Gigabit Ethernet interface.

Model
VMD02-4070
Category
Sensors and machine vision, Components
Product stage
Commercial

Specifications & evidence

Source-backed claims. Configuration, workload and evidence type matter when comparing products.

Cooling method

Passive cooling

Manufacturer specification

VMD02-4070-Percipio.XYZ
Cooling method Passive cooling

Depth resolution

0.20 @ 400mm 0.25 @ 490mm 0.35 @ 700mm

Manufacturer specification

VMD02-4070-Percipio.XYZ
Depth Resolution 0.20 @ 400mm 0.25 @ 490mm 0.35 @ 700mm

Depth technology

Stereo Fringe/Phase Structured Light

Manufacturer specification

VMD02-4070-Percipio.XYZ
Technical Principles Stereo Fringe/Phase Structured Light

Dimensions

268 mm x 105 mm x 65 m

Manufacturer specification

VMD02-4070-Percipio.XYZ
Size 268 mm x 105 mm x 65 m

Field of view

max 51°/41°±3°

Manufacturer specification

VMD02-4070-Percipio.XYZ
FOV(H/V) max 51°/41°±3°

Housing material

aluminium alloy

Manufacturer specification

VMD02-4070-Percipio.XYZ
Housing Material aluminium alloy

Illumination wavelength

635 nm (red light)

Manufacturer specification

VMD02-4070-Percipio.XYZ
Laser wavelength 635 nm (red light)

Ip rating

IP65

Manufacturer specification

VMD02-4070-Percipio.XYZ
Ingress Protection IP65

Light source

laser

Manufacturer specification

VMD02-4070-Percipio.XYZ
Light source laser

Mounting

Mechanical fastening

Manufacturer specification

VMD02-4070-Percipio.XYZ
Installation Method Mechanical fastening

Operating temperature

0 ~ 40℃

Manufacturer specification

VMD02-4070-Percipio.XYZ
Temperature 0 ~ 40℃

Output formats

Depth map, greyscale image, point cloud

Manufacturer specification

VMD02-4070-Percipio.XYZ
Output image Depth map, greyscale image, point cloud

Power consumption

≤ 24 W

Manufacturer specification

VMD02-4070-Percipio.XYZ
Power Consumption ≤ 24 W

Sdk

Vcamera + Camport4

Manufacturer specification

VMD02-4070-Percipio.XYZ
Software Development Kit Vcamera + Camport4

Shutter type

Global

Manufacturer specification

VMD02-4070-Percipio.XYZ
Shutter Type Global

Storage temperature

-10 ℃ ~ 55℃

Manufacturer specification

VMD02-4070-Percipio.XYZ
Storage temperature -10 ℃ ~ 55℃

Supply voltage

DC 24 V ~ 48 V

Manufacturer specification

VMD02-4070-Percipio.XYZ
Supply voltage DC 24 V ~ 48 V

Supported platforms

Linux/Windows/ROS

Manufacturer specification

VMD02-4070-Percipio.XYZ
Host operating system Linux/Windows/ROS

Weight

2080g

Manufacturer specification

VMD02-4070-Percipio.XYZ
Weight 2080g
