Product details

Gemini 215

Sensors and machine vision

Orbbec Inc.

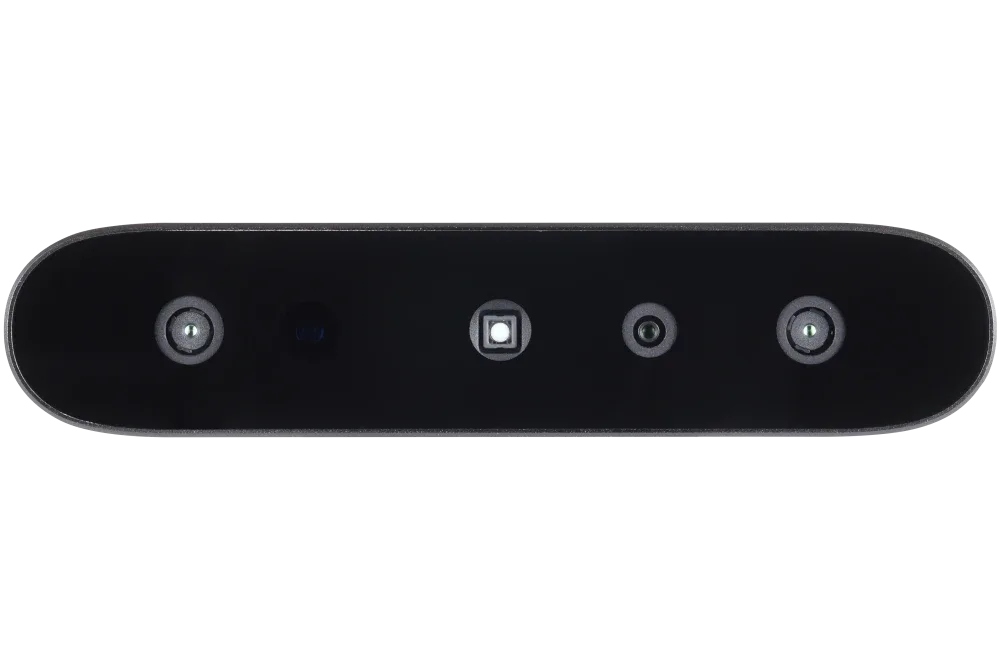

Gemini 215

About this product

Gemini 215 is a short-range active-stereo camera built around Orbbec's MX6600 depth-processing ASIC. It supplies detailed depth, infrared and RGB data for close-range object and body-part scanning, with an IMU and multi-camera synchronization. The exact model is supported by Orbbec's ROS 2 wrapper, enabling integration into close-range robotics perception systems.

Model
Gemini 215
Category
Sensors and machine vision, Components
Product stage
Commercial

Specifications & evidence

Source-backed claims. Configuration, workload and evidence type matter when comparing products.

Capture rate

Up to 30fps

Manufacturer specification

Gemini 215: High-Precision Stereo Vision Camera
Capture Rate Up to 30fps

Data connection

USB 3.0 & USB 2.0

Manufacturer specification

Gemini 215: High-Precision Stereo Vision Camera
Data Connection USB 3.0 & USB 2.0

Data output

Point Cloud, Depth, IR & RGB

Manufacturer specification

Gemini 215: High-Precision Stereo Vision Camera
Data Output Point Cloud, Depth, IR & RGB

Depth filter

IR-Pass

Manufacturer specification

Gemini 215: High-Precision Stereo Vision Camera
Depth Filter IR-Pass

Depth fov

63.5° x 45.6° @ 0.7m

Manufacturer specification

Gemini 215: High-Precision Stereo Vision Camera
Depth FOV 63.5° x 45.6° @ 0.7m

Depth range

0.15 - 0.70m (Ideal Range 0.2 - 0.5m); Close Up Precision Mode (0.15m - 0.30m); Extended Distance Mode (0.20m -0.70m)

Manufacturer specification

Gemini 215: High-Precision Stereo Vision Camera
Depth Range 0.15 - 0.70m (Ideal Range 0.2 - 0.5m); Close_Up Precision Mode (0.15m - 0.30m); Extended Distance Mode (0.20m -0.70m)

Depth resolution fps

Up to 1280 × 800 @ 30fps

Manufacturer specification

Gemini 215: High-Precision Stereo Vision Camera
Depth Resolution/FPS Up to 1280 × 800 @ 30fps

Depth technology

Active Stereo

Manufacturer specification

Gemini 215: High-Precision Stereo Vision Camera
Depth Technology Active Stereo

Dimensions w h d

120 mm x 26 mm x 30 mm

Manufacturer specification

Gemini 215: High-Precision Stereo Vision Camera
Dimensions (W*H*D) 120 mm x 26 mm x 30 mm

Imu

Support

Manufacturer specification

Gemini 215: High-Precision Stereo Vision Camera
IMU Support

Operating environment

0℃~40℃; Indoor; 5%-95%RH (non-condensing)

Manufacturer specification

Gemini 215: High-Precision Stereo Vision Camera
Operating Environment 0℃~40℃; Indoor; 5%-95%RH (non-condensing)

Power consumption

Average < 2.5W; Max < 7.0W

Manufacturer specification

Gemini 215: High-Precision Stereo Vision Camera
Power Consumption Average < 2.5W; Max < 7.0W

Power input

USB Type C

Manufacturer specification

Gemini 215: High-Precision Stereo Vision Camera
Power Input USB Type C

Release date

2025-01

Manufacturer specification

Configuration: CES 2025 day 1; stored at month precision because captured manufacturer body does not state the calendar day.

CES 2025: Orbbec Latest 3D Vision Solutions
Orbbec launched the Gemini 215, a new addition to its stereo vision Gemini series, on Day 1 of CES. Designed specifically for high-precision, short-range 3D scanning applications, the Gemini 215 excels in tasks such as foot morphology scanning, facial recognition, and detailed capture of small objects. Its superior quality, user-friendly design, and compatibility address the needs of enterprise users for rapid implementation.

Rgb fov

H74.7° x V46.2° ± 3°

Manufacturer specification

Gemini 215: High-Precision Stereo Vision Camera
RGB FOV H74.7° x V46.2° ± 3°

Rgb resolutions fps

Up to 1920 × 1080 @ 30fps

Manufacturer specification

Gemini 215: High-Precision Stereo Vision Camera
RGB Resolutions/FPS Up to 1920 × 1080 @ 30fps

Sdk support

Orbbec SDK v2 (Open-source)

Manufacturer specification

Gemini 215: High-Precision Stereo Vision Camera
SDK Support Orbbec SDK v2 (Open-source)

Wavelength

850 nm

Manufacturer specification

Gemini 215: High-Precision Stereo Vision Camera
Wavelength 850nm

Weight

105g ± 3g

Manufacturer specification

Gemini 215: High-Precision Stereo Vision Camera
Weight 105g ± 3g
