Product details

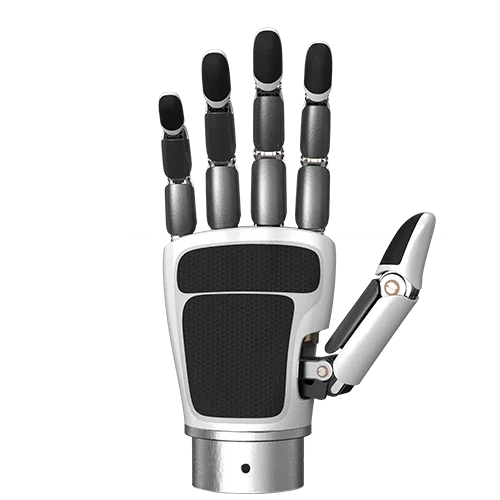

LG-1501

Dexterous Hand

MINDSYNC TECH

LG-1501

About this product

A heavy-duty robotic hand positioned for manipulation tasks requiring both load capacity and positioning control.

Model
LG-1501
Category
Dexterous Hand
Product stage
Commercial

Specifications & evidence

Source-backed claims. Configuration, workload and evidence type matter when comparing products.

Active degrees of freedom

15

Manufacturer specification

重载旗舰款·LG-1501-灵巧手,五指灵巧手,轮式人形机器人-安徽中科灵犀科技有限公司
主动自由度 15

Communication interfaces

CAN

Manufacturer specification

重载旗舰款·LG-1501-灵巧手,五指灵巧手,轮式人形机器人-安徽中科灵犀科技有限公司
通讯接口 CAN

Dimensions

190 × 90 × 40 mm

Manufacturer specification

重载旗舰款·LG-1501-灵巧手,五指灵巧手,轮式人形机器人-安徽中科灵犀科技有限公司
尺寸 190*90*40mm

Drive type

Servo electric cylinder with coupled linkage

Manufacturer specification

重载旗舰款·LG-1501-灵巧手,五指灵巧手,轮式人形机器人-安徽中科灵犀科技有限公司
传动方式 耦合连杆 驱动方式 伺服电缸

Fingertip speed

360 °/s

Manufacturer specification

重载旗舰款·LG-1501-灵巧手,五指灵巧手,轮式人形机器人-安徽中科灵犀科技有限公司
指尖速度 360°/s

Mass

≤650 g

Manufacturer specification

重载旗舰款·LG-1501-灵巧手,五指灵巧手,轮式人形机器人-安徽中科灵犀科技有限公司
重量 ≤650g

Maximum finger grip force

40 N

Manufacturer specification

重载旗舰款·LG-1501-灵巧手,五指灵巧手,轮式人形机器人-安徽中科灵犀科技有限公司
最大单指握持力 40N

Maximum fingertip force

20 N

Manufacturer specification

重载旗舰款·LG-1501-灵巧手,五指灵巧手,轮式人形机器人-安徽中科灵犀科技有限公司
最大单指指尖力 20N

Maximum grip force

100 N

Manufacturer specification

重载旗舰款·LG-1501-灵巧手,五指灵巧手,轮式人形机器人-安徽中科灵犀科技有限公司
整手最大握持力 100N

Minimum grasp object size

1–2 mm

Manufacturer specification

重载旗舰款·LG-1501-灵巧手,五指灵巧手,轮式人形机器人-安徽中科灵犀科技有限公司
抓取最小物体 1-2mm

Operating voltage

12 ±10% V

Manufacturer specification

重载旗舰款·LG-1501-灵巧手,五指灵巧手,轮式人形机器人-安徽中科灵犀科技有限公司
工作电压 DC12V±10%

Passive degrees of freedom

4

Manufacturer specification

重载旗舰款·LG-1501-灵巧手,五指灵巧手,轮式人形机器人-安徽中科灵犀科技有限公司
被动自由度 4

Repeatability

±0.5 mm

Manufacturer specification

重载旗舰款·LG-1501-灵巧手,五指灵巧手,轮式人形机器人-安徽中科灵犀科技有限公司
±0.5mm 重复定位精度

Static current

0.25 A

Manufacturer specification

Supply voltage: 12 V

重载旗舰款·LG-1501-灵巧手,五指灵巧手,轮式人形机器人-安徽中科灵犀科技有限公司
静态电流 0.25A @12V

Static load capacity

20 kg

Manufacturer specification

重载旗舰款·LG-1501-灵巧手,五指灵巧手,轮式人形机器人-安徽中科灵犀科技有限公司
静态负载 20kg

Tactile force resolution

0.1 N

Manufacturer specification

Configuration: Optional/custom tactile sensor and wrist configuration; Availability: Optional or custom; not standard equipment.

重载旗舰款·LG-1501-灵巧手,五指灵巧手,轮式人形机器人-安徽中科灵犀科技有限公司
传感器分辨率 0.1N

Tactile sensor count

6

Manufacturer specification

Configuration: Optional/custom tactile sensor and wrist configuration; Availability: Optional or custom; not standard equipment.

重载旗舰款·LG-1501-灵巧手,五指灵巧手,轮式人形机器人-安徽中科灵犀科技有限公司
力触觉传感器 6

Wrist degrees of freedom

2

Manufacturer specification

Configuration: Optional/custom tactile sensor and wrist configuration; Availability: Optional or custom; not standard equipment.

重载旗舰款·LG-1501-灵巧手,五指灵巧手,轮式人形机器人-安徽中科灵犀科技有限公司
手腕自由度 2
