Source-backed claims. Configuration, workload and evidence type matter when comparing products.
Cycle endurance
>10,000,000 cycles
Manufacturer specification
Configuration: PX6AX GEN3 shared specification table; this named model belongs to that family.; Manufacturer specification; no independent test claimed. The source gives one family table rather than individual SKU test results. Source asterisk: data from PaXini AI Lab.
PaXini AI 帕西尼 - 官方网站 | PaXiniService Life
Supports over 10 million cycles *
Dynamic temperature compensation
Supported
Manufacturer specification
Configuration: PX6AX GEN3 shared specification table; this named model belongs to that family.; Manufacturer specification; no independent test claimed. The source gives one family table rather than individual SKU test results.
PaXini AI 帕西尼 - 官方网站 | PaXiniDynamic Temperature Compensation
Possessing
Flame retardancy
UL94 V-0
Manufacturer specification
Configuration: PX6AX GEN3 shared specification table; this named model belongs to that family.; Manufacturer specification; no independent test claimed. The source gives one family table rather than individual SKU test results. Source asterisk: data from PaXini AI Lab.
PaXini AI 帕西尼 - 官方网站 | PaXiniFlame retardant grade
V-0 ( the highest UL94 flame classification ) *
Force range
Normal 0–25; tangential ±10
Manufacturer specification
Configuration: PX6AX GEN3 shared specification table; this named model belongs to that family.; Manufacturer specification; no independent test claimed. The source gives one family table rather than individual SKU test results.
PaXini AI 帕西尼 - 官方网站 | PaXiniRange of Force
0 ~ 25 N ( normal ), ± 10 N ( tangential )
Height
14 mm
Manufacturer specification

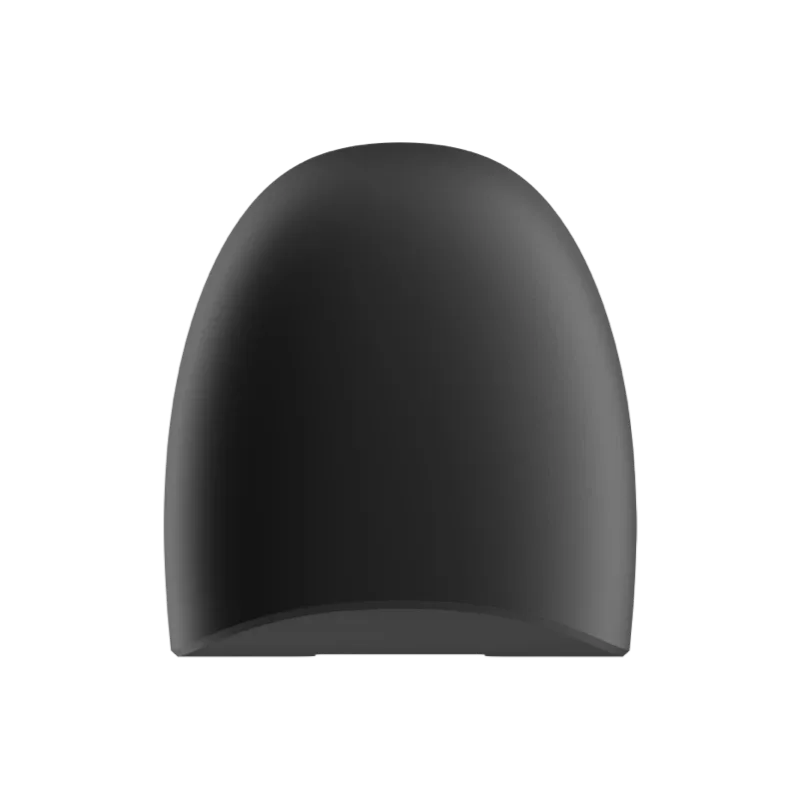

Configuration: PX6AX-GEN3-DP-M2826-Omega; Exact-model dimensions from the named product card.
PaXini AI 帕西尼 - 官方网站 | PaXiniPX6AX-GEN3-DP-M2826-Omega
Fingertip Tactile Sensor
Length:
28mm
Width:
26mm
Height:
14mm
Ingress protection
IP68
Manufacturer specification
Configuration: PX6AX GEN3 shared specification table; this named model belongs to that family.; Manufacturer specification; no independent test claimed. The source gives one family table rather than individual SKU test results.
PaXini AI 帕西尼 - 官方网站 | PaXiniWater and Dust Resistance
IP68
Length
28 mm
Manufacturer specification
Configuration: PX6AX-GEN3-DP-M2826-Omega; Exact-model dimensions from the named product card.
PaXini AI 帕西尼 - 官方网站 | PaXiniPX6AX-GEN3-DP-M2826-Omega
Fingertip Tactile Sensor
Length:
28mm
Width:
26mm
Height:
14mm
Maximum output frequency
1,000 Hz
Manufacturer specification
Configuration: PX6AX GEN3 shared specification table; this named model belongs to that family.; Manufacturer specification; no independent test claimed. The source gives one family table rather than individual SKU test results. Source asterisk: data from PaXini AI Lab.
PaXini AI 帕西尼 - 官方网站 | PaXiniMaximum Output Frequency
1000 Hz *
Minimum detectable force
0.01 N
Manufacturer specification
Configuration: PX6AX GEN3 shared specification table; this named model belongs to that family.; Manufacturer specification; no independent test claimed. The source gives one family table rather than individual SKU test results. Source asterisk: data from PaXini AI Lab.
PaXini AI 帕西尼 - 官方网站 | PaXiniMinimum recognition force
0.01 N *
Operating temperature
0 to 50 °C
Manufacturer specification
Configuration: PX6AX GEN3 shared specification table; this named model belongs to that family.; Manufacturer specification; no independent test claimed. The source gives one family table rather than individual SKU test results.
PaXini AI 帕西尼 - 官方网站 | PaXiniOperating Temperature
0 - 50°C
Operating voltage
3–5 V
Manufacturer specification
Configuration: PX6AX GEN3 shared specification table; this named model belongs to that family.; Manufacturer specification; no independent test claimed. The source gives one family table rather than individual SKU test results.
PaXini AI 帕西尼 - 官方网站 | PaXiniOperating Voltage
3 to 5 volts
Optional communication board interfaces
USB to host PC; UART to main controller
Manufacturer specification
Configuration: Via optional High-speed Communication Integration Board recommended by the sensor-family store page; These interfaces belong to the separate integration board; sensor-native protocols, pinout and baud rate are not established by this source.
购买高速通信集成板 - PaXini帕西尼商城通过USB直连PC上位机
通过UART与主控板通信
满足全手触觉传感器集成通信
Output signals
Triaxial force array, triaxial resultant force, triaxial resultant torque
Manufacturer specification
Configuration: PX6AX GEN3 shared specification table; this named model belongs to that family.; Manufacturer specification; no independent test claimed. The source gives one family table rather than individual SKU test results.
PaXini AI 帕西尼 - 官方网站 | PaXiniOutput Signals
Triaxial force array, triaxial resultant force, triaxial resultant torque
Overload temperature
-20 to 120 °C
Manufacturer specification
Configuration: PX6AX GEN3 shared specification table; this named model belongs to that family.; Manufacturer specification; no independent test claimed. The source gives one family table rather than individual SKU test results.
PaXini AI 帕西尼 - 官方网站 | PaXiniOverload Temperature
-20 ~ 120°C
Recommended communication accessories
Single-channel Serial Adapter Board; High-speed Communication Integration Board
Manufacturer specification
Configuration: Optional accessories recommended on the PX6AX GEN3 official store page; Accessories sold separately. Their presence does not establish distinct sensor-native interface variants.
购买PX6AX GEN3 - PaXini帕西尼商城建议购买配套通信配件使用(单路串口转接板/高速通信集成板)
Repeatability
<0.5 %FS
Manufacturer specification
Configuration: PX6AX GEN3 shared specification table; this named model belongs to that family.; Manufacturer specification; no independent test claimed. The source gives one family table rather than individual SKU test results.
PaXini AI 帕西尼 - 官方网站 | PaXiniRepeatability
<0.5%FS
Safe overload
200 %
Manufacturer specification
Configuration: PX6AX GEN3 shared specification table; this named model belongs to that family.; Manufacturer specification; no independent test claimed. The source gives one family table rather than individual SKU test results.
PaXini AI 帕西尼 - 官方网站 | PaXiniSafe Overload
200%
Sampling rate
1 MHz
Manufacturer specification
Configuration: PX6AX GEN3 shared specification table; this named model belongs to that family.; Manufacturer specification; no independent test claimed. The source gives one family table rather than individual SKU test results.
PaXini AI 帕西尼 - 官方网站 | PaXiniSampling Rate
1 MHz
Sensor form
Fingertip Tactile Sensor
Manufacturer specification
Configuration: PX6AX-GEN3-DP-M2826-Omega; Named product card.
PaXini AI 帕西尼 - 官方网站 | PaXiniPX6AX-GEN3-DP-M2826-Omega
Fingertip Tactile Sensor
Length:
28mm
Width:
26mm
Height:
14mm
Shock overload
300 %
Manufacturer specification
Configuration: PX6AX GEN3 shared specification table; this named model belongs to that family.; Manufacturer specification; no independent test claimed. The source gives one family table rather than individual SKU test results.
PaXini AI 帕西尼 - 官方网站 | PaXiniShock Overload
300%
Spatial resolution
0.1 mm
Manufacturer specification
Configuration: PX6AX GEN3 shared specification table; this named model belongs to that family.; Manufacturer specification; no independent test claimed. The source gives one family table rather than individual SKU test results. Source asterisk: data from PaXini AI Lab.
PaXini AI 帕西尼 - 官方网站 | PaXiniSpatial Resolution
0.1 mm *
Stray magnetic field immunity
Chip-level anti-magnetic capability
Manufacturer specification
Configuration: PX6AX GEN3 shared specification table; this named model belongs to that family.; Manufacturer specification; no independent test claimed. The source gives one family table rather than individual SKU test results.
PaXini AI 帕西尼 - 官方网站 | PaXiniStray Magnetic Field Immunity
Chip-level anti-magnetic capability
Surface coverage
Frontal and lateral curved surfaces
Manufacturer specification
Configuration: PX6AX GEN3 shared specification table; this named model belongs to that family.; Manufacturer specification; no independent test claimed. The source gives one family table rather than individual SKU test results.
PaXini AI 帕西尼 - 官方网站 | PaXiniSurface Coverage
Comprehensive coverage on the frontal and lateral curved surfaces
Torque perception
Torque measurement at any point
Manufacturer specification
Configuration: PX6AX GEN3 shared specification table; this named model belongs to that family.; Manufacturer specification; no independent test claimed. The source gives one family table rather than individual SKU test results.
PaXini AI 帕西尼 - 官方网站 | PaXiniTorque Perception
Support torque measurement at any point
Width
26 mm
Manufacturer specification
Configuration: PX6AX-GEN3-DP-M2826-Omega; Exact-model dimensions from the named product card.
PaXini AI 帕西尼 - 官方网站 | PaXiniPX6AX-GEN3-DP-M2826-Omega
Fingertip Tactile Sensor
Length:
28mm
Width:
26mm
Height:
14mm
