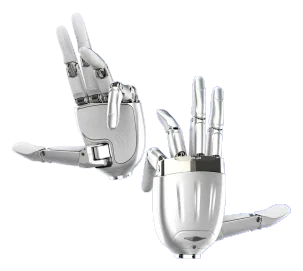

RY-H2

About this product

RY-H2 is a dexterous robotic hand in Ruiyan's product catalogue, designed as an end effector for robotic manipulation.

Model
RY-H2
Category
Components, Motion control and actuation, Sensors and machine vision, Dexterous Hand

Specifications & evidence

Source-backed claims. Configuration, workload and evidence type matter when comparing products.

Actuation

Electric motor drive

Manufacturer specification

Configuration: A1 high-speed; RY-H2L/R-0611-C1-A1-00

RY-H2 official product specification table
驱动方式 电机驱动

Actuation

Electric motor drive

Manufacturer specification

Configuration: A1 standard; RY-H2L/R-0611-C1-A1-00

RY-H2 official product specification table
驱动方式 电机驱动

Camera effective pixels

5,000,000 pixels

Manufacturer specification

Configuration: Camera variant; exact model code not stated

RY-H2 official product specification table
有效像素 500万像素高清视觉

Camera field of view

160 deg

Manufacturer specification

Configuration: Camera variant; exact model code not stated

RY-H2 official product specification table
镜头视角 160°超广角视野

Camera image adjustments

Automatic exposure / white balance / gain

Manufacturer specification

Configuration: Camera variant; exact model code not stated

RY-H2 official product specification table
图像调节 自动曝光、自动白平衡、自动增益

Camera pcb dimensions

12 × 26 mm

Manufacturer specification

Configuration: Camera variant; exact model code not stated; Qualifier: approximate; PCBA only

RY-H2 official product specification table
模组尺寸 小型化视觉模组(PCBA尺寸约12 × 26mm)

Camera resolution modes

2K; 1080p at 30 fps; multiple resolution settings

Manufacturer specification

Configuration: Camera variant; exact model code not stated; Frame rate applies to: 1080p mode

RY-H2 official product specification table
分辨率 2K高清 | 1080P 30fps | 多档分辨率

Camera system support

USB plug-and-play; multiple operating systems; Android requires UVC support

Manufacturer specification

Configuration: Camera variant; exact model code not stated

RY-H2 official product specification table
系统支持 USB即插即用与多系统兼容(Android系统需支持UVC协议)

Communication protocol

Ruiyan dexterous hand protocol

Manufacturer specification

Configuration: A1 high-speed; RY-H2L/R-0611-C1-A1-00

RY-H2 official product specification table
通信协议 睿研灵巧手协议

Communication protocol

Ruiyan dexterous hand protocol

Manufacturer specification

Configuration: A1 standard; RY-H2L/R-0611-C1-A1-00

RY-H2 official product specification table
通信协议 睿研灵巧手协议

Continuous current

≤1.7 A

Manufacturer specification

Configuration: A1 high-speed; RY-H2L/R-0611-C1-A1-00; Supply voltage v: 24; Qualifier: upper limit; continuous

RY-H2 official product specification table
额定电流(持续电流) ≤1.7A@24V

Continuous current

≤1.7 A

Manufacturer specification

Configuration: A1 standard; RY-H2L/R-0611-C1-A1-00; Supply voltage v: 24; Qualifier: upper limit; continuous

RY-H2 official product specification table
额定电流(持续电流) ≤1.7A@24V

Control interfaces

CAN / CAN FD / RS485 / EtherCAT

Manufacturer specification

Configuration: A1 high-speed; RY-H2L/R-0611-C1-A1-00

RY-H2 official product specification table
控制接口 CAN/CANFD/RS485/EtherCAT

Control interfaces

CAN / CAN FD / RS485 / EtherCAT

Manufacturer specification

Configuration: A1 standard; RY-H2L/R-0611-C1-A1-00

RY-H2 official product specification table
控制接口 CAN/CANFD/RS485/EtherCAT

Control modes

Position + speed; position + speed + maximum current/force limit; speed; current

Manufacturer specification

Configuration: A1 high-speed; RY-H2L/R-0611-C1-A1-00

RY-H2 official product specification table
控制方式 位置+速度;位置+速度+最大电流/力限制;速度;电流

Control modes

Position + speed; position + speed + maximum current/force limit; speed; current

Manufacturer specification

Configuration: A1 standard; RY-H2L/R-0611-C1-A1-00

RY-H2 official product specification table
控制方式 位置+速度;位置+速度+最大电流/力限制;速度;电流

Current control accuracy

10 mA

Manufacturer specification

Configuration: A1 high-speed; RY-H2L/R-0611-C1-A1-00

RY-H2 official product specification table
电流控制精度 10mA

Current control accuracy

10 mA

Manufacturer specification

Configuration: A1 standard; RY-H2L/R-0611-C1-A1-00

RY-H2 official product specification table
电流控制精度 10mA

Degrees of freedom

6 DOF

Manufacturer specification

Configuration: A1 high-speed; RY-H2L/R-0611-C1-A1-00

RY-H2 official product specification table
自由度 6

Degrees of freedom

6 DOF

Manufacturer specification

Configuration: A1 standard; RY-H2L/R-0611-C1-A1-00

RY-H2 official product specification table
自由度 6

Finger count

5

Manufacturer specification

Configuration: A1 high-speed; RY-H2L/R-0611-C1-A1-00

RY-H2 official product specification table
手指数 5

Finger count

5

Manufacturer specification

Configuration: A1 standard; RY-H2L/R-0611-C1-A1-00

RY-H2 official product specification table
手指数 5

Four finger flexion range

Index/middle/ring 0–90; little 0–87.1 deg

Manufacturer specification

Configuration: A1 high-speed; RY-H2L/R-0611-C1-A1-00; Index: [0, 90]; Middle: [0, 90]; Ring: [0, 90]; Little: [0, 87.1]

RY-H2 official product specification table
四指弯曲角度 食指:0~90°;中指:0~90°;无名指:0~90°;小拇指:0~87.1°

Four finger flexion range

Index/middle/ring 0–90; little 0–87.1 deg

Manufacturer specification

Configuration: A1 standard; RY-H2L/R-0611-C1-A1-00; Index: [0, 90]; Middle: [0, 90]; Ring: [0, 90]; Little: [0, 87.1]

RY-H2 official product specification table
四指弯曲角度 食指:0~90°;中指:0~90°;无名指:0~90°;小拇指:0~87.1°

Four finger flexion speed max

815 deg/s

Manufacturer specification

Configuration: A1 high-speed; RY-H2L/R-0611-C1-A1-00; Qualifier: maximum

RY-H2 official product specification table
四指弯曲最快速度 815°/s

Four finger flexion speed max

308 deg/s

Manufacturer specification

Configuration: A1 standard; RY-H2L/R-0611-C1-A1-00; Qualifier: maximum

RY-H2 official product specification table
四指弯曲最快速度 308°/s

Joint count

11

Manufacturer specification

Configuration: A1 high-speed; RY-H2L/R-0611-C1-A1-00

RY-H2 official product specification table
运动关节 11

Joint count

11

Manufacturer specification

Configuration: A1 standard; RY-H2L/R-0611-C1-A1-00

RY-H2 official product specification table
运动关节 11

Mass

0.56 kg

Manufacturer specification

Configuration: A1 standard; RY-H2L/R-0611-C1-A1-00; Scope: whole hand

RY-H2 official product specification table
整手重量 0.56kg

Maximum fingertip force

2.76 N

Manufacturer specification

Configuration: A1 high-speed; RY-H2L/R-0611-C1-A1-00; Finger posture: extended; Qualifier: maximum

RY-H2 official product specification table
伸直状态最大指尖力 2.76N

Maximum fingertip force

10 N

Manufacturer specification

Configuration: A1 standard; RY-H2L/R-0611-C1-A1-00; Finger posture: extended; Qualifier: maximum

RY-H2 official product specification table
伸直状态最大指尖力 10N

Maximum grasp force

10 N

Manufacturer specification

Configuration: A1 high-speed; RY-H2L/R-0611-C1-A1-00; Scope: whole hand; maximum

RY-H2 official product specification table
整手最大抓握力 10N

Maximum grasp force

88 N

Manufacturer specification

Configuration: A1 standard; RY-H2L/R-0611-C1-A1-00; Scope: whole hand; maximum

RY-H2 official product specification table
整手最大抓握力 88N

Minimum detectable force

≤0.15 N

Manufacturer specification

Configuration: Tactile variant; exact model code not stated; Qualifier: upper bound

RY-H2 official product specification table
最小感知力 ≤0.15N

Minimum open close time

0.09 s

Manufacturer specification

Configuration: A1 high-speed; RY-H2L/R-0611-C1-A1-00; Qualifier: fastest; open/close

RY-H2 official product specification table
最快开/合时间 0.09s

Minimum open close time

0.25 s

Manufacturer specification

Configuration: A1 standard; RY-H2L/R-0611-C1-A1-00; Qualifier: fastest; open/close

RY-H2 official product specification table
最快开/合时间 0.25s

Operating voltage

24–60 V

Manufacturer specification

Configuration: A1 high-speed; RY-H2L/R-0611-C1-A1-00; Minimum: 24; Maximum: 60

RY-H2 official product specification table
工作电压 24~60V

Operating voltage

24–60 V

Manufacturer specification

Configuration: A1 standard; RY-H2L/R-0611-C1-A1-00; Minimum: 24; Maximum: 60

RY-H2 official product specification table
工作电压 24~60V

Peak current

10 A

Manufacturer specification

Configuration: A1 high-speed; RY-H2L/R-0611-C1-A1-00; Supply voltage v: 24; Qualifier: peak

RY-H2 official product specification table
峰值电流 10A@24V

Peak current

10 A

Manufacturer specification

Configuration: A1 standard; RY-H2L/R-0611-C1-A1-00; Supply voltage v: 24; Qualifier: peak

RY-H2 official product specification table
峰值电流 10A@24V

Quiescent current

112 ± 10 mA

Manufacturer specification

Configuration: A1 high-speed; RY-H2L/R-0611-C1-A1-00; Supply voltage v: 24; Nominal: 112; Tolerance: 10

RY-H2 official product specification table
静态电流 112±10mA@24V

Quiescent current

112 ± 10 mA

Manufacturer specification

Configuration: A1 standard; RY-H2L/R-0611-C1-A1-00; Supply voltage v: 24; Nominal: 112; Tolerance: 10

RY-H2 official product specification table
静态电流 112±10mA@24V

Recommended payload max

0.3 kg

Manufacturer specification

Configuration: A1 high-speed; RY-H2L/R-0611-C1-A1-00; Qualifier: maximum recommended

RY-H2 official product specification table
最大推荐负载 0.3kg

Recommended payload max

10 kg

Manufacturer specification

Configuration: A1 standard; RY-H2L/R-0611-C1-A1-00; Qualifier: maximum recommended

RY-H2 official product specification table
最大推荐负载 10kg

Repeatability

±0.2 mm

Manufacturer specification

Configuration: A1 high-speed; RY-H2L/R-0611-C1-A1-00

RY-H2 official product specification table
重复定位精度 ±0.2mm

Repeatability

±0.3 mm

Manufacturer specification

Configuration: A1 standard; RY-H2L/R-0611-C1-A1-00

RY-H2 official product specification table
重复定位精度 ±0.3mm

Solid ingress protection

IP3X

Manufacturer specification

Configuration: Waterproof variant; exact model code not stated; Evidence status: manufacturer states compliant; independent certification not inspected

RY-H2 official product specification table
防水版参数 IP3X 合格

Tactile channel count

8

Manufacturer specification

Configuration: Tactile variant; exact model code not stated

RY-H2 official product specification table
触觉通道数 8

Tactile force measurement range

0.15–30 N

Manufacturer specification

Configuration: Tactile variant; exact model code not stated; Minimum: 0.15; Maximum: 30

RY-H2 official product specification table
测量范围 0.15~30N

Tactile force resolution

0.01 N

Manufacturer specification

Configuration: Tactile variant; exact model code not stated

RY-H2 official product specification table
力分辨率 0.01N

Tactile sampling frequency

100 Hz

Manufacturer specification

Configuration: Tactile variant; exact model code not stated

RY-H2 official product specification table
采样频率 100Hz

Thumb flexion range

0–57.9 deg

Manufacturer specification

Configuration: A1 high-speed; RY-H2L/R-0611-C1-A1-00; Minimum: 0; Maximum: 57.9

RY-H2 official product specification table
大拇指弯曲角度 0~57.9°

Thumb flexion range

0–57.9 deg

Manufacturer specification

Configuration: A1 standard; RY-H2L/R-0611-C1-A1-00; Minimum: 0; Maximum: 57.9

RY-H2 official product specification table
大拇指弯曲角度 0~57.9°

Thumb flexion speed max

474 deg/s

Manufacturer specification

Configuration: A1 high-speed; RY-H2L/R-0611-C1-A1-00; Qualifier: maximum

RY-H2 official product specification table
大拇指弯曲最快速度 474°/s

Thumb flexion speed max

223 deg/s

Manufacturer specification

Configuration: A1 standard; RY-H2L/R-0611-C1-A1-00; Qualifier: maximum

RY-H2 official product specification table
大拇指弯曲最快速度 223°/s

Thumb lateral rotation range

0–122 deg

Manufacturer specification

Configuration: A1 high-speed; RY-H2L/R-0611-C1-A1-00; Minimum: 0; Maximum: 122

RY-H2 official product specification table
拇指横向旋转范围 0~122°

Thumb lateral rotation range

0–122 deg

Manufacturer specification

Configuration: A1 standard; RY-H2L/R-0611-C1-A1-00; Minimum: 0; Maximum: 122

RY-H2 official product specification table
拇指横向旋转范围 0~122°

Thumb side swing speed max

1,143 deg/s

Manufacturer specification

Configuration: A1 high-speed; RY-H2L/R-0611-C1-A1-00; Qualifier: maximum

RY-H2 official product specification table
大拇指侧摆最快速度 1143°/s

Thumb side swing speed max

320 deg/s

Manufacturer specification

Configuration: A1 standard; RY-H2L/R-0611-C1-A1-00; Qualifier: maximum

RY-H2 official product specification table
大拇指侧摆最快速度 320°/s

Water ingress protection

IPX7

Manufacturer specification

Configuration: Waterproof variant; exact model code not stated; Evidence status: manufacturer states compliant; independent certification not inspected

RY-H2 official product specification table
防水版参数 IPX7 合格

Contact Us

If you have any questions or would like to get in touch, please feel free to reach out to us at the email below.

info@robotuo.com

YOUR CHOICES

Privacy settings

Choose each optional purpose. All are off until you agree. Change or withdraw consent at any time; browsing still works if you reject all.

Privacy preference

Remembers the choice you make here.

Always active

Save comparisons and followed companies and products between visits. Turning this off deletes saved selections; you can still use them during this visit.

Allow Google Analytics through Firebase to measure general page visits and usage with cookies and device information. Advertising remains off.

Allow OneSignal to process browser and subscription information for Robotuo news and updates. Browser permission is a separate step.
