Product details

DW25

Motion control and actuation

Nanchang Kude Intelligent Technology Co., Ltd.

DW25

About this product

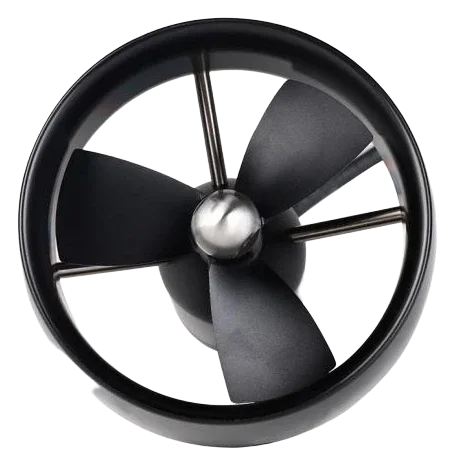

DW25 is a underwater thruster in the CubeMars DW portfolio. The manufacturer lists rated power 1315W, rated voltage 48V, mass 1780g(in the air) 995g(in the water).

Model
DW25
Category
Motion control and actuation, Motors & Drives, Components

Product family: CubeMars DW

Specifications & evidence

Source-backed claims. Configuration, workload and evidence type matter when comparing products.

Applicable water depth

0-350M

Manufacturer specification

Manufacturer core-data table for DW25; slash-separated values preserve the listed voltage/configuration order.

DW25 Underwater Thruster-Max Bollard Thrust≥25kgf,0-350m Depth
Applicable water depth 0-350M Driver External

Applications

Unmanned surface vehicle, Electric surfboard,ROV,etc.

Manufacturer specification

Manufacturer core-data table for DW25; slash-separated values preserve the listed voltage/configuration order.

DW25 Underwater Thruster-Max Bollard Thrust≥25kgf,0-350m Depth
Material of the nozzle POM Applications Unmanned surface vehicle, Electric surfboard,ROV,etc.

Cable specifications

TPU(Matte) φ9.5mm- 3*12AWG- 1.5M

Manufacturer specification

Manufacturer core-data table for DW25; slash-separated values preserve the listed voltage/configuration order.

DW25 Underwater Thruster-Max Bollard Thrust≥25kgf,0-350m Depth
Maximum mooring thrust ≥25kgf Cable specifications TPU(Matte) φ9.5mm- 3*12AWG- 1.5M

Driver

External

Manufacturer specification

Manufacturer core-data table for DW25; slash-separated values preserve the listed voltage/configuration order.

DW25 Underwater Thruster-Max Bollard Thrust≥25kgf,0-350m Depth
Applicable water depth 0-350M Driver External

Environmental conditions

0-50℃(Storage) 0-40℃(Operating )

Manufacturer specification

Manufacturer core-data table for DW25; slash-separated values preserve the listed voltage/configuration order.

DW25 Underwater Thruster-Max Bollard Thrust≥25kgf,0-350m Depth
Material of the shell Aluminum alloy Environmental conditions 0-50℃(Storage) 0-40℃(Operating )

Main body structure

Two-stage sealing chamber

Manufacturer specification

Manufacturer core-data table for DW25; slash-separated values preserve the listed voltage/configuration order.

DW25 Underwater Thruster-Max Bollard Thrust≥25kgf,0-350m Depth
Rated voltage 48V Main body structure Two-stage sealing chamber

Main shaft sealing method

Low-resistance dynamic seal

Manufacturer specification

Manufacturer core-data table for DW25; slash-separated values preserve the listed voltage/configuration order.

DW25 Underwater Thruster-Max Bollard Thrust≥25kgf,0-350m Depth
Rated power 1315W Main shaft sealing method Low-resistance dynamic seal

Mass

1780g(in the air) 995g(in the water)

Manufacturer specification

Manufacturer core-data table for DW25; slash-separated values preserve the listed voltage/configuration order.

DW25 Underwater Thruster-Max Bollard Thrust≥25kgf,0-350m Depth
Material of the propeller Aluminum alloy Weight 1780g(in the air) 995g(in the water)

Material of the nozzle

POM

Manufacturer specification

Manufacturer core-data table for DW25; slash-separated values preserve the listed voltage/configuration order.

DW25 Underwater Thruster-Max Bollard Thrust≥25kgf,0-350m Depth
Material of the nozzle POM Applications Unmanned surface vehicle, Electric surfboard,ROV,etc.

Material of the propeller

Aluminum alloy

Manufacturer specification

Manufacturer core-data table for DW25; slash-separated values preserve the listed voltage/configuration order.

DW25 Underwater Thruster-Max Bollard Thrust≥25kgf,0-350m Depth
Material of the propeller Aluminum alloy Weight 1780g(in the air) 995g(in the water)

Material of the shell

Aluminum alloy

Manufacturer specification

Manufacturer core-data table for DW25; slash-separated values preserve the listed voltage/configuration order.

DW25 Underwater Thruster-Max Bollard Thrust≥25kgf,0-350m Depth
Material of the shell Aluminum alloy Environmental conditions 0-50℃(Storage) 0-40℃(Operating )

Maximum mooring thrust

≥25kgf

Manufacturer specification

Manufacturer core-data table for DW25; slash-separated values preserve the listed voltage/configuration order.

DW25 Underwater Thruster-Max Bollard Thrust≥25kgf,0-350m Depth
Maximum mooring thrust ≥25kgf Cable specifications TPU(Matte) φ9.5mm- 3*12AWG- 1.5M

Motor rotor pole number

20P

Manufacturer specification

Manufacturer core-data table for DW25; slash-separated values preserve the listed voltage/configuration order.

DW25 Underwater Thruster-Max Bollard Thrust≥25kgf,0-350m Depth
Motor rotor pole number 20P Recommended ESC matching TW-80A-12S

Propeller specifications

φ126mm

Manufacturer specification

Manufacturer core-data table for DW25; slash-separated values preserve the listed voltage/configuration order.

DW25 Underwater Thruster-Max Bollard Thrust≥25kgf,0-350m Depth
Propeller specifications φ126mm Usage tips Rinse with clean water promptly after use.

Rated power

1315W

Manufacturer specification

Manufacturer core-data table for DW25; slash-separated values preserve the listed voltage/configuration order.

DW25 Underwater Thruster-Max Bollard Thrust≥25kgf,0-350m Depth
Rated power 1315W Main shaft sealing method Low-resistance dynamic seal

Rated voltage

48V

Manufacturer specification

Manufacturer core-data table for DW25; slash-separated values preserve the listed voltage/configuration order.

DW25 Underwater Thruster-Max Bollard Thrust≥25kgf,0-350m Depth
Rated voltage 48V Main body structure Two-stage sealing chamber

Recommended esc matching

TW-80A-12S

Manufacturer specification

Manufacturer core-data table for DW25; slash-separated values preserve the listed voltage/configuration order.

DW25 Underwater Thruster-Max Bollard Thrust≥25kgf,0-350m Depth
Motor rotor pole number 20P Recommended ESC matching TW-80A-12S

Usage tips

Rinse with clean water promptly after use.

Manufacturer specification

Manufacturer core-data table for DW25; slash-separated values preserve the listed voltage/configuration order.

DW25 Underwater Thruster-Max Bollard Thrust≥25kgf,0-350m Depth
Propeller specifications φ126mm Usage tips Rinse with clean water promptly after use.
