Product details

PX6AX-GEN3-CP-M3025-Core

Sensors and machine vision

PaXini

PX6AX-GEN3-CP-M3025-Core

About this product

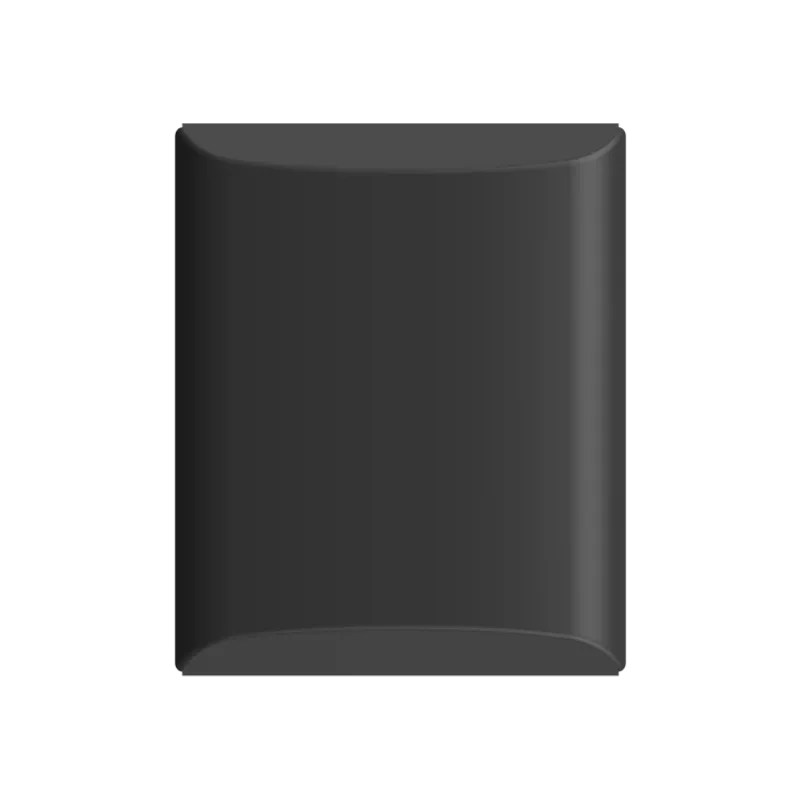

A 30 × 25 × 8 mm finger pad tactile sensor in PaXini’s GEN3 Core series for dexterous-hand contact sensing. The family outputs three-dimensional force distribution, resultant force and torque, with 1 MHz sampling and a stated maximum output frequency of 1,000 Hz.

Model
PX6AX-GEN3-CP-M3025-Core
Category
Sensors and machine vision, Components, Sensors & Perception
Product stage
Commercial

Product family: PX6AX GEN3

Specifications & evidence

Source-backed claims. Configuration, workload and evidence type matter when comparing products.

Cycle endurance

>10,000,000 cycles

Manufacturer specification

Configuration: PX6AX GEN3 shared specification table; this named model belongs to that family.; Manufacturer specification; no independent test claimed. The source gives one family table rather than individual SKU test results. Source asterisk: data from PaXini AI Lab.

PaXini AI 帕西尼 - 官方网站 | PaXini
Service Life Supports over 10 million cycles *

Dynamic temperature compensation

Supported

Manufacturer specification

Configuration: PX6AX GEN3 shared specification table; this named model belongs to that family.; Manufacturer specification; no independent test claimed. The source gives one family table rather than individual SKU test results.

PaXini AI 帕西尼 - 官方网站 | PaXini
Dynamic Temperature Compensation Possessing

Flame retardancy

UL94 V-0

Manufacturer specification

Configuration: PX6AX GEN3 shared specification table; this named model belongs to that family.; Manufacturer specification; no independent test claimed. The source gives one family table rather than individual SKU test results. Source asterisk: data from PaXini AI Lab.

PaXini AI 帕西尼 - 官方网站 | PaXini
Flame retardant grade V-0 ( the highest UL94 flame classification ) *

Force range

Normal 0–25; tangential ±10

Manufacturer specification

Configuration: PX6AX GEN3 shared specification table; this named model belongs to that family.; Manufacturer specification; no independent test claimed. The source gives one family table rather than individual SKU test results.

PaXini AI 帕西尼 - 官方网站 | PaXini
Range of Force 0 ~ 25 N ( normal ), ± 10 N ( tangential )

Height

8 mm

Manufacturer specification

Configuration: PX6AX-GEN3-CP-M3025-Core; Exact-model dimensions from the named product card.

PaXini AI 帕西尼 - 官方网站 | PaXini
PX6AX-GEN3-CP-M3025-Core Finger Pad Tactile Sensor Length: 30mm Width: 25mm Height: 8mm

Ingress protection

IP68

Manufacturer specification

Configuration: PX6AX GEN3 shared specification table; this named model belongs to that family.; Manufacturer specification; no independent test claimed. The source gives one family table rather than individual SKU test results.

PaXini AI 帕西尼 - 官方网站 | PaXini
Water and Dust Resistance IP68

Length

30 mm

Manufacturer specification

Configuration: PX6AX-GEN3-CP-M3025-Core; Exact-model dimensions from the named product card.

PaXini AI 帕西尼 - 官方网站 | PaXini
PX6AX-GEN3-CP-M3025-Core Finger Pad Tactile Sensor Length: 30mm Width: 25mm Height: 8mm

Maximum output frequency

1,000 Hz

Manufacturer specification

Configuration: PX6AX GEN3 shared specification table; this named model belongs to that family.; Manufacturer specification; no independent test claimed. The source gives one family table rather than individual SKU test results. Source asterisk: data from PaXini AI Lab.

PaXini AI 帕西尼 - 官方网站 | PaXini
Maximum Output Frequency 1000 Hz *

Minimum detectable force

0.01 N

Manufacturer specification

Configuration: PX6AX GEN3 shared specification table; this named model belongs to that family.; Manufacturer specification; no independent test claimed. The source gives one family table rather than individual SKU test results. Source asterisk: data from PaXini AI Lab.

PaXini AI 帕西尼 - 官方网站 | PaXini
Minimum recognition force 0.01 N *

Operating temperature

0 to 50 °C

Manufacturer specification

Configuration: PX6AX GEN3 shared specification table; this named model belongs to that family.; Manufacturer specification; no independent test claimed. The source gives one family table rather than individual SKU test results.

PaXini AI 帕西尼 - 官方网站 | PaXini
Operating Temperature 0 - 50°C

Operating voltage

3–5 V

Manufacturer specification

Configuration: PX6AX GEN3 shared specification table; this named model belongs to that family.; Manufacturer specification; no independent test claimed. The source gives one family table rather than individual SKU test results.

PaXini AI 帕西尼 - 官方网站 | PaXini
Operating Voltage 3 to 5 volts

Optional communication board interfaces

USB to host PC; UART to main controller

Manufacturer specification

Configuration: Via optional High-speed Communication Integration Board recommended by the sensor-family store page; These interfaces belong to the separate integration board; sensor-native protocols, pinout and baud rate are not established by this source.

购买高速通信集成板 - PaXini帕西尼商城
通过USB直连PC上位机 通过UART与主控板通信 满足全手触觉传感器集成通信

Output signals

Triaxial force array, triaxial resultant force, triaxial resultant torque

Manufacturer specification

Configuration: PX6AX GEN3 shared specification table; this named model belongs to that family.; Manufacturer specification; no independent test claimed. The source gives one family table rather than individual SKU test results.

PaXini AI 帕西尼 - 官方网站 | PaXini
Output Signals Triaxial force array, triaxial resultant force, triaxial resultant torque

Overload temperature

-20 to 120 °C

Manufacturer specification

Configuration: PX6AX GEN3 shared specification table; this named model belongs to that family.; Manufacturer specification; no independent test claimed. The source gives one family table rather than individual SKU test results.

PaXini AI 帕西尼 - 官方网站 | PaXini
Overload Temperature -20 ~ 120°C

Recommended communication accessories

Single-channel Serial Adapter Board; High-speed Communication Integration Board

Manufacturer specification

Configuration: Optional accessories recommended on the PX6AX GEN3 official store page; Accessories sold separately. Their presence does not establish distinct sensor-native interface variants.

购买PX6AX GEN3 - PaXini帕西尼商城
建议购买配套通信配件使用(单路串口转接板/高速通信集成板)

Repeatability

<0.5 %FS

Manufacturer specification

Configuration: PX6AX GEN3 shared specification table; this named model belongs to that family.; Manufacturer specification; no independent test claimed. The source gives one family table rather than individual SKU test results.

PaXini AI 帕西尼 - 官方网站 | PaXini
Repeatability <0.5%FS

Safe overload

200 %

Manufacturer specification

Configuration: PX6AX GEN3 shared specification table; this named model belongs to that family.; Manufacturer specification; no independent test claimed. The source gives one family table rather than individual SKU test results.

PaXini AI 帕西尼 - 官方网站 | PaXini
Safe Overload 200%

Sampling rate

1 MHz

Manufacturer specification

Configuration: PX6AX GEN3 shared specification table; this named model belongs to that family.; Manufacturer specification; no independent test claimed. The source gives one family table rather than individual SKU test results.

PaXini AI 帕西尼 - 官方网站 | PaXini
Sampling Rate 1 MHz

Sensor form

Finger Pad Tactile Sensor

Manufacturer specification

Configuration: PX6AX-GEN3-CP-M3025-Core; Named product card.

PaXini AI 帕西尼 - 官方网站 | PaXini
PX6AX-GEN3-CP-M3025-Core Finger Pad Tactile Sensor Length: 30mm Width: 25mm Height: 8mm

Shock overload

300 %

Manufacturer specification

Configuration: PX6AX GEN3 shared specification table; this named model belongs to that family.; Manufacturer specification; no independent test claimed. The source gives one family table rather than individual SKU test results.

PaXini AI 帕西尼 - 官方网站 | PaXini
Shock Overload 300%

Spatial resolution

0.1 mm

Manufacturer specification

Configuration: PX6AX GEN3 shared specification table; this named model belongs to that family.; Manufacturer specification; no independent test claimed. The source gives one family table rather than individual SKU test results. Source asterisk: data from PaXini AI Lab.

PaXini AI 帕西尼 - 官方网站 | PaXini
Spatial Resolution 0.1 mm *

Stray magnetic field immunity

Chip-level anti-magnetic capability

Manufacturer specification

Configuration: PX6AX GEN3 shared specification table; this named model belongs to that family.; Manufacturer specification; no independent test claimed. The source gives one family table rather than individual SKU test results.

PaXini AI 帕西尼 - 官方网站 | PaXini
Stray Magnetic Field Immunity Chip-level anti-magnetic capability

Surface coverage

Frontal and lateral curved surfaces

Manufacturer specification

Configuration: PX6AX GEN3 shared specification table; this named model belongs to that family.; Manufacturer specification; no independent test claimed. The source gives one family table rather than individual SKU test results.

PaXini AI 帕西尼 - 官方网站 | PaXini
Surface Coverage Comprehensive coverage on the frontal and lateral curved surfaces

Torque perception

Torque measurement at any point

Manufacturer specification

Configuration: PX6AX GEN3 shared specification table; this named model belongs to that family.; Manufacturer specification; no independent test claimed. The source gives one family table rather than individual SKU test results.

PaXini AI 帕西尼 - 官方网站 | PaXini
Torque Perception Support torque measurement at any point

Width

25 mm

Manufacturer specification

Configuration: PX6AX-GEN3-CP-M3025-Core; Exact-model dimensions from the named product card.

PaXini AI 帕西尼 - 官方网站 | PaXini
PX6AX-GEN3-CP-M3025-Core Finger Pad Tactile Sensor Length: 30mm Width: 25mm Height: 8mm
