Product details

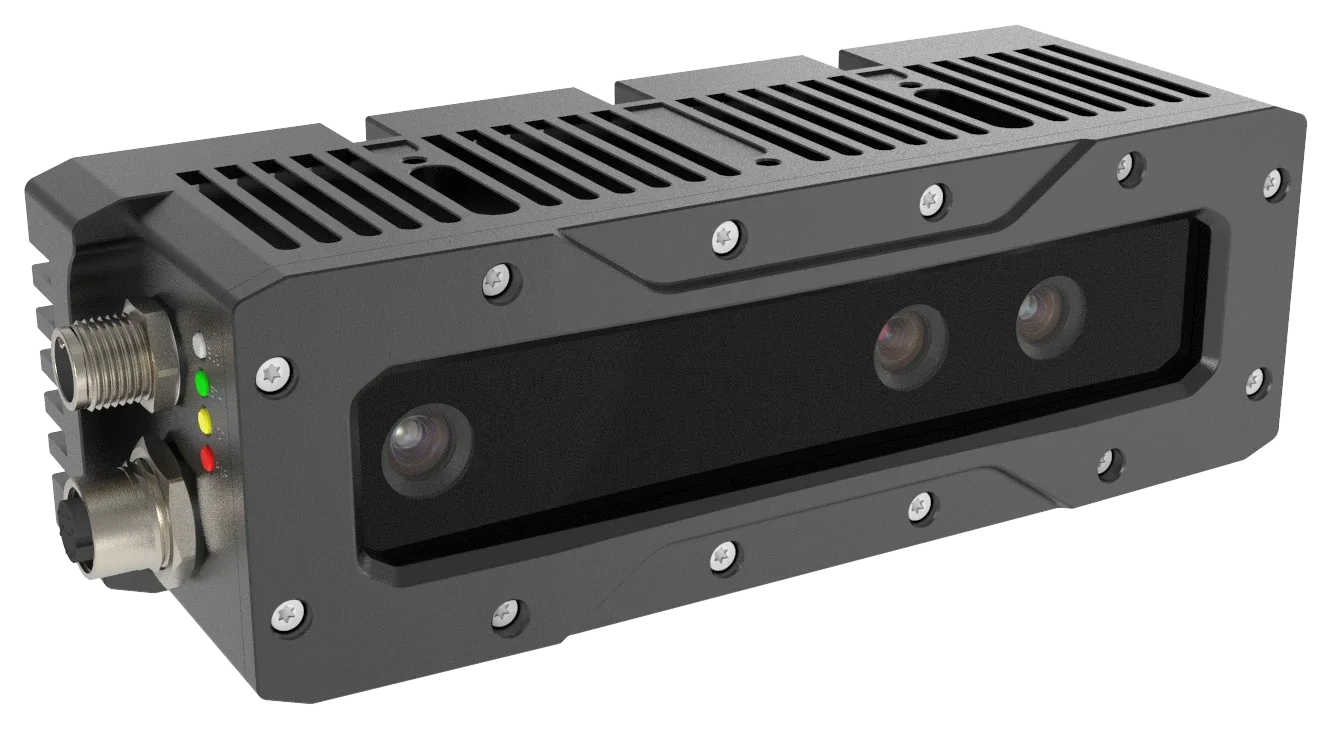

PS801-E1

Sensors and machine vision

Percipio

PS801-E1

About this product

Discontinued industrial active-stereo RGB-D camera for detailed 3D detection of stationary objects. It combines a 5-megapixel RGB sensor, infrared floodlights, hardware triggering and an IP67 housing; the E1 and N-E1 variants have different measurement performance.

Model
PS801-E1
Category
Sensors and machine vision, Components
Product stage
Discontinued

Specifications & evidence

Source-backed claims. Configuration, workload and evidence type matter when comparing products.

Data connector

M12 A-Code, 8-pin, female connector Gigabit Ethernet

Manufacturer specification

PS801-E1 manufacturer specifications
Data connector M12 A-Code, 8-pin, female connector Gigabit Ethernet

Depth frame rate and resolution

1 fps @ 1280 x 960 1 fps @ 640 x 480 1 fps @ 320 x 240

Manufacturer specification

Configuration: Manufacturer listed resolution/depth-quality combinations; operating-mode conditions in datasheet

PS801-E1 manufacturer specifications
Frame rate3 @ resolution (Depth) 1 fps @ 1280 x 960 1 fps @ 640 x 480 1 fps @ 320 x 240

Dimensions

176.5 mm x 57.0 mm x 63.9 mm

Manufacturer specification

Configuration: Dimension (excluding interfaces)

PS801-E1 manufacturer specifications
Dimension (excluding interfaces) 176.5 mm x 57.0 mm x 63.9 mm

Hardware trigger

2 trigger input/output; Input/Output 1: rising-edge trigger Input/Output 2: falling-edge trigger

Manufacturer specification

PS801-E1 manufacturer specifications
Hardware trigger 2 trigger input/output; Input/Output 1: rising-edge trigger Input/Output 2: falling-edge trigger

Housing material

Aluminum alloy

Manufacturer specification

PS801-E1 manufacturer specifications
Housing material Aluminum alloy

Illumination

1 x infrared laser (λ = 855 nm) 2 x infrared floodlights1 (λ = 855 nm)

Manufacturer specification

PS801-E1 manufacturer specifications
Illumination 1 x infrared laser (λ = 855 nm) 2 x infrared floodlights1 (λ = 855 nm)

Ingress protection

IP67

Manufacturer specification

PS801-E1 manufacturer specifications
Ingress protection IP67

Laser safety

Class 1 (EN 60825-1:2014)

Manufacturer specification

PS801-E1 manufacturer specifications
Eye Safety Class 1 (EN 60825-1:2014)

Output data

Depth, RGB, IR, point cloud images

Manufacturer specification

PS801-E1 manufacturer specifications
Output data Depth, RGB, IR, point cloud images

Power consumption

Idle mode: 4.5 W Trigger mode: 6.6 W Continuous mode: 10.5 W

Manufacturer specification

PS801-E1 manufacturer specifications
Power consumption Idle mode: 4.5 W Trigger mode: 6.6 W Continuous mode: 10.5 W

Power supply

DC 24V ±10%; PoE (IEEE802.3 af/at)

Manufacturer specification

PS801-E1 manufacturer specifications
Power supply DC 24V ±10%; PoE (IEEE802.3 af/at)

Power trigger connector

M12 A-Code, 8-pin, male connector

Manufacturer specification

PS801-E1 manufacturer specifications
Power & trigger connector M12 A-Code, 8-pin, male connector

Recommended working distance

600 mm ~ 3000 mm

Manufacturer specification

Configuration: PS801-E1

PS801-E1 manufacturer specifications
Recommended working distance 600 mm ~ 3000 mm

Rgb d alignment

√

Manufacturer specification

PS801-E1 manufacturer specifications
RGB-D alignment √

Sdk

Percipio Camport SDK; Supported programming language: C, C++, C#, Python

Manufacturer specification

PS801-E1 manufacturer specifications
SDK Percipio Camport SDK; Supported programming language: C, C++, C#, Python

Shutter

Rolling

Manufacturer specification

PS801-E1 manufacturer specifications
Shutter Rolling

Supported platforms

Linux/Windows/ROS

Manufacturer specification

PS801-E1 manufacturer specifications
OS Linux/Windows/ROS

Technology

Active stereo

Manufacturer specification

PS801-E1 manufacturer specifications
Technical principle Active stereo

Temperature

Operating: 0 ℃ ~ 45 ℃ Storage:-10 ℃ ~ 55 ℃

Manufacturer specification

PS801-E1 manufacturer specifications
Temperature Operating: 0 ℃ ~ 45 ℃ Storage:-10 ℃ ~ 55 ℃

Thermal dissipation

Passive

Manufacturer specification

PS801-E1 manufacturer specifications
Thermal dissipation Passive

Weight

894 g

Manufacturer specification

Configuration: Weight

PS801-E1 manufacturer specifications
Weight 894 g
