Product details

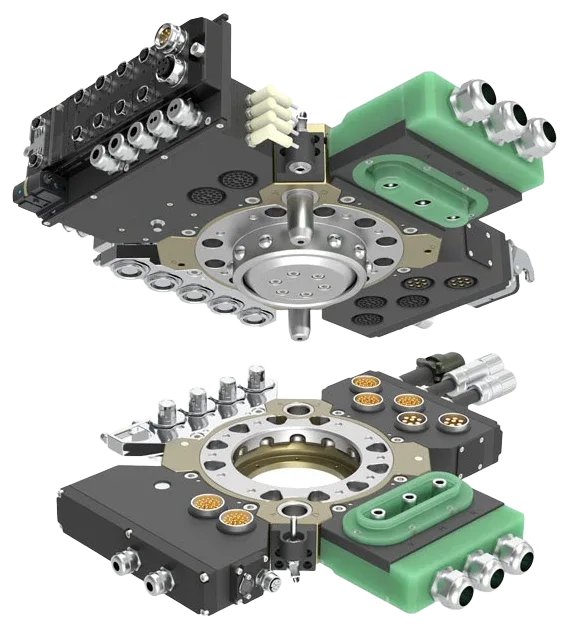

Aluminum spot-welding-to-SPR tool-change assembly

Motion control and actuation

LH-TC

Aluminum spot-welding-to-SPR tool-change assembly

About this product

A robot tool-changing application assembly for aluminum spot welding and self-piercing riveting.

Model
Aluminum spot-welding-to-SPR tool-change assembly
Category
Motion control and actuation, Components, Grippers & End Effectors

Specifications & evidence

Source-backed claims. Configuration, workload and evidence type matter when comparing products.

Aluminum welding power interface

400 A, 3-core cold-crimp terminal

Manufacturer specification

Configuration: Aluminum welding configuration; Manufacturer specification for this exact model; additional test conditions are not specified.

铝点焊换SPR - 郑州领航机器人有限公司
应用 主盘侧/工具侧 连接模块 传感器 ProfiNet总线 电磁阀 安全停靠 接地模块 水气模块 伺服模块 强电模块 铝 点 焊 和 SPR 主盘侧 PNP/ NPN 可选 718-5针电源 接口公头 M12-4针 D编码接口母 头 双电磁 阀控制 含压力 检测 — 接地 保护 PT 1/2*5 6B(4+12)伺服连接器 3A(12)针信号连接器 M23-6针,M23-12针伺服连接器 20-27信号连接器 400A 3芯冷压端子 铝点焊 工具侧 — 7/8-5针电源 接口母头 M12-4针 D编码接口母 头 1.5m出线 — 机械 安全 停靠 接地 保护 PT 1/2*4 2进2出 M23-6针,M23-12针伺服连接器 20-27信号连接器 400A 3芯冷压端子 SPR 工具侧 PT 1/2*1 6B(4+12)伺服连接器 3A(12)针信号连接器 —

Application interface configuration

PNP/NPN sensor options; Profinet; dual solenoid control with pressure detection; mechanical safety docking on tool side; grounding; water/air and servo connections.

Manufacturer specification

Configuration: Aluminum spot-welding-to-SPR tool-change assembly; Application assembly table. Detailed per-side connector choices remain in the exact excerpt; blank/merged cells are not converted into unsupported values.

铝点焊换SPR - 郑州领航机器人有限公司
应用 主盘侧/工具侧 连接模块 传感器 ProfiNet总线 电磁阀 安全停靠 接地模块 水气模块 伺服模块 强电模块 铝 点 焊 和 SPR 主盘侧 PNP/ NPN 可选 718-5针电源 接口公头 M12-4针 D编码接口母 头 双电磁 阀控制 含压力 检测 — 接地 保护 PT 1/2*5 6B(4+12)伺服连接器 3A(12)针信号连接器 M23-6针,M23-12针伺服连接器 20-27信号连接器 400A 3芯冷压端子 铝点焊 工具侧 — 7/8-5针电源 接口母头 M12-4针 D编码接口母 头 1.5m出线 — 机械 安全 停靠 接地 保护 PT 1/2*4 2进2出 M23-6针,M23-12针伺服连接器 20-27信号连接器 400A 3芯冷压端子 SPR 工具侧 PT 1/2*1 6B(4+12)伺服连接器 3A(12)针信号连接器 —

Payload

650 kg

Manufacturer specification

Configuration: Aluminum spot-welding-to-SPR tool-change assembly; Manufacturer specification for this exact model; additional test conditions are not specified.

工具快换盘-换枪盘-机器人快换装置-领航机器人末端 - 郑州领航机器人有限公司
型号:铝点焊换SPR 负载:650KG 弯矩(静态):5000N·m 扭矩(静态):5000N·m 查看详情:

Static bending moment

5,000 N·m

Manufacturer specification

Configuration: Aluminum spot-welding-to-SPR tool-change assembly; Manufacturer specification for this exact model; additional test conditions are not specified.

工具快换盘-换枪盘-机器人快换装置-领航机器人末端 - 郑州领航机器人有限公司
型号:铝点焊换SPR 负载:650KG 弯矩(静态):5000N·m 扭矩(静态):5000N·m 查看详情:

Static torque

5,000 N·m

Manufacturer specification

Configuration: Aluminum spot-welding-to-SPR tool-change assembly; Manufacturer specification for this exact model; additional test conditions are not specified.

工具快换盘-换枪盘-机器人快换装置-领航机器人末端 - 郑州领航机器人有限公司
型号:铝点焊换SPR 负载:650KG 弯矩(静态):5000N·m 扭矩(静态):5000N·m 查看详情:
