Product details

X-10-15

Motion control and actuation

Talls Gear

X-10-15

About this product

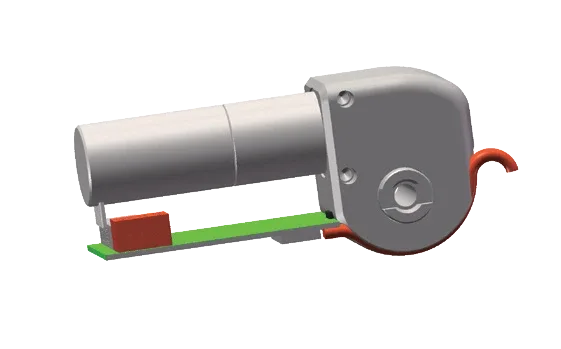

X-10-15 with motor is the motor-and-reducer assembly documented for a miniature dexterous-hand joint. The official drawing pairs the 15:1 reducer with a motor and board; motor electrical ratings, control interface and complete assembly mass are not specified.

Model
X-10-15 With motor
Category
Motion control and actuation, Components

Product family: X-10-15

Specifications & evidence

Source-backed claims. Configuration, workload and evidence type matter when comparing products.

Drawing body height

26.6 mm

Manufacturer specification

Configuration: X-10-15 with motor; exact assembly drawing, PDF page 13; Dimensioned body span in the exact labelled engineering drawing, not the complete installed envelope. Excludes protruding tabs, shaft features, wires or flex leads outside the dimension endpoints as applicable. Drawing revision date is not a product release date; no tolerance beyond the source drawing is inferred.

Talls X series miniature dexterous hand joint reducer product manual
12 26.60 2 x M2.5 - 6H 3 2.05 4.35 7.60 7.60 15.10 4 56.60 17.40 20.60 8 M4 - 6H 8 3.30 15.10 5 X 60°, 近端 2 x M2.5 - 6H 3 2.05 4.35 15.10 4 7.90 6.90 2:1 1 2 3 4 A B 4 3 2 1 B A 共1张 第1张 比例 日期 工艺会签 质量会签 出图 未注公差 0.5-3:±0.05 >3-6:±0.05 >30-120:±0.1 尺寸单位;MM 2025年2月28日 审图 版本 变更内容 日期 版本 A >6-30:±0.1 重量 材质: 产品加工时长 审核 X-10-15 含电机

Drawing body length

56.6 mm

Manufacturer specification

Configuration: X-10-15 with motor; exact assembly drawing, PDF page 13; Dimensioned body span in the exact labelled engineering drawing, not the complete installed envelope. Excludes protruding tabs, shaft features, wires or flex leads outside the dimension endpoints as applicable. Drawing revision date is not a product release date; no tolerance beyond the source drawing is inferred.

Talls X series miniature dexterous hand joint reducer product manual
12 26.60 2 x M2.5 - 6H 3 2.05 4.35 7.60 7.60 15.10 4 56.60 17.40 20.60 8 M4 - 6H 8 3.30 15.10 5 X 60°, 近端 2 x M2.5 - 6H 3 2.05 4.35 15.10 4 7.90 6.90 2:1 1 2 3 4 A B 4 3 2 1 B A 共1张 第1张 比例 日期 工艺会签 质量会签 出图 未注公差 0.5-3:±0.05 >3-6:±0.05 >30-120:±0.1 尺寸单位;MM 2025年2月28日 审图 版本 变更内容 日期 版本 A >6-30:±0.1 重量 材质: 产品加工时长 审核 X-10-15 含电机

Drawing body width

20.6 mm

Manufacturer specification

Configuration: X-10-15 with motor; exact assembly drawing, PDF page 13; Dimensioned body span in the exact labelled engineering drawing, not the complete installed envelope. Excludes protruding tabs, shaft features, wires or flex leads outside the dimension endpoints as applicable. Drawing revision date is not a product release date; no tolerance beyond the source drawing is inferred.

Talls X series miniature dexterous hand joint reducer product manual
12 26.60 2 x M2.5 - 6H 3 2.05 4.35 7.60 7.60 15.10 4 56.60 17.40 20.60 8 M4 - 6H 8 3.30 15.10 5 X 60°, 近端 2 x M2.5 - 6H 3 2.05 4.35 15.10 4 7.90 6.90 2:1 1 2 3 4 A B 4 3 2 1 B A 共1张 第1张 比例 日期 工艺会签 质量会签 出图 未注公差 0.5-3:±0.05 >3-6:±0.05 >30-120:±0.1 尺寸单位;MM 2025年2月28日 审图 版本 变更内容 日期 版本 A >6-30:±0.1 重量 材质: 产品加工时长 审核 X-10-15 含电机

Motor included

Yes

Manufacturer specification

Configuration: X-10-15 with motor; exact assembly drawing, PDF page 13; Drawing explicitly labelled 含电机 (with motor). Motor electrical ratings and interface are not established.

Talls X series miniature dexterous hand joint reducer product manual
12 26.60 2 x M2.5 - 6H 3 2.05 4.35 7.60 7.60 15.10 4 56.60 17.40 20.60 8 M4 - 6H 8 3.30 15.10 5 X 60°, 近端 2 x M2.5 - 6H 3 2.05 4.35 15.10 4 7.90 6.90 2:1 1 2 3 4 A B 4 3 2 1 B A 共1张 第1张 比例 日期 工艺会签 质量会签 出图 未注公差 0.5-3:±0.05 >3-6:±0.05 >30-120:±0.1 尺寸单位;MM 2025年2月28日 审图 版本 变更内容 日期 版本 A >6-30:±0.1 重量 材质: 产品加工时长 审核 X-10-15 含电机

Reducer center distance

10 mm

Manufacturer specification

Configuration: X-10-15 with motor; exact assembly drawing, PDF page 13; Reducer component center distance; not a complete installed assembly envelope.

Talls X series miniature dexterous hand joint reducer product manual
02 注:精度等级分为A 级 ±0.5 弧分/B 级±1 弧分/C 级 ±2 弧分 支持定制 产品参数: 型号 中心距 传动比 额定扭矩 (3000r/min时) 峰值扭矩 静态载荷扭矩 轴向推力负载 输入转速 精度 重量 自重比 是否自锁 噪音 效率 电机适配建议 单位/ 等级 mm /I NM NM NM KN r/min 弧分± kg : / dB % W X-4-15 4.5 15 0.25 0.75 0.75 56 1-1500 0.5 0.009 / / ≤50 50-90 4 X-6-15 6 15 0.4 1.2 1.2 67 1-1500 0.5 0.012 / / ≤50 50-90 6 X-8-15/30 8 15/30 1.6 4.8 4.8 200 1-1500 0.5 0.019 / / ≤50 50-90 15 X-10-15/30 10 15/30 3 6 6 300 1-1500 0.5 0.049 / / ≤50 50-90 30

Reduction ratio

15 :1

Manufacturer specification

Configuration: X-10-15 with motor; exact assembly drawing, PDF page 13; Ratio of the named reducer component; not an assembly output torque, mass or motor performance claim.

Talls X series miniature dexterous hand joint reducer product manual
02 注:精度等级分为A 级 ±0.5 弧分/B 级±1 弧分/C 级 ±2 弧分 支持定制 产品参数: 型号 中心距 传动比 额定扭矩 (3000r/min时) 峰值扭矩 静态载荷扭矩 轴向推力负载 输入转速 精度 重量 自重比 是否自锁 噪音 效率 电机适配建议 单位/ 等级 mm /I NM NM NM KN r/min 弧分± kg : / dB % W X-4-15 4.5 15 0.25 0.75 0.75 56 1-1500 0.5 0.009 / / ≤50 50-90 4 X-6-15 6 15 0.4 1.2 1.2 67 1-1500 0.5 0.012 / / ≤50 50-90 6 X-8-15/30 8 15/30 1.6 4.8 4.8 200 1-1500 0.5 0.019 / / ≤50 50-90 15 X-10-15/30 10 15/30 3 6 6 300 1-1500 0.5 0.049 / / ≤50 50-90 30
