Product details

Femto Mega

Sensors and machine vision

Orbbec Inc.

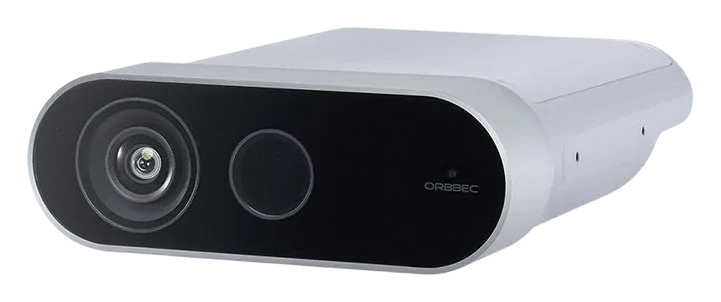

Femto Mega

About this product

Femto Mega combines Microsoft time-of-flight depth technology with an NVIDIA Jetson computer for programmable depth and RGB perception. It streams processed images through Ethernet or USB and supports PoE operation. Wide- and narrow-field depth modes, an IMU and synchronization make it suitable for robotics, manufacturing and logistics applications.

Model
Femto Mega
Category
Sensors and machine vision, Components
Product stage
Commercial

Specifications & evidence

Source-backed claims. Configuration, workload and evidence type matter when comparing products.

Data connection

USB 3.0 Type-C/Ethernet

Manufacturer specification

Femto Mega: ToF Depth Camera for Robotics | Orbbec
Data Connection USB 3.0 Type-C/Ethernet

Data output

Point Cloud, Depth Map, IR & RGB

Manufacturer specification

Femto Mega: ToF Depth Camera for Robotics | Orbbec
Data Output Point Cloud, Depth Map, IR & RGB

Depth fov

H 120° V 120° (WFOV), H 75° V 65° (NFOV)

Manufacturer specification

Femto Mega: ToF Depth Camera for Robotics | Orbbec
Depth FOV H 120° V 120° (WFOV), H 75° V 65° (NFOV)

Depth range

*0.25-5.46m (depending on depth mode)

Manufacturer specification

Femto Mega: ToF Depth Camera for Robotics | Orbbec
Depth Range *0.25-5.46m (depending on depth mode)

Depth resolution fps

Up to 1024X1024@15fps (WFOV), 640X576@30fps (NFOV)

Manufacturer specification

Femto Mega: ToF Depth Camera for Robotics | Orbbec
Depth Resolution/FPS Up to 1024X1024@15fps (WFOV), 640X576@30fps (NFOV)

Depth technology

Time of Flight

Manufacturer specification

Femto Mega: ToF Depth Camera for Robotics | Orbbec
Depth Technology Time of Flight

Dimensions w h d

*115mm x 40mm x 145mm

Manufacturer specification

Femto Mega: ToF Depth Camera for Robotics | Orbbec
Dimensions (W*H*D) *115mm x 40mm x 145mm

Imu

Supported

Manufacturer specification

Femto Mega: ToF Depth Camera for Robotics | Orbbec
IMU Supported

Operating environment

10℃ - 25℃; Indoor; 8-90%RH (non-condensing)

Manufacturer specification

Femto Mega: ToF Depth Camera for Robotics | Orbbec
Operating Environment 10℃ - 25℃; Indoor; 8-90%RH (non-condensing)

Power consumption

Average <13W

Manufacturer specification

Femto Mega: ToF Depth Camera for Robotics | Orbbec
Power Consumption Average <13W

Power input

USB 3.0 Type-C/PoE+/DC 12V/2A Power Adapter

Manufacturer specification

Femto Mega: ToF Depth Camera for Robotics | Orbbec
Power Input USB 3.0 Type-C/PoE+/DC 12V/2A Power Adapter

Release date

2023-01-04

Manufacturer specification

Configuration: Manufacturer launch announcement

CES 2023: Femto Mega Debut | Orbbec
Orbbec , a leading global 3D camera manufacturer, today announced the launch of its latest product, the Femto Mega, at CES 2023. Built in partnership with Microsoft, it is the first product of a new platform aimed at enabling easy access to 3D technology. It’s the industry’s highest resolution 3D camera with real-time streaming of processed images over ethernet or USB connections that makes it ideal for use in logistics, robotics, manufacturing, retail, healthcare and fitness solutions.

Rgb fov

H 80° V 51°

Manufacturer specification

Femto Mega: ToF Depth Camera for Robotics | Orbbec
RGB FOV H 80° V 51°

Rgb resolution fps

Up to 3840X2160@25fps

Manufacturer specification

Femto Mega: ToF Depth Camera for Robotics | Orbbec
RGB Resolution/FPS Up to 3840X2160@25fps

Sdk support

Orbbec SDK

Manufacturer specification

Femto Mega: ToF Depth Camera for Robotics | Orbbec
SDK Support Orbbec SDK

Wavelength

850 nm

Manufacturer specification

Femto Mega: ToF Depth Camera for Robotics | Orbbec
Wavelength 850nm

Weight

560 g

Manufacturer specification

Femto Mega: ToF Depth Camera for Robotics | Orbbec
Weight 560g
