Product details

PJ3-97EC140

Motion control and actuation

Leadshine

PJ3-97EC140

About this product

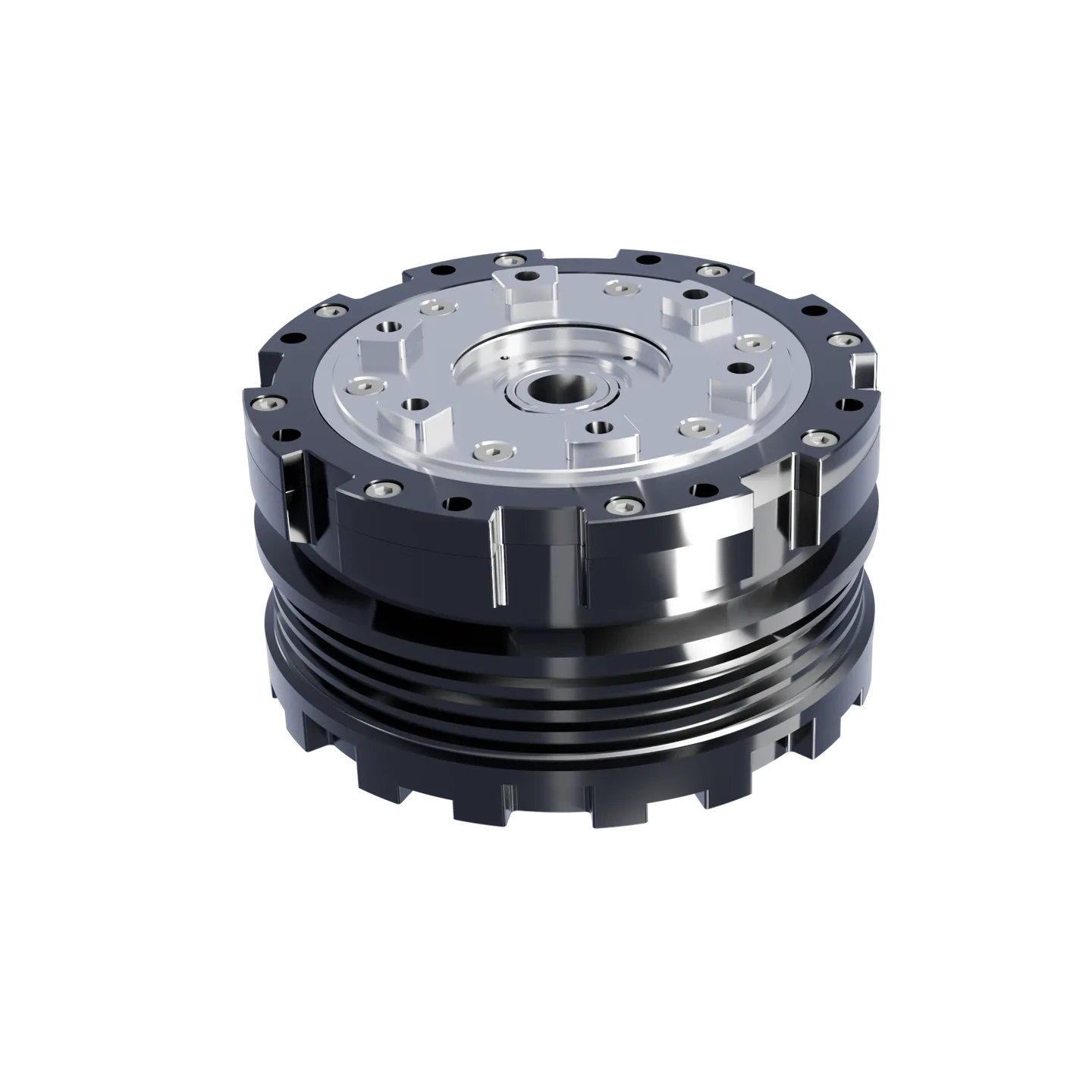

PJ3-97EC140 is a planetary integrated actuator from Leadshine with EtherCAT communication for robotic joints. It has a 22:1 gear ratio and a listed rated output torque of 44 N·m at 80 rpm, with 140 N·m instantaneous maximum torque. The manufacturer specifies a 24–48 VDC supply, IP54 protection and a mass of 1200 g.

Model
PJ3-97EC140
Category
Motion control and actuation, Components, Actuators & Joint Modules
Product stage
Commercial

Product family: Leadshine PJ3 Planetary Integrated Actuators

Specifications & evidence

Source-backed claims. Configuration, workload and evidence type matter when comparing products.

Communication interface

EtherCAT

Manufacturer specification

Configuration: PJ3-97EC140; Manufacturer specification; not independently tested

PJ3-97EC140 97mm High-Torque Planetary Integrated Actuator , EtherCAT Communication Robot Joint Module
Communication Mode EtherCAT

Gear ratio

22 ratio

Manufacturer specification

Configuration: PJ3-97EC140; Manufacturer specification; not independently tested

PJ3-97EC140 97mm High-Torque Planetary Integrated Actuator , EtherCAT Communication Robot Joint Module
Gear Ratio 22

Ingress protection

IP54

Manufacturer specification

Configuration: PJ3-97EC140; Manufacturer specification; not independently tested

PJ3-97EC140 97mm High-Torque Planetary Integrated Actuator , EtherCAT Communication Robot Joint Module
IP Level IP54

Instantaneous maximum torque

140 N·m

Manufacturer specification

Configuration: PJ3-97EC140; Manufacturer specification; not independently tested; Instantaneous maximum torque; duration not specified; not a continuous rating.

PJ3-97EC140 97mm High-Torque Planetary Integrated Actuator , EtherCAT Communication Robot Joint Module
Instantaneous Maximum Torque (N·m) 140

Length

61.7 ± 0.5 mm

Manufacturer specification

Configuration: PJ3-97EC140; Manufacturer specification; not independently tested; Manufacturer tolerance ±0.5 mm.

PJ3-97EC140 97mm High-Torque Planetary Integrated Actuator , EtherCAT Communication Robot Joint Module
Length (mm) 61.7±0.5

Mass

1,200 g

Manufacturer specification

Configuration: PJ3-97EC140; Manufacturer specification; not independently tested

PJ3-97EC140 97mm High-Torque Planetary Integrated Actuator , EtherCAT Communication Robot Joint Module
Weight (g) 1200

Maximum speed

130 rpm

Manufacturer specification

Configuration: PJ3-97EC140; Manufacturer specification; not independently tested

PJ3-97EC140 97mm High-Torque Planetary Integrated Actuator , EtherCAT Communication Robot Joint Module
Maximum Speed (RPM) 130

Rated speed

80 rpm

Manufacturer specification

Configuration: PJ3-97EC140; Manufacturer specification; not independently tested

PJ3-97EC140 97mm High-Torque Planetary Integrated Actuator , EtherCAT Communication Robot Joint Module
Rated Speed (RPM) 80

Rated torque

44 N·m

Manufacturer specification

Configuration: PJ3-97EC140; Manufacturer specification; not independently tested

PJ3-97EC140 97mm High-Torque Planetary Integrated Actuator , EtherCAT Communication Robot Joint Module
Rated Torque (N·m) 44

Supply voltage

24–48 V DC

Manufacturer specification

Configuration: PJ3-97EC140; Manufacturer specification; not independently tested; Published DC supply range; endpoint inclusivity not stated.

PJ3-97EC140 97mm High-Torque Planetary Integrated Actuator , EtherCAT Communication Robot Joint Module
Supply Voltage (VDC) 24-48

Through hole diameter

7.5 mm

Manufacturer specification

Configuration: PJ3-97EC140; Manufacturer specification; not independently tested; Through-hole size as labeled by the manufacturer.

PJ3-97EC140 97mm High-Torque Planetary Integrated Actuator , EtherCAT Communication Robot Joint Module
Through Hole (mm) 7.5
