Product details

Astra Embedded S

Sensors and machine vision

Orbbec Inc.

Astra Embedded S

About this product

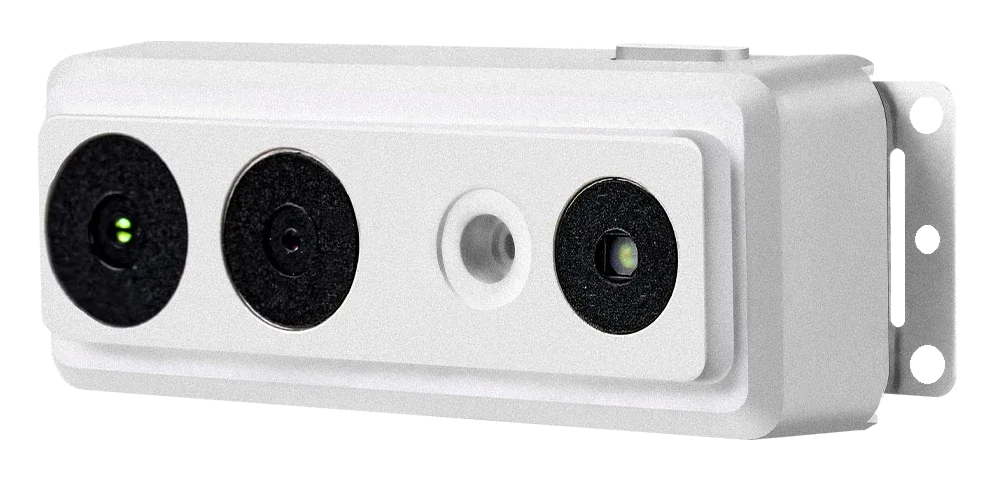

Astra Embedded S is a compact structured-light RGB-D camera for close-range embedded perception. It combines an Orbbec depth ASIC, USB-C power and data and high-frame-rate depth sensing. The exact model is supported by Orbbec OpenNI SDK and its ROS wrappers. Marketing ended in September 2025.

Model
Astra Embedded S
Category
Sensors and machine vision, Components
Product stage
Discontinued

Specifications & evidence

Source-backed claims. Configuration, workload and evidence type matter when comparing products.

Data connection

USB 3.0 Type-C

Manufacturer specification

Astra Embedded S: Structured Light for Embedded AI
Data Connection USB 3.0 Type-C

Data output

Point Cloud, Depth Map, IR & RGB

Manufacturer specification

Astra Embedded S: Structured Light for Embedded AI
Data Output Point Cloud, Depth Map, IR & RGB

Depth fov

H67.9° V45.3°

Manufacturer specification

Astra Embedded S: Structured Light for Embedded AI
Depth FOV H67.9° V45.3°

Depth range

*0.25-1.5m

Manufacturer specification

Astra Embedded S: Structured Light for Embedded AI
Depth Range *0.25-1.5m

Depth resolution fps

Up to 1280X800@30fps

Manufacturer specification

Astra Embedded S: Structured Light for Embedded AI
Depth Resolution/FPS Up to 1280X800@30fps

Depth technology

Structured Light

Manufacturer specification

Astra Embedded S: Structured Light for Embedded AI
Depth Technology Structured Light

Dimensions w h d

69mm x 22.9mm x 15mm

Manufacturer specification

Astra Embedded S: Structured Light for Embedded AI
Dimensions (W*H*D) 69mm x 22.9mm x 15mm

End of marketing

2025-09-30

Manufacturer specification

Configuration: Manufacturer lifecycle notice

new-orbbec3d-s3.s3.amazonaws.com-wp-content-uploads-2025-02-25100102-Astra-Embedded-S-EOL-Announcement.pdf
EOL No.: EOL_20250220005 EOL Announcement for Astra Embedded S Dear customers: In order to better assist you in addressing market changes and the challenges of technological innovation, Orbbec Optical has provided the key lifecycle milestone points for the Astra Embedded S. We hope this information will serve as a reference for your future product planning and development. Orbbec Inc. February 20, 2025 Milestone Date Remark EOL announcement 2025-02-20 EOL publicity date EOM 2025-09-30 End of Marketing. The EOM date is the date when the product stops accepting orders, including orders for new sites and capacity expansion. After that date, the product will no longer be sold. EOS 2027-09-30 End of Service & Support. It refers to the last date of the service. After the EOS date, Orbbec does not provide any service for the product . Including software and hardware problem support and update. Replacement product End of Life product Replacement product Astra Embedded S Currently, there is no fully compatible alternative product available. Customers with related needs may contact the Orbbec’s sales, product, and FAE teams for evaluation and Recommendations on suitable replacement products.

End of support

2027-09-30

Manufacturer specification

Configuration: Manufacturer lifecycle notice

new-orbbec3d-s3.s3.amazonaws.com-wp-content-uploads-2025-02-25100102-Astra-Embedded-S-EOL-Announcement.pdf
EOL No.: EOL_20250220005 EOL Announcement for Astra Embedded S Dear customers: In order to better assist you in addressing market changes and the challenges of technological innovation, Orbbec Optical has provided the key lifecycle milestone points for the Astra Embedded S. We hope this information will serve as a reference for your future product planning and development. Orbbec Inc. February 20, 2025 Milestone Date Remark EOL announcement 2025-02-20 EOL publicity date EOM 2025-09-30 End of Marketing. The EOM date is the date when the product stops accepting orders, including orders for new sites and capacity expansion. After that date, the product will no longer be sold. EOS 2027-09-30 End of Service & Support. It refers to the last date of the service. After the EOS date, Orbbec does not provide any service for the product . Including software and hardware problem support and update. Replacement product End of Life product Replacement product Astra Embedded S Currently, there is no fully compatible alternative product available. Customers with related needs may contact the Orbbec’s sales, product, and FAE teams for evaluation and Recommendations on suitable replacement products.

Imu

N/A

Manufacturer specification

Astra Embedded S: Structured Light for Embedded AI
IMU N/A

Operating environment

10℃ - 40℃; Indoor; 10%-85%RH

Manufacturer specification

Astra Embedded S: Structured Light for Embedded AI
Operating Environment 10℃ - 40℃; Indoor; 10%-85%RH

Power consumption

Average <2.2W

Manufacturer specification

Astra Embedded S: Structured Light for Embedded AI
Power Consumption Average <2.2W

Power input

USB 3.0 Type-C

Manufacturer specification

Astra Embedded S: Structured Light for Embedded AI
Power Input USB 3.0 Type-C

Rgb fov

H71.5° V56.7°

Manufacturer specification

Astra Embedded S: Structured Light for Embedded AI
RGB FOV H71.5° V56.7°

Rgb resolution fps

Up to 1920X1080@30fps

Manufacturer specification

Astra Embedded S: Structured Light for Embedded AI
RGB Resolution/FPS Up to 1920X1080@30fps

Sdk support

Orbbec OpenNI SDK

Manufacturer specification

Astra Embedded S: Structured Light for Embedded AI
SDK Support Orbbec OpenNI SDK

Wavelength

940 nm

Manufacturer specification

Astra Embedded S: Structured Light for Embedded AI
Wavelength 940nm

Weight

27 g

Manufacturer specification

Astra Embedded S: Structured Light for Embedded AI
Weight 27g
