Product details

Astra+

Sensors and machine vision

Orbbec Inc.

Astra+

About this product

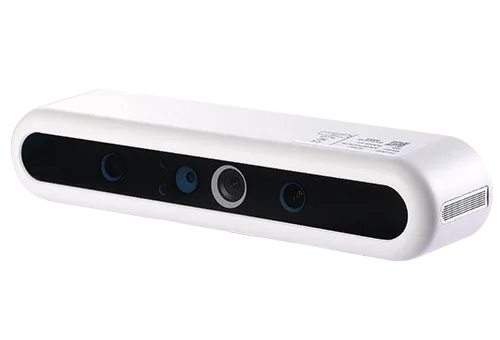

Astra+ is a legacy structured-light depth and RGB camera with USB 3.0 connectivity. It offers onboard depth processing for indoor vision applications and is explicitly supported by Orbbec's ROS 2 wrapper on its older branch. Marketing ended in May 2026.

Model
Astra+
Category
Sensors and machine vision, Components
Product stage
Discontinued

Specifications & evidence

Source-backed claims. Configuration, workload and evidence type matter when comparing products.

Data connection

USB 3.0 Type-C

Manufacturer specification

Orbbec Astra+: Budget Structured Light Camera
Data Connection USB 3.0 Type-C

Data output

Point Cloud, Depth Map, IR & RGB

Manufacturer specification

Orbbec Astra+: Budget Structured Light Camera
Data Output Point Cloud, Depth Map, IR & RGB

Depth fov

H58.4° V45.5°

Manufacturer specification

Orbbec Astra+: Budget Structured Light Camera
Depth FOV H58.4° V45.5°

Depth range

*0.6-8m

Manufacturer specification

Orbbec Astra+: Budget Structured Light Camera
Depth Range *0.6-8m

Depth resolution fps

Up to 1280X1024@30fps, 640X480@30fps

Manufacturer specification

Orbbec Astra+: Budget Structured Light Camera
Depth Resolution/FPS Up to 1280X1024@30fps, 640X480@30fps

Depth technology

Structured Light

Manufacturer specification

Orbbec Astra+: Budget Structured Light Camera
Depth Technology Structured Light

Dimensions w h d

178mm x 35mm x 38mm

Manufacturer specification

Orbbec Astra+: Budget Structured Light Camera
Dimensions (W*H*D) 178mm x 35mm x 38mm

End of marketing

2026-05-30

Manufacturer specification

Configuration: Manufacturer lifecycle notice

new-orbbec3d-s3.s3.amazonaws.com-wp-content-uploads-2025-12-30061223-Astra-EOL-Announcement.pdf
EOL Announcement for Astra+ Dear customers: In order to better assist you in addressing market changes and the challenges of technological innovation, Orbbec Optical has provided the key lifecycle milestone points for the Astra+ . We hope this information will serve as a reference for your future product planning and development. Orbbec Inc. December 15, 2025 Milestone Date Remark EOL announcement 2025-12-15 EOL publicity date EOM 2026-05-30 End of Marketing. The EOM date is the date when the product stops accepting orders, including orders for new sites and capacity expansion. After that date, the product will no longer be sold. EOS 2028-05-30 End of Service & Support. It refers to the last date of the service. After the EOS date, Orbbec does not provide any service for the product. Including software and hardware problem support and update. Replacement product End of Life product Replacement product Astra+ Astra Pro 2/Astra 2 /Gemini 330series

End of support

2028-05-30

Manufacturer specification

Configuration: Manufacturer lifecycle notice

new-orbbec3d-s3.s3.amazonaws.com-wp-content-uploads-2025-12-30061223-Astra-EOL-Announcement.pdf
EOL Announcement for Astra+ Dear customers: In order to better assist you in addressing market changes and the challenges of technological innovation, Orbbec Optical has provided the key lifecycle milestone points for the Astra+ . We hope this information will serve as a reference for your future product planning and development. Orbbec Inc. December 15, 2025 Milestone Date Remark EOL announcement 2025-12-15 EOL publicity date EOM 2026-05-30 End of Marketing. The EOM date is the date when the product stops accepting orders, including orders for new sites and capacity expansion. After that date, the product will no longer be sold. EOS 2028-05-30 End of Service & Support. It refers to the last date of the service. After the EOS date, Orbbec does not provide any service for the product. Including software and hardware problem support and update. Replacement product End of Life product Replacement product Astra+ Astra Pro 2/Astra 2 /Gemini 330series

Imu

N/A

Manufacturer specification

Orbbec Astra+: Budget Structured Light Camera
IMU N/A

Operating environment

0℃ - 40℃; Indoor; 10%-85%RH(non-condensing)

Manufacturer specification

Orbbec Astra+: Budget Structured Light Camera
Operating Environment 0℃ - 40℃; Indoor; 10%-85%RH(non-condensing)

Power consumption

Average <3.5W

Manufacturer specification

Orbbec Astra+: Budget Structured Light Camera
Power Consumption Average <3.5W

Power input

USB 3.0 Type-C

Manufacturer specification

Orbbec Astra+: Budget Structured Light Camera
Power Input USB 3.0 Type-C

Rgb fov

H69.2° V52°

Manufacturer specification

Orbbec Astra+: Budget Structured Light Camera
RGB FOV H69.2° V52°

Rgb resolution fps

Up to 1920X1080@30fps

Manufacturer specification

Orbbec Astra+: Budget Structured Light Camera
RGB Resolution/FPS Up to 1920X1080@30fps

Sdk support

Orbbec SDK

Manufacturer specification

Orbbec Astra+: Budget Structured Light Camera
SDK Support Orbbec SDK

Wavelength

850 nm

Manufacturer specification

Orbbec Astra+: Budget Structured Light Camera
Wavelength 850nm

Weight

250 g

Manufacturer specification

Orbbec Astra+: Budget Structured Light Camera
Weight 250g
