MC1226

Components

ZHAOWEI

MC1226

About this product

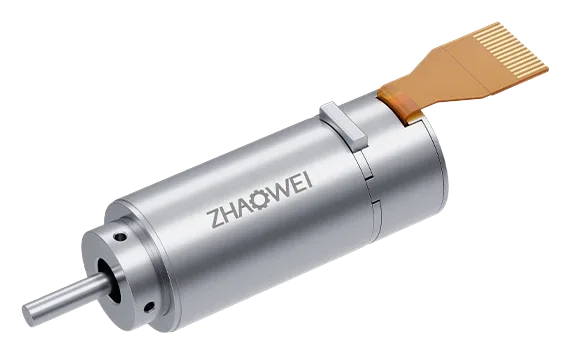

Brushless coreless motor with a 12 mm diameter for miniature drive assemblies. ZHAOWEI provides model-specific electrical data and mechanical drawings for integration.

Model
MC1226
Category
Components, Motion control and actuation

Specifications & evidence

Source-backed claims. Configuration, workload and evidence type matter when comparing products.

Ambient temperature

-20~+100 °C

Manufacturer specification

Configuration: MC1226, 12 V winding; Manufacturer thermal table.

12mm无刷空心杯电机_微型无刷直流电机_无槽无刷电机-ZHAOWEI
环境温度(℃) -20~+100

Connector model options

Molex 52745-1297

Manufacturer specification

Configuration: MC1226

12mm无刷空心杯电机_微型无刷直流电机_无槽无刷电机-ZHAOWEI
端子型号 Molex 52745-1297

Housing to ambient thermal resistance

38.6 K/W

Manufacturer specification

Configuration: MC1226, 12 V winding; Manufacturer thermal table.

12mm无刷空心杯电机_微型无刷直流电机_无槽无刷电机-ZHAOWEI
机壳-环境热阻(K/W) 38.6

Maximum axial dynamic load

2 N

Manufacturer specification

Configuration: MC1226; Ball-bearing mechanical specification.

12mm无刷空心杯电机_微型无刷直流电机_无槽无刷电机-ZHAOWEI
最大轴向动态载荷(N) 2

Maximum axial play

0 at axial force < 0.15 N mm

Manufacturer specification

Configuration: MC1226; Ball-bearing mechanical specification. Applied axial-force threshold is preserved in the value.

12mm无刷空心杯电机_微型无刷直流电机_无槽无刷电机-ZHAOWEI
最大轴向间隙(mm) < 0.15 N   0

Maximum axial play 2

0.06 at axial force > 0.15 N (maximum) mm

Manufacturer specification

Configuration: MC1226; Ball-bearing mechanical specification. Applied axial-force threshold is preserved in the value.

12mm无刷空心杯电机_微型无刷直流电机_无槽无刷电机-ZHAOWEI
> 0.15 N   0.06(max)

Maximum efficiency

67 %

Manufacturer specification

Configuration: MC1226, 12 V winding; Manufacturer rated-data table.

12mm无刷空心杯电机_微型无刷直流电机_无槽无刷电机-ZHAOWEI
最大效率(%) 67

Maximum permissible speed

40 000 rpm

Manufacturer specification

Configuration: MC1226; Ball-bearing mechanical specification.

12mm无刷空心杯电机_微型无刷直流电机_无槽无刷电机-ZHAOWEI
最大允许转速(rpm) 40 000

Maximum permissible static installation force

10 N

Manufacturer specification

Configuration: MC1226; Ball-bearing mechanical specification.

12mm无刷空心杯电机_微型无刷直流电机_无槽无刷电机-ZHAOWEI
最大允许安静态装力(N) 10

Maximum radial load

5 N

Manufacturer specification

Configuration: MC1226; Ball-bearing mechanical specification. Load applied 2 mm from flange, as specified.

12mm无刷空心杯电机_微型无刷直流电机_无槽无刷电机-ZHAOWEI
最大径向载荷,距离法兰处2mm处(N) 5

Maximum winding temperature

125 °C

Manufacturer specification

Configuration: MC1226, 12 V winding; Manufacturer thermal table.

12mm无刷空心杯电机_微型无刷直流电机_无槽无刷电机-ZHAOWEI
最高绕组温度(℃) +125

Mechanical time constant

4.5 ms

Manufacturer specification

Configuration: MC1226, 12 V winding; Manufacturer rated-data table.

12mm无刷空心杯电机_微型无刷直流电机_无槽无刷电机-ZHAOWEI
机械时间常数(ms) 4.5

Motor diameter

12 mm

Manufacturer specification

Configuration: MC1226

12mm无刷空心杯电机_微型无刷直流电机_无槽无刷电机-ZHAOWEI
直径(mm): 12

Motor length

26 mm

Manufacturer specification

Configuration: MC1226

12mm无刷空心杯电机_微型无刷直流电机_无槽无刷电机-ZHAOWEI
长度(mm): 26

Motor thermal time constant

210 s

Manufacturer specification

Configuration: MC1226, 12 V winding; Manufacturer thermal table.

12mm无刷空心杯电机_微型无刷直流电机_无槽无刷电机-ZHAOWEI
电机热时间常数(s) 210

No load current

78 A

Manufacturer specification

Configuration: MC1226, 12 V winding; Manufacturer rated-data table.

12mm无刷空心杯电机_微型无刷直流电机_无槽无刷电机-ZHAOWEI
空载电流(A) 78

No load speed

28,600 rpm

Manufacturer specification

Configuration: MC1226, 12 V winding; Manufacturer rated-data table.

12mm无刷空心杯电机_微型无刷直流电机_无槽无刷电机-ZHAOWEI
空载转速(rpm) 28600

Output shaft diameter

0.8 mm

Manufacturer specification

Configuration: MC1226

12mm无刷空心杯电机_微型无刷直流电机_无槽无刷电机-ZHAOWEI
输出轴直径(mm): 0.8

Phase to phase inductance

0.042 mH

Manufacturer specification

Configuration: MC1226, 12 V winding; Manufacturer rated-data table.

12mm无刷空心杯电机_微型无刷直流电机_无槽无刷电机-ZHAOWEI
相间电感(mH) 0.042

Phase to phase resistance

5.3 Ω

Manufacturer specification

Configuration: MC1226, 12 V winding; Manufacturer rated-data table.

12mm无刷空心杯电机_微型无刷直流电机_无槽无刷电机-ZHAOWEI
相间电阻(Ω) 5.3

Radial play

preloaded

Manufacturer specification

Configuration: MC1226; Ball-bearing mechanical specification.

12mm无刷空心杯电机_微型无刷直流电机_无槽无刷电机-ZHAOWEI
径向间隙 preloaded

Rated current

0.69 A

Manufacturer specification

Configuration: MC1226, 12 V winding; Manufacturer rated-data table.

12mm无刷空心杯电机_微型无刷直流电机_无槽无刷电机-ZHAOWEI
额定电流(A) 0.69

Rated speed

20,970 rpm

Manufacturer specification

Configuration: MC1226, 12 V winding; Manufacturer rated-data table.

12mm无刷空心杯电机_微型无刷直流电机_无槽无刷电机-ZHAOWEI
额定转速 (rpm) 20970

Rated torque

2.38 mN·m

Manufacturer specification

Configuration: MC1226, 12 V winding; Manufacturer rated-data table.

12mm无刷空心杯电机_微型无刷直流电机_无槽无刷电机-ZHAOWEI
额定转矩(mNm) 2.38

Rated voltage

12 V

Manufacturer specification

Configuration: MC1226, 12 V winding; Manufacturer rated-data table.

12mm无刷空心杯电机_微型无刷直流电机_无槽无刷电机-ZHAOWEI
额定电压(V) 12

Rotor inertia

0.138 g·cm²

Manufacturer specification

Configuration: MC1226, 12 V winding; Manufacturer rated-data table.

12mm无刷空心杯电机_微型无刷直流电机_无槽无刷电机-ZHAOWEI
转子惯量(gcm2) 0.138

Speed constant

2,383 rpm/V

Manufacturer specification

Configuration: MC1226, 12 V winding; Manufacturer rated-data table.

12mm无刷空心杯电机_微型无刷直流电机_无槽无刷电机-ZHAOWEI
速度常数(rpm/V) 2383

Speed torque gradient

3,213 rpm/mN·m

Manufacturer specification

Configuration: MC1226, 12 V winding; Manufacturer rated-data table.

12mm无刷空心杯电机_微型无刷直流电机_无槽无刷电机-ZHAOWEI
转速/转矩斜度(rpm/mNm) 3213

Stall current

2.38 A

Manufacturer specification

Configuration: MC1226, 12 V winding; Manufacturer rated-data table.

12mm无刷空心杯电机_微型无刷直流电机_无槽无刷电机-ZHAOWEI
堵转电流(A) 2.38

Stall torque

8.9 mN·m

Manufacturer specification

Configuration: MC1226, 12 V winding; Manufacturer rated-data table.

12mm无刷空心杯电机_微型无刷直流电机_无槽无刷电机-ZHAOWEI
堵转转矩(mNm) 8.9

Torque constant

3.87 mN·m/A

Manufacturer specification

Configuration: MC1226, 12 V winding; Manufacturer rated-data table.

12mm无刷空心杯电机_微型无刷直流电机_无槽无刷电机-ZHAOWEI
转矩常数(mNm/A) 3.87

Winding thermal time constant

3.2 s

Manufacturer specification

Configuration: MC1226, 12 V winding; Manufacturer thermal table.

12mm无刷空心杯电机_微型无刷直流电机_无槽无刷电机-ZHAOWEI
绕组热时间常数(s) 3.2

Winding to housing thermal resistance

7.5 K/W

Manufacturer specification

Configuration: MC1226, 12 V winding; Manufacturer thermal table.

12mm无刷空心杯电机_微型无刷直流电机_无槽无刷电机-ZHAOWEI
绕组-机壳热阻(K/W) 7.5
