Product details

RDK S100

Components

D-Robotics

RDK S100

About this product

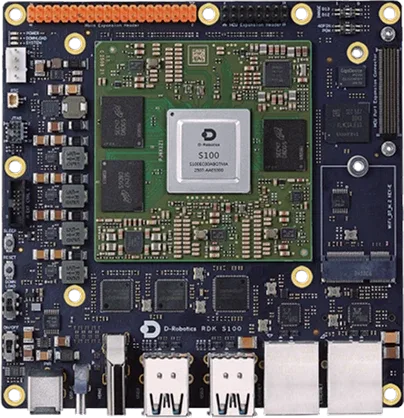

RDK S100 is a development kit for robot perception and real-time control. It combines six Cortex-A78AE CPU cores, an 80 TOPS BPU, 12 GB of LPDDR5 memory and four Cortex-R52+ real-time MCU cores. Camera interfaces, USB, Ethernet, CAN and MCU expansion support multi-sensor robot prototypes. This entry covers the S100 model; the higher-performance S100P is a separate model.

Model
RDK S100
Category
Components, Robot Control Boards and Computing Components

Specifications & evidence

Source-backed claims. Configuration, workload and evidence type matter when comparing products.

Ai performance

80 TOPS

Manufacturer specification

Qualifier: Manufacturer stated BPU capability; no unstated benchmark, precision or runtime assumed.

drobotics-official-portfolio-dates
RDK S100 provides 6×Cortex-A78AE @1.5GHz, 12GB LPDDR5, and 80 TOPS.

Camera interface

3 × 4-lane MIPI signals; 2 × ISP

Manufacturer specification

Qualifier: Development kit column; not SIP pinout.

drobotics-official-portfolio-dates
Vision 3×4-lane MIPI signals and 2×ISP Shares platform vision capability; refer to SIP pinout

Cpu

Six Arm Cortex-A78AE cores at 1.5 GHz

Manufacturer specification

drobotics-official-portfolio-dates
RDK S100 provides 6×Cortex-A78AE @1.5GHz, 12GB LPDDR5, and 80 TOPS.

Dimensions

120 × 121 × 51 mm

Manufacturer specification

Qualifier: Development kit dimensions.

drobotics-official-portfolio-dates
RDK S100 / S100P 80 / 128 TOPS heterogeneous robot development kits 120×121×51 mm RDK S100 in-stock sale in Jun 2025

Ethernet

2 × Gigabit Ethernet

Manufacturer specification

Qualifier: Development kit physical interfaces.

drobotics-official-portfolio-dates
Key I/O 4×USB3 Host, 1×USB2 Device, 2×GbE MIPI, USB, CAN, and MCU I/O depend on pinout and carrier

Mcu expansion

5 × CAN FD plus I2C / SPI / UART / PWM / GPIO

Manufacturer specification

Qualifier: Development kit expansion resources.

drobotics-official-portfolio-dates
MCU expansion 5×CAN FD plus I2C/SPI/UART/PWM/GPIO Shares platform MCU capability; exposed I/O depends on design docs

Media capability

Up to 4K at 90 fps

Manufacturer specification

Qualifier: Manufacturer stated ceiling; codec, stream count and encode/decode split are not specified here.

drobotics-official-portfolio-dates
Both integrate 4×Cortex-R52+ MCUs, 2×ISP, and media capability up to 4K@90.

Memory

12 GB LPDDR5

Manufacturer specification

drobotics-official-portfolio-dates
RDK S100 provides 6×Cortex-A78AE @1.5GHz, 12GB LPDDR5, and 80 TOPS.

Real time mcu

4 × Arm Cortex-R52+ cores

Manufacturer specification

Qualifier: Explicitly shared by S100 and S100P.

drobotics-official-portfolio-dates
Both integrate 4×Cortex-R52+ MCUs, 2×ISP, and media capability up to 4K@90.

Release date

2025-06

Manufacturer specification

Date precision: month; Event: commercial release; Qualifier: Manufacturer retrospective portfolio explicitly identifies release/sale month; no exact day inferred.

drobotics-official-portfolio-dates
RDK S100 / S100P 80 / 128 TOPS heterogeneous robot development kits 120×121×51 mm RDK S100 in-stock sale in Jun 2025

Usb interfaces

4 × USB 3 Host; 1 × USB 2 Device

Manufacturer specification

Qualifier: Development kit physical interfaces.

drobotics-official-portfolio-dates
Key I/O 4×USB3 Host, 1×USB2 Device, 2×GbE MIPI, USB, CAN, and MCU I/O depend on pinout and carrier
