Product details

Physis 157g

Sensors and machine vision

Orbbec Inc.

Physis 157g

About this product

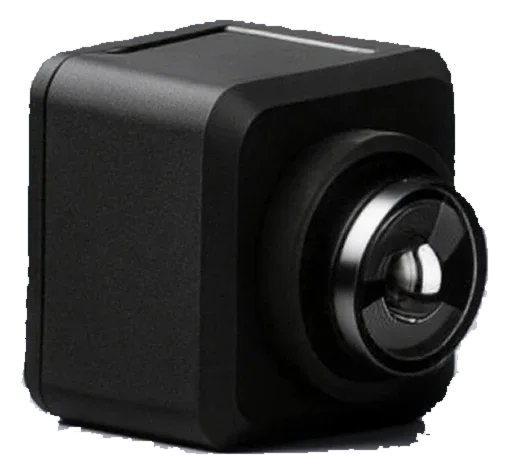

Physis 157g is a compact global-shutter RGB camera for robot perception. It shares the Physis imaging architecture, synchronization framework and software design, allowing additional robot viewpoints to use a common timing and imaging reference. Its GMSL2 connection and IP67 enclosure support integration into humanoids and collaborative robots.

Model
Physis 157g
Category
Sensors and machine vision, Components
Product stage
Commercial

Specifications & evidence

Source-backed claims. Configuration, workload and evidence type matter when comparing products.

Data interface

GMSL2

Manufacturer specification

Configuration: Exact Physis 157g column of manufacturer visual specification table; manually verified.

Orbbec Physis 257g and Physis 157g specification table
数据接口 GMSL2

Dimensions

33×33×41.56 mm

Manufacturer specification

Configuration: Exact Physis 157g column of manufacturer visual specification table; manually verified.

Orbbec Physis 257g and Physis 157g specification table
尺寸 33 x 33 x 41.56mm

Ingress protection

IP67

Manufacturer specification

Configuration: Exact Physis 157g column of manufacturer visual specification table; manually verified.

Orbbec Physis 257g and Physis 157g specification table
IP等级 IP67

Operating environment

Indoor and outdoor

Manufacturer specification

Configuration: Exact Physis 157g column of manufacturer visual specification table; manually verified.

Orbbec Physis 257g and Physis 157g specification table
工作环境 Indoor & Outdoor

Operating temperature

-30 to 65 °C

Manufacturer specification

Configuration: Exact Physis 157g column of manufacturer visual specification table; manually verified.

Orbbec Physis 257g and Physis 157g specification table
工作温度 -30 ~ 65 °C

Power consumption

Average <1.2 W

Manufacturer specification

Configuration: Exact Physis 157g column of manufacturer visual specification table; manually verified.

Orbbec Physis 257g and Physis 157g specification table
功耗 Average < 1.2w

Power input

DC 12 V

Manufacturer specification

Configuration: Exact Physis 157g column of manufacturer visual specification table; manually verified.

Orbbec Physis 257g and Physis 157g specification table
供电要求 DC 12V

Release date

2026-08-19

Manufacturer specification

Configuration: Manufacturer launch announcement

让具身数据可规模采集,让具身视觉更贴近人眼,奥比中光WRC发布两大系列新品
2026.08.19  orbbec 8月19日,在北京举办的2026世界机器人大会(WRC)首日,奥比中光举行 「多维感知」 新品发布会, 无本体数据采集硬件矩阵首次集中亮相 ,机器人视觉新品Physis系列正式发布。 这也是奥比中光基于10余年机器人与AI视觉技术积累,进一步向物理AI两大基础设施延伸的重要一步:一端,以全模态无本体数据采集平台打造具身数据硬件基座,让高质量真实交互数据更高效地进入模型训练与机器人验证;一端,以Physis为具身智能系统提供贴近人类的视觉感知能力,在大视野、高质量成像、真实空间感知与高可靠性之间实现极致平衡。

Rgb fov

H120° × V90° ±3°

Manufacturer specification

Configuration: Exact Physis 157g column of manufacturer visual specification table; manually verified.

Orbbec Physis 257g and Physis 157g specification table
RGB图像FOV H 120° x V 90° ± 3°

Rgb resolution fps

1920×1200 at 60 fps

Manufacturer specification

Configuration: Exact Physis 157g column of manufacturer visual specification table; manually verified.

Orbbec Physis 257g and Physis 157g specification table
最大RGB分辨率@帧率 1920 x 1200 @ 60fps

Rgb shutter

Global shutter

Manufacturer specification

Configuration: Exact Physis 157g column of manufacturer visual specification table; manually verified.

Orbbec Physis 257g and Physis 157g specification table
曝光方式 Global Shutter

Supported platforms

NVIDIA Jetson Orin Nano/NX/AGX; Jetson Thor

Manufacturer specification

Configuration: Exact Physis 157g column of manufacturer visual specification table; manually verified.

Orbbec Physis 257g and Physis 157g specification table
平台支持 NVIDIA Jetson Orin Nano/NX/AGX, Jetson Thor

Weight

<65 g

Manufacturer specification

Configuration: Exact Physis 157g column of manufacturer visual specification table; manually verified.

Orbbec Physis 257g and Physis 157g specification table
重量 <65g
