Product details

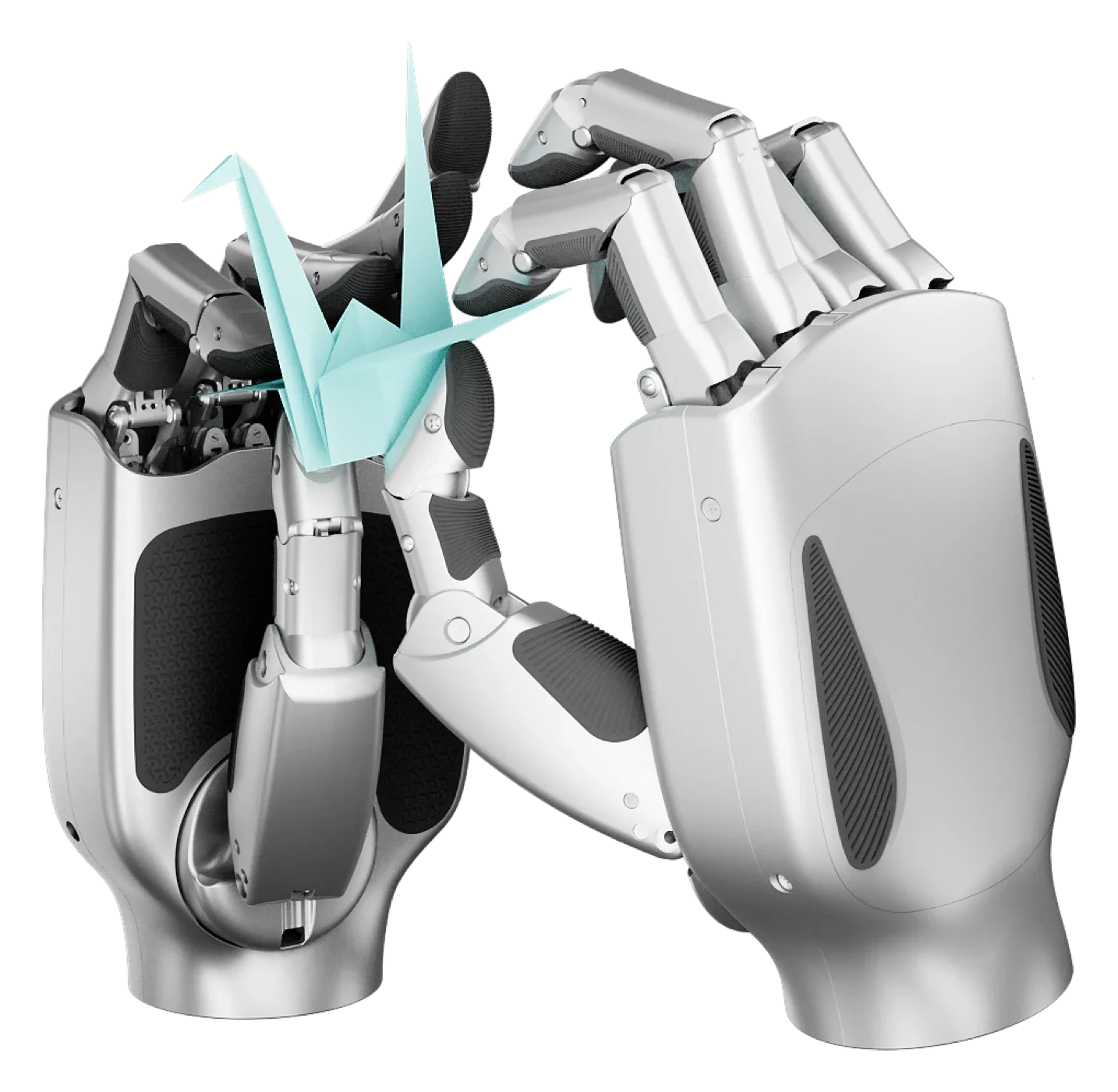

Linker Hand L20

Linker Hand L20 灵巧手

Dexterous Hand

LinkerBot

Linker Hand L20

About this product

Linker Hand L20 is LinkerBot's advanced linkage-driven hand for dexterous robotic manipulation. Its 21 degrees of freedom comprise 16 active and five passive axes, combining brushless motors, precision ball screws and rigid linkages. The manufacturer positions it for tasks that require coordinated five-finger movement and controlled grasping. The official specification lists an approximately 1.2 kg mass, CAN and RS485 interfaces, and ±0.2 mm repeatability. It is a distinct model from L20 Lite and the direct-drive O-series, with its own mechanism and performance specifications.

Model
Linker Hand L20
Category
Dexterous Hand

Specifications & evidence

Source-backed claims. Configuration, workload and evidence type matter when comparing products.

Active degrees of freedom

16

Manufacturer specification

灵心巧手
自由度:16个主自由度 + 5个被动自由度

Actuation

In-house joint modules

Manufacturer specification

Source section: Official product technical parameters

灵心巧手
驱动方式:自研关节模块

Communication interface

CAN/RS485

Manufacturer specification

Source section: Official product technical parameters

灵心巧手
控制接口:CAN/RS485

Degrees of freedom

16 active + 5 passive DOF

Manufacturer specification

Source section: Official product technical parameters

灵心巧手
自由度:16个主自由度 + 5个被动自由度

Finger fingertip force

20 N

Manufacturer specification

Source section: Official product technical parameters

灵心巧手
四指最大指尖力:20N

Finger flexion angle

1.22rad(69.9°)

Manufacturer specification

Source section: Official product technical parameters

灵心巧手
四指弯曲角度:1.22rad(69.9°)

Finger flexion speed

3.5rad/s(200.47°/s)

Manufacturer specification

Source section: Official product technical parameters

灵心巧手
四指弯曲速度:3.5rad/s(200.47°/s)

Grasp force

100 N

Manufacturer specification

Source section: Official product technical parameters

灵心巧手
五指最大抓握力:100N

Mass

≈1200g

Manufacturer specification

Source section: Official product technical parameters

灵心巧手
重量:≈1200g

Maximum current

1.8 A

Manufacturer specification

Source section: Official product technical parameters

灵心巧手
最大电流:1.8A

No load average current

0.4 A

Manufacturer specification

Source section: Official product technical parameters

灵心巧手
空载运动平均电流:0.4A

Operating voltage

DC 24V—48V

Manufacturer specification

Source section: Official product technical parameters

灵心巧手
工作电压:DC 24V—48V

Passive degrees of freedom

5

Manufacturer specification

灵心巧手
自由度:16个主自由度 + 5个被动自由度

Payload

20 kg

Manufacturer specification

Source section: Official product technical parameters

灵心巧手
最大负载:20kg

Quiescent current

0.3 A

Manufacturer specification

Source section: Official product technical parameters

灵心巧手
静态电流:0.3A

Repeatability

±0.20mm

Manufacturer specification

Source section: Official product technical parameters

灵心巧手
重复定位精度:±0.20mm

Thumb fingertip force

15 N

Manufacturer specification

Source section: Official product technical parameters

灵心巧手
拇指最大指尖力:15N

Thumb flexion speed

1.52rad/s(87.36°/s)

Manufacturer specification

Source section: Official product technical parameters

灵心巧手
拇指弯曲速度:1.52rad/s(87.36°/s)

Thumb lateral speed

3.2rad/s(193.59°/s)

Manufacturer specification

Source section: Official product technical parameters

灵心巧手
拇指侧摆速度:3.2rad/s(193.59°/s)

Thumb rotation range

1.32rad(75.78°)

Manufacturer specification

Source section: Official product technical parameters

灵心巧手
拇指旋转范围:1.32rad(75.78°)

Transmission mechanism

Linkage transmission

Manufacturer specification

Source section: Official product technical parameters

灵心巧手
传动方式:连杆传动
